1. Introduction
This manual provides essential information for the safe and efficient operation of your COTEK CX1250 3-Stage Advanced Battery Charger. Please read this manual thoroughly before installation and use to ensure proper function and to prevent damage to the unit or connected equipment.
The COTEK CX1250 is a sophisticated 12VDC, 50A battery charger designed for various battery types, including lead-acid, Li-ion, Gel, and AGM. It features a 3-stage charging mode, universal AC input with active Power Factor Correction (PFC), and multiple protection functions.
Image 1.1: Front view of the COTEK CX1250 3-Stage Advanced Battery Charger. The unit is blue and gray with the COTEK logo and model number visible on the top surface.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in injury, death, or damage to the charger and other property.
- Always disconnect AC power before making or breaking connections to the battery.
- Ensure adequate ventilation around the charger. Do not operate in enclosed spaces.
- Do not expose the charger to rain, moisture, or excessive dust.
- This charger is designed for indoor use only.
- Do not attempt to open or modify the charger. Refer all servicing to qualified personnel.
- Wear eye protection and protective clothing when working with batteries.
- Keep children away from the charger and batteries.
- Ensure the battery type selected on the charger matches the battery being charged.
- Avoid short-circuiting the battery terminals.
3. Product Features
The COTEK CX1250 battery charger incorporates several advanced features for optimal performance and reliability:
- Universal AC Input with Active PFC: Ensures efficient operation across a wide range of AC input voltages.
- Voltage Temperature Compensation: Adjusts charging voltage based on ambient temperature for improved battery life.
- Multi-Stage Charging Mode: Utilizes a 3-stage charging profile (Bulk, Absorption, Float) for thorough and safe charging.
- Battery Compatibility: Suitable for Lead Acid, Li-ion, Gel, and AGM batteries.
- Fan Speed Control: Features a 2-stage fan speed control, including a sleep mode for quiet operation.
- High Efficiency and Reliability: Designed for robust and dependable performance.
- Built-in Battery Rescue Function: Helps recover deeply discharged batteries.
- Engine Start Battery (ESB) Output Function: Provides a dedicated output for engine start batteries.
- Protection Features: Includes Short Circuit, Over Voltage, Over Temperature, and Brown-out protection.
- RS-232 Communication Protocol: Supports external communication for monitoring and control.
- Dry Contact for Alarm: Allows for external alarm integration.
- Durable Construction: Type 1 Indoor Aluminum Enclosure, designed to withstand 2G vibration tests.
- CE Approved: Meets European safety standards.
4. Setup and Installation
Before installation, ensure the charger is placed in a well-ventilated area, away from direct sunlight, heat sources, and flammable materials. The charger should be mounted securely.
4.1 Connecting the Battery Charger
- Mounting: Secure the charger to a stable surface using appropriate fasteners. Refer to the mechanical drawings for mounting dimensions.
- Battery Type Selection: Use the DIP switches on the unit to select the correct battery type (Lead Acid, Li-ion, Gel, AGM) and charging voltage settings. Refer to the specifications table for specific settings.
- Battery Connection:
- Connect the positive (+) output terminal of the charger to the positive (+) terminal of the battery.
- Connect the negative (-) output terminal of the charger to the negative (-) terminal of the battery.
- Ensure all connections are tight and secure.
- AC Power Connection: Connect the AC input cord to a grounded AC power outlet. The charger supports universal AC input.
Image 4.1: Rear panel of the COTEK CX1250 charger showing the AC input, output terminals, DIP switches for settings, and communication ports.

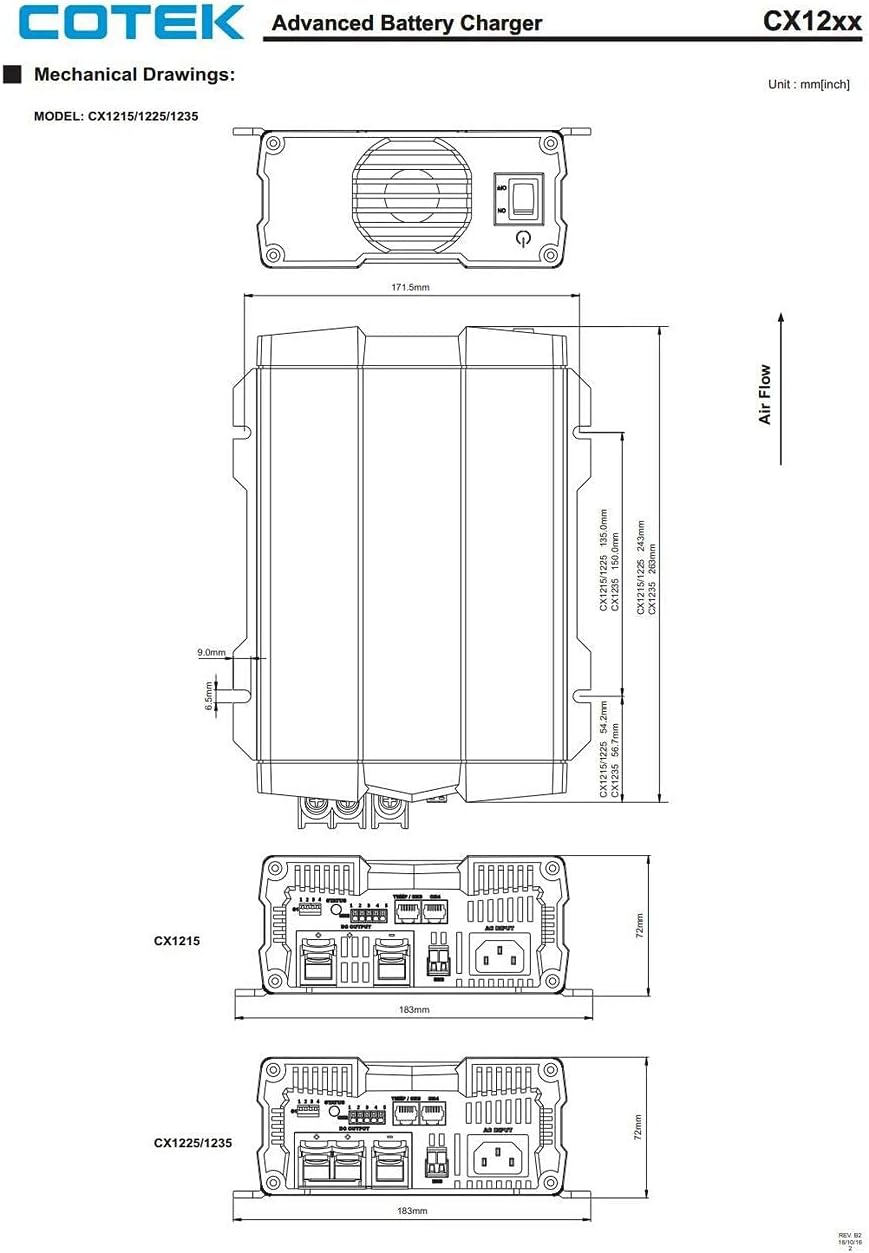

Image 4.2: Mechanical drawings illustrating the dimensions and mounting points for the COTEK CX12xx series battery chargers, including the CX1250 model.
5. Operating Instructions
Once the charger is properly installed and connected, it will automatically begin the charging process when AC power is applied.
5.1 Charging Process (3-Stage Mode)
The CX1250 utilizes an intelligent 3-stage charging algorithm to optimize battery charging and extend battery life:
- Bulk (Constant Current - CC): In this stage, the charger delivers maximum current to rapidly charge the battery until it reaches approximately 80% of its capacity. The voltage gradually increases during this stage.
- Absorption (Constant Voltage - CV): Once the battery voltage reaches the absorption level, the charger maintains a constant voltage while the current gradually decreases. This stage fully charges the battery to 100%.
- Float: After the absorption stage, the charger switches to a lower, constant float voltage. This stage maintains the battery at full charge and compensates for self-discharge, preventing overcharging.
Image 5.1: Diagram illustrating the three-stage charging curve (Bulk, Absorption, Float) with voltage and current profiles over time. It also shows a Recondition stage.
5.2 Fan Operation
The charger features a 2-stage fan speed control. The fan operates to maintain optimal internal temperature. In sleep mode, the fan speed is reduced for quieter operation.
Image 5.2: Side view of the COTEK CX1250 charger, highlighting the cooling fans and the main power switch.
6. Maintenance
The COTEK CX1250 charger is designed for minimal maintenance. However, regular checks can ensure its longevity and safe operation.
- Cleaning: Periodically clean the exterior of the charger with a dry, soft cloth. Ensure ventilation openings are free from dust and debris. Do not use liquid cleaners.
- Connections: Regularly check all electrical connections (AC input, battery terminals) to ensure they are tight and free from corrosion.
- Environment: Ensure the operating environment remains within the specified temperature and humidity ranges.
- Inspection: Inspect the charger and cables for any signs of damage, wear, or overheating. Replace damaged components immediately.
7. Troubleshooting
This section provides solutions to common issues you might encounter with your CX1250 charger. For problems not listed here, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger not turning on | No AC input power; Blown fuse; Internal fault. | Check AC power source and cable. Verify AC outlet functionality. Check for tripped circuit breakers. If problem persists, contact support. |
| Battery not charging | Incorrect battery connections; Incorrect battery type selection; Deeply discharged battery; Faulty battery. | Verify positive and negative connections. Check DIP switch settings for battery type. Allow time for battery rescue function if applicable. Test battery condition. |
| Over-temperature alarm | Insufficient ventilation; High ambient temperature; Blocked fan. | Ensure charger is in a well-ventilated area. Clear any obstructions from the fan vents. Reduce ambient temperature if possible. |
| Short circuit protection activated | Short circuit at output terminals or battery. | Disconnect charger from AC and battery. Inspect cables and terminals for short circuits. Correct the issue before reconnecting. |
8. Specifications
The following table details the technical specifications for the COTEK CX1250 3-Stage Advanced Battery Charger.
Image 8.1: Detailed specifications table for COTEK CX12xx series, including CX1250, covering input, output, protection, function, environment, and physical dimensions.
| Feature | Specification |
|---|---|
| Model | CX1250 |
| Input Voltage | Universal AC input (90-264VAC) |
| Output Voltage | 12VDC |
| Output Current | 50A |
| Charging Mode | 3-stage (IUoU) |
| Battery Types | Lead Acid, Li-ion, Gel, AGM |
| Efficiency | >87% |
| Protection | Short Circuit, Over Voltage, Over Temperature, Brown-out |
| Operating Temperature | -20°C to +60°C |
| Dimensions (L x W x H) | 12.76"D x 10.16"W x 5.51"H (324.2 x 258 x 140 mm) |
| Weight | 7 lbs (3.18 kg) |
| Certifications | CE |
9. Warranty and Support
For warranty information and technical support, please refer to the official COTEK website or contact your authorized dealer. Keep your purchase receipt as proof of purchase for warranty claims.
For further assistance, please visit: www.cotek.com.tw
