Introduction

This manual provides essential instructions for the setup, operation, and maintenance of your TAG Heuer Aquaracer Calibre S Chronograph Watch, model CAF7011.BA0815. Please read this guide carefully to ensure proper use and longevity of your timepiece.

The TAG Heuer Aquaracer Calibre S is a sophisticated Swiss automatic chronograph watch designed for precision and durability, featuring a stainless steel case and bracelet, sapphire crystal, and water resistance up to 300 meters.

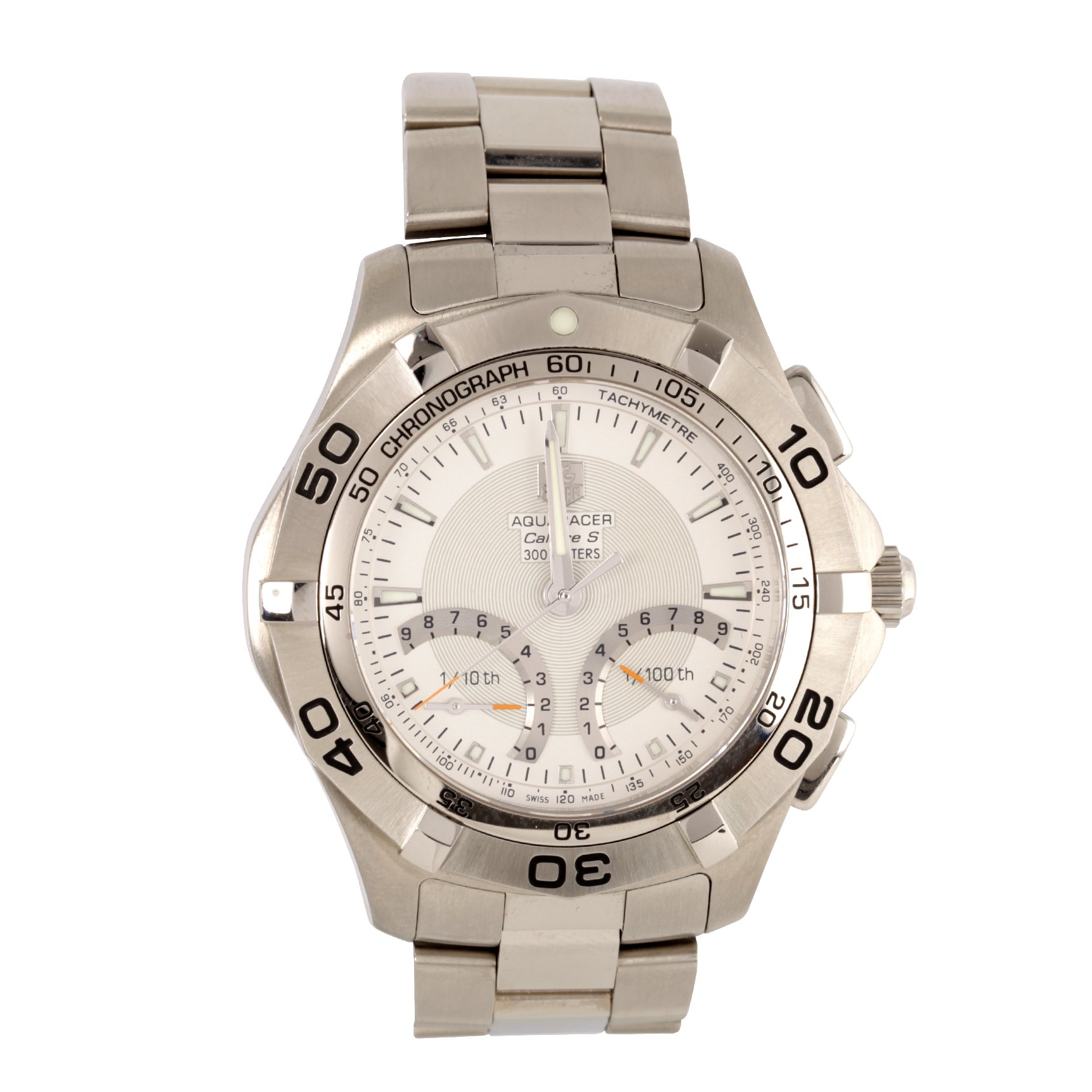

Image: Front view of the TAG Heuer Aquaracer Calibre S Chronograph watch, showcasing its silver dial, luminous markers, and chronograph sub-dials.

Setup

1. Initial Winding and Time Setting

As an automatic watch, the Calibre S is powered by the motion of your wrist. If the watch has stopped, it may require manual winding to initiate operation.

• Unscrew the Crown: Gently unscrew the crown (located on the right side of the watch case) counter-clockwise until it springs free.
• Manual Winding: In position 1 (crown unscrewed, closest to the case), turn the crown clockwise approximately 30-40 times. This will provide sufficient power reserve to start the watch.
• Setting the Time: Pull the crown out to position 2. Turn the crown clockwise or counter-clockwise to set the hour and minute hands. For precise setting, stop the second hand when it reaches 12 o'clock, then synchronize with a reference time.
• Setting the Date: Push the crown back to position 1. Turn the crown clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this can damage the movement.
• Secure the Crown: Once time and date are set, push the crown back to position 0 and screw it in clockwise firmly against the case to ensure water resistance. Do not force it.

Image: Side view of the watch, highlighting the screw-down crown and chronograph pushers. The crown is used for winding and setting the time/date, while the pushers activate the chronograph functions.

2. Adjusting the Bracelet

The stainless steel bracelet can be adjusted by adding or removing links. This procedure typically requires specialized tools and is best performed by a qualified watchmaker or jeweler to prevent damage to the bracelet or clasp.

The watch features a deployment clasp for secure fastening. Ensure the clasp is properly engaged to prevent accidental opening.

Operating the Chronograph

Your Aquaracer Calibre S is equipped with a chronograph function for measuring elapsed time. The chronograph is operated using the two pushers located on either side of the crown.

• Start: Press the upper pusher to start the chronograph. The chronograph second hand will begin to move.
• Stop: Press the upper pusher again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
• Reset: After stopping the chronograph, press the lower pusher to reset all chronograph hands to their zero positions.
• Split Time (if applicable): Some chronographs allow for split-time measurement. Consult a detailed Calibre S specific manual if this feature is desired, as its operation can vary.

Important: Ensure the crown is fully screwed in before operating the pushers, especially in or near water, to maintain water resistance.

Maintenance

1. Cleaning

To maintain the appearance of your watch, clean it regularly with a soft, damp cloth. For the stainless steel case and bracelet, a mild soap solution can be used. Always ensure the crown is fully screwed in before cleaning with water.

Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the watch's finish or seals.

2. Water Resistance

Your TAG Heuer Aquaracer Calibre S is water resistant to 300 meters (1000 feet). This makes it suitable for swimming, snorkeling, and diving. However, it is crucial to:

• Always ensure the crown is fully screwed in before any contact with water.
• Never operate the crown or pushers while the watch is wet or submerged.
• Rinse the watch with fresh water after exposure to salt water or chlorinated water.
• Have the water resistance seals checked by an authorized service center every 2-3 years, or after any impact, to ensure continued performance.

Image: Rear view of the watch case, displaying engravings such as "300 METERS" and "SAPPHIRE CRYSTAL", confirming its water resistance and material specifications.

3. Service Intervals

For optimal performance and longevity, it is recommended to have your watch serviced by an authorized TAG Heuer service center every 4-5 years. Regular servicing includes cleaning, lubrication, and replacement of worn components and seals.

Troubleshooting

• Watch has stopped:

  As an automatic watch, it requires motion to wind. If unworn for an extended period, manually wind the watch as described in the "Setup" section. Ensure the crown is fully screwed in.

• Date changes at noon:

  This indicates the watch's internal 24-hour cycle is misaligned. To correct, pull the crown to position 2 (time setting) and advance the time by 12 hours. Then, reset the date if necessary, ensuring it changes at midnight.

• Chronograph hands do not reset to zero:

  This may require a specific calibration procedure for the Calibre S movement. Consult an authorized service center or a detailed Calibre S manual for adjustment instructions.

• Condensation under the crystal:

  This indicates a loss of water resistance. Immediately take the watch to an authorized service center to prevent further damage to the movement.

Specifications

Warranty

The warranty for this product is provided by the seller. Please refer to your purchase documentation or contact the retailer from whom you purchased the watch for specific details regarding warranty coverage, duration, and terms. It is recommended to retain your proof of purchase for any warranty claims.

Support

For further assistance, technical support, or authorized servicing, please contact the official TAG Heuer customer service or the authorized dealer where you purchased your watch. You can find contact information on the official TAG Heuer website or through your retailer.

When contacting support, please have your watch's model number (CAF7011.BA0815) and serial number (usually found on the case back) readily available.
