Glem AE55AI3 Gas Cooker Instruction Manual

1. Introduction

Thank you for choosing the Glem AE55AI3 freestanding gas cooker. This manual provides essential information for the safe and efficient use, installation, and maintenance of your appliance. Please read these instructions carefully before using the cooker and keep them for future reference.

The Glem AE55AI3 is a 53x50 cm freestanding gas cooker featuring a stainless steel finish, a gas hob with four burners, and a conventional gas oven. It is designed for domestic use and offers reliable performance for your cooking needs.

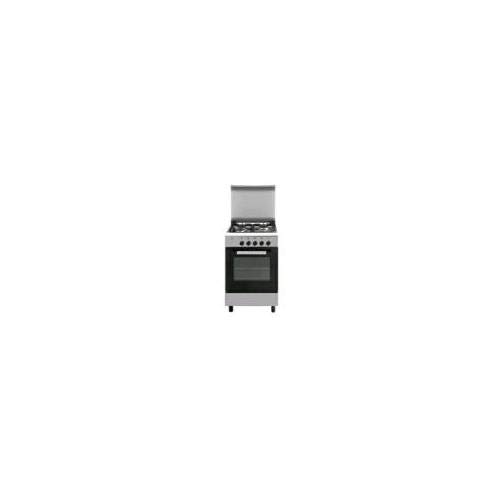

Figure 1: Glem AE55AI3 Freestanding Gas Cooker. This image shows the compact design and stainless steel finish of the appliance.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.

• Read all instructions before using the appliance.
• This appliance must be installed by a qualified person in accordance with current regulations.
• Ensure adequate ventilation in the room where the appliance is installed.
• Do not store flammable materials near the cooker.
• Keep children away from the appliance during operation as surfaces can become very hot.
• Always use oven gloves when handling hot items from the oven.
• Do not use abrasive cleaners or sharp objects for cleaning.
• In case of a gas leak, immediately close the main gas valve, open windows, and do not operate any electrical switches. Contact a qualified technician.

3. Setup and Installation

IMPORTANT: Installation of this gas appliance must be carried out by a qualified and certified technician in compliance with all local and national regulations.

3.1 Unpacking

• Carefully remove all packaging materials.
• Check the appliance for any damage incurred during transit. Report any damage to your retailer immediately.
• Keep packaging materials out of reach of children.

3.2 Positioning

• Place the cooker on a flat, stable surface.
• Ensure there is adequate clearance from adjacent walls and cabinets as specified by local regulations.
• The appliance dimensions are approximately 90 cm (height) x 53 cm (width) x 50 cm (depth).

3.3 Gas Connection

The gas connection must be performed by a qualified technician using approved materials and methods. Ensure the gas supply pressure is compatible with the appliance specifications.

3.4 Electrical Connection (if applicable)

If your model includes an electric ignition or oven light, connect the appliance to a properly grounded electrical outlet. The electrical connection must also be performed by a qualified electrician.

4. Operating Instructions

4.1 Using the Gas Hob Burners

1. Place a suitable cooking pan centrally on the chosen burner grate.
2. Push in and turn the corresponding control knob counter-clockwise to the maximum flame position (large flame symbol).
3. Hold the knob in for a few seconds to allow the flame supervision device to activate. If the burner does not light, repeat the process.
4. Once lit, adjust the flame size by turning the knob between the maximum and minimum flame positions (small flame symbol).
5. To turn off, turn the knob clockwise to the 'OFF' position.

4.2 Using the Gas Oven

1. Open the oven door.
2. Push in and turn the oven control knob to the desired temperature setting.
3. Ignite the oven burner using a match or an external igniter, if your model does not have automatic ignition. Hold the knob in for a few seconds after ignition.
4. Close the oven door and allow the oven to preheat to the set temperature.
5. The oven operates with a conventional cooking system, providing heat from the bottom.
6. To turn off, turn the oven control knob to the 'OFF' position.

4.3 Using the Timer

Your Glem AE55AI3 cooker is equipped with a mechanical timer. To set the timer, turn the timer knob clockwise to the desired duration. The timer will sound an audible alarm when the set time has elapsed. This timer does not control the oven's operation.

5. Cleaning and Maintenance

Regular cleaning and maintenance will ensure the longevity and optimal performance of your appliance.

5.1 General Cleaning

• Always ensure the appliance is cool before cleaning.
• Disconnect the appliance from the electrical supply (if applicable) and turn off the gas supply before cleaning.
• Use a soft cloth and mild detergent for cleaning stainless steel surfaces. Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage the finish.
• For stubborn stains, use a specialized stainless steel cleaner, following the product instructions.

5.2 Hob Maintenance

• Remove burner caps and pan supports for thorough cleaning. Wash them in warm soapy water, rinse, and dry completely before reassembling.
• Ensure burner holes are clear of food debris to maintain efficient flame distribution.

5.3 Oven Maintenance

• Clean the oven interior regularly with a suitable oven cleaner, following the manufacturer's instructions.
• Remove oven racks and clean them separately.
• Wipe down the oven door glass with a soft cloth and glass cleaner.

6. Troubleshooting

Before contacting customer service, please check the following common issues:

If the problem persists after attempting these solutions, please contact a qualified service technician.

7. Specifications

• Model: AE55AI3
• Brand: Glem
• Type: Freestanding Gas Cooker
• Material: Stainless Steel
• Dimensions (H x W x D): Approximately 90 cm x 53 cm x 50 cm
• Weight: Approximately 45 kg
• Hob: 4 Gas Burners
• Oven: Single Gas Oven, Conventional Cooking System
• Energy Efficiency Class: A+++ to G (as per general classification)
• Features: Timer

8. Warranty and Support

For warranty information, please refer to the warranty card provided with your purchase or consult your retailer. The warranty period and terms may vary depending on your region and point of purchase.

For technical assistance, spare parts, or service requests, please contact Glem customer support. Have your model number (AE55AI3) and serial number ready when you call.

Glem Customer Service: Please refer to the official Glem website or your purchase documentation for contact details specific to your country.
