John Deere TCU26908 Deck Drive V-Belt Instruction Manual

1. Product Overview

The John Deere TCU26908 Deck Drive V-Belt is an Original Equipment Manufacturer (OEM) replacement part designed for specific John Deere ZTrak Lawn Mowers. This V-belt is crucial for transmitting power from the engine to the mower deck, enabling the blades to rotate effectively. It replaces the prior MPN TCU22527.

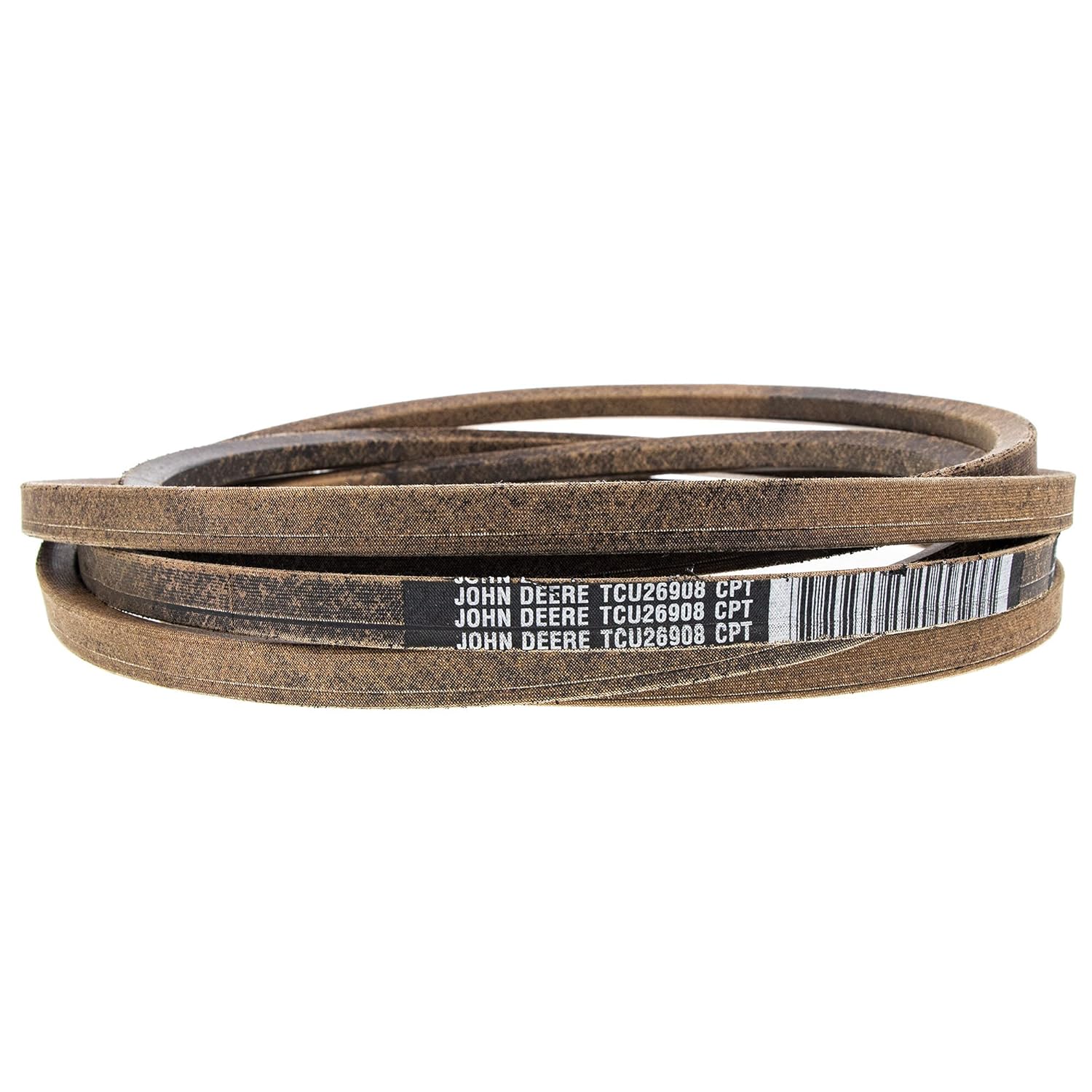

Figure 1: Overview of the John Deere TCU26908 Deck Drive V-Belt.

1.1 Key Features

• OEM John Deere Part: Ensures compatibility and performance as per original specifications.
• Direct Replacement: Replaces prior MPN TCU22527.
• Durable Construction: Designed for the demanding conditions of lawn mower operation.
• Essential Component: Facilitates power transfer to the mower deck for cutting.

2. Safety Information

Always prioritize safety when working with machinery. Failure to follow safety instructions can result in serious injury or damage to equipment.

• WARNING: Disconnect the spark plug wire(s) or remove the battery before performing any maintenance or installation to prevent accidental engine starting.
• CAUTION: Allow the engine and all moving parts to cool down completely before handling.
• Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
• Ensure the mower is on a flat, stable surface and the parking brake is engaged.
• Refer to your specific John Deere ZTrak Lawn Mower's owner's manual for detailed safety procedures and belt replacement instructions.

3. Installation Guide

This section provides general steps for replacing a deck drive V-belt. Specific procedures may vary by mower model. Always consult your mower's owner's manual.

3.1 Tools Required (Typical)

• Socket wrench set
• Pry bar or similar tool (for tensioners)
• Gloves
• Safety glasses

3.2 Belt Replacement Steps

1. Preparation: Park the mower on a level surface, engage the parking brake, turn off the engine, and remove the ignition key. Disconnect the spark plug wire(s) or battery. Allow all hot components to cool.
2. Access the Deck: Depending on your model, you may need to remove the mower deck from the tractor or lift the front of the mower to gain access to the belt routing.
3. Document Belt Routing: Before removing the old belt, take photos or draw a diagram of its exact routing around all pulleys and tensioners. This is critical for correct installation of the new belt.
4. Relieve Tension: Use a pry bar or appropriate tool to relieve tension on the belt tensioner pulley. Carefully slide the old belt off the pulleys.
5. Remove Old Belt: Once tension is relieved, remove the old belt completely from the mower deck and engine pulleys.
6. Install New Belt: Route the new TCU26908 V-belt exactly as the old one was routed, referring to your diagram or photos. Ensure the belt is seated correctly in all pulley grooves.
7. Apply Tension: Release the tensioner pulley slowly, allowing it to apply proper tension to the new belt. Double-check that the belt is securely seated on all pulleys.
8. Verify Installation: Manually rotate the blades or pulleys to ensure the belt moves freely and does not rub against any components. Reconnect the spark plug wire(s) or battery.
9. Test Operation: Start the mower and engage the deck at a low throttle setting to confirm proper operation. Listen for unusual noises or vibrations.

Figure 2: The TCU26908 V-belt with part number visible, useful for verification during installation.

4. Operation Considerations

Once installed, the TCU26908 V-belt operates as an integral part of your mower's deck drive system. Proper installation ensures efficient power transfer and optimal cutting performance.

• Ensure the belt is free of debris before each use.
• Avoid engaging the mower deck at high engine RPMs, as this can cause excessive wear on the belt and other components.
• If the mower deck experiences unusual noises, vibrations, or a decrease in cutting performance, inspect the belt for damage or improper tension.

5. Maintenance and Care

Regular inspection and proper care will extend the life of your John Deere TCU26908 V-belt.

• Regular Inspection: Periodically inspect the belt for signs of wear, cracks, fraying, glazing, or stretching. Replace the belt if any significant damage is observed.
• Cleanliness: Keep the belt and pulleys free from grass clippings, dirt, and other debris. Accumulation can cause slippage and premature wear.
• Proper Tension: Ensure the belt tensioner system is functioning correctly, maintaining appropriate tension on the belt. Refer to your mower's manual for tension specifications.
• Storage: When storing the mower for extended periods, ensure the belt is clean and dry. Store in a cool, dry place away from direct sunlight and extreme temperatures.

6. Troubleshooting Common Issues

If you encounter issues with your mower's deck drive system, consider the following common problems related to the V-belt:

• Belt Slipping:
  • Check for proper belt tension.
  • Inspect the belt for glazing or wear.
  • Ensure pulleys are clean and free of debris.
• Excessive Noise (Squealing/Grinding):
  • Verify correct belt routing.
  • Check for worn or misaligned pulleys.
  • Inspect the belt for damage or fraying.
• Belt Breaking Prematurely:
  • Ensure the correct belt (TCU26908) is installed.
  • Check for sharp edges or obstructions in the belt path.
  • Inspect pulleys for damage or seizing.
  • Verify proper belt tension (over-tensioning can cause breakage).
• Blades Not Engaging or Spinning Slowly:
  • Check for a broken or severely worn belt.
  • Ensure the belt is properly seated on all pulleys.
  • Verify the deck engagement mechanism is functioning.

7. Product Specifications

Detailed specifications for the John Deere TCU26908 Deck Drive V-Belt:

Figure 3: Close-up view of the TCU26908 part number printed on the V-belt.

8. Compatibility

The TCU26908 Deck Drive V-Belt is compatible with various John Deere ZTrak Professional Lawn Mower models. Always refer to your specific mower's owner's manual to verify compatibility before purchase and installation.

Compatible John Deere ZTrak Models:

• Z810A Professional ZTrak Kawasaki Gas (48 inch Deck, 54 inch Deck)
• Z820A Professional ZTrak Kawasaki Gas (48 inch Deck, 48 inch MOD Deck, 54 inch Deck, 54 inch MOD Deck, 60 inch Deck)
• Z830A Professional ZTrak Kawasaki Gas (54 inch Deck, 54 inch MOD Deck, 60 inch Deck, 60 inch MOD Deck, 72 inch Deck)
• Z840A Professional ZTrak Kawasaki Gas (54 inch Deck, 60 inch Deck)

9. Support and Warranty

For specific warranty information or technical support regarding your John Deere TCU26908 Deck Drive V-Belt, please contact John Deere customer service or an authorized John Deere dealer. Retain your purchase receipt for warranty claims.

Official John Deere resources can provide the most accurate and up-to-date information for your product.
