1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Osram Ledfog101 LED Fog Lamp. The Ledfog101 is an innovative all-rounder, functioning as a fog light, daytime running light (DRL), and cornering assist light, designed for car applications.
Key features include:
- Dimmable, OEM technology with a light color of 6000 Kelvin.
- Stone impact-resistant lens for durability.
- Automatic operation with intelligent control.
- Compatible with both 12-volt and 24-volt vehicle systems.
- Certified according to ECE and SAE rules and IP homologized.

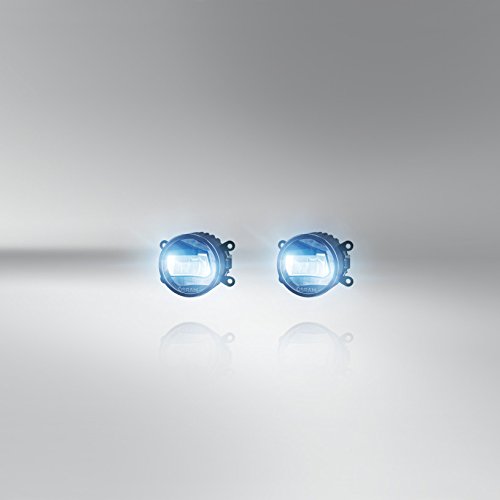

Image: Two Osram Ledfog101 LED fog lamps emitting a bright, cool white light.
2. Safety Information
- Always disconnect the vehicle's battery before beginning any electrical installation to prevent electrical shock or damage.
- Ensure all wiring connections are secure and properly insulated to prevent short circuits.
- Mount the lamps securely to avoid vibration and potential detachment during vehicle operation.
- Do not look directly into the LED light source when illuminated, as it may cause eye strain or damage.
- If you are unsure about any part of the installation process, consult a qualified automotive technician.
- Adhere to all local traffic laws and regulations regarding vehicle lighting.
3. Package Contents
Verify that all components are present in the package before proceeding with installation.
- 2 x Osram Ledfog101 LED Fog Lamps
- Wiring harness with control unit
- Mounting accessories (screws, cable ties, connectors)
Image: The complete Osram Ledfog101 kit, showing two LED lamps, the control unit, wiring, and installation hardware.
4. Setup and Installation
The Osram Ledfog101 is designed for easy installation, offering a plug-and-play replacement for most existing fog lights. It is compatible with both 12-volt and 24-volt electrical systems.
4.1 General Installation Steps:
- Preparation: Ensure the vehicle is turned off and the battery is disconnected. Access the existing fog light housing, typically located in the front bumper.
- Removal of Old Lamps: Carefully remove the old fog lamps from their housings.
- Mounting New Lamps: Install the Osram Ledfog101 lamps into the existing fog light openings. Some vehicles may require minor adjustments or the use of specific mounting brackets (not always included, check vehicle compatibility).
- Wiring Connection: Connect the provided wiring harness to the vehicle's electrical system. The harness includes a control unit that manages the fog light, DRL, and cornering assist functions. Follow the detailed wiring diagram provided in the product packaging for specific connections (e.g., to battery, ignition, headlight signal, turn signal).
- Secure Wiring: Route and secure all cables to prevent chafing, entanglement, or exposure to heat and moisture. Use the provided cable ties.
- Testing: Reconnect the vehicle battery and test all functions (fog light, DRL, cornering assist) before fully reassembling the bumper or trim.
- Adjustment: Adjust the beam pattern of the fog lights if necessary, ensuring they do not blind oncoming traffic.
Note: While designed for easy installation, professional installation is recommended if you are not familiar with automotive electrical systems or if your vehicle requires complex wiring modifications. The product is ECE and SAE certified, ensuring compliance with international standards.
Image: Overview of the Osram Ledfog101 components, illustrating the parts involved in the installation process.
5. Operating Instructions
The Osram Ledfog101 integrates multiple lighting functions for enhanced visibility and safety.
- Daytime Running Lights (DRL): The DRL function activates automatically when the vehicle's ignition is on, providing increased visibility during daylight hours. These lights operate at a bright intensity.
- Fog Lights: The fog lights are activated via your vehicle's standard fog light switch. When activated, they provide a wide, low beam pattern designed to cut through fog, heavy rain, or snow. The DRLs will dim or turn off when the fog lights are active, depending on the wiring configuration and local regulations.
- Cornering Assist: This feature automatically illuminates the fog light on the side towards which the vehicle is turning (when the turn signal is activated) or at low speeds when the steering wheel is turned. This provides additional illumination in the direction of travel, improving visibility during turns.
- Dimmable Function: The Ledfog101 features a dimmable function. When the vehicle's main headlights are switched on, the DRLs will automatically dim to a lower intensity, ensuring they do not overpower the headlights or cause glare to other drivers.
6. Maintenance
The Osram Ledfog101 LED Fog Lamps are designed for durability and require minimal maintenance.
- Cleaning: Periodically clean the lens of the fog lamps with a soft cloth and mild soap solution to remove dirt and debris. Avoid abrasive cleaners or harsh chemicals that could damage the lens material.
- Inspection: Regularly inspect the lamps for any signs of damage, such as cracks in the stone impact-resistant lens or loose connections.
- Wiring: Check the wiring harness periodically for any signs of wear, fraying, or corrosion. Ensure all connections remain secure.
- Bulb Replacement: As LED lamps, the individual bulbs are not user-replaceable. If a lamp fails, the entire unit typically needs to be replaced.
7. Troubleshooting
If you encounter issues with your Osram Ledfog101 LED Fog Lamps, consider the following troubleshooting steps:
- Lamps Not Illuminating:
- Check all electrical connections, ensuring they are secure and properly connected according to the wiring diagram.
- Verify that the vehicle's battery has sufficient charge.
- Inspect fuses related to the fog lights or DRLs in your vehicle's fuse box.
- Ensure the control unit is properly connected and receiving power.
- DRLs Not Dimming:
- Confirm that the wiring for the dimming function (typically connected to the main headlight signal) is correctly installed.
- Cornering Assist Not Functioning:
- Check the connections to the vehicle's turn signal wires or steering angle sensor (if applicable to your installation).
- Intermittent Operation:
- Loose connections are a common cause of intermittent operation. Re-check all wiring.
- Ensure the control unit is securely mounted and not exposed to excessive vibration or moisture.
If problems persist after performing these checks, contact Osram customer support or a qualified automotive electrician.
8. Specifications
| Attribute | Detail |
|---|---|
| Brand | Osram |
| Model | LEDFOG101 |
| Light Source Type | LED |
| Vehicle Service Type | Car |
| Voltage | 12 Volts / 24 Volts (Compatible) |
| Wattage | 14 Watts |
| Light Color Temperature | 6000 Kelvin |
| Lens Material | Glass |
| Lens Colour | Clear |
| Item Dimensions (L x W x H) | 63.5 x 32 x 25 Centimeters |
| Item Weight | 0.1 Kilograms (per unit) |
| Additional Features | Dimmable, Daytime Running Light, Cornering Assist |
| Certifications | ECE, SAE, IP Homologized |

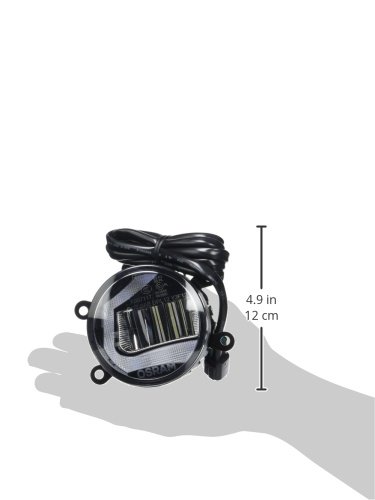

Image: A single Osram Ledfog101 LED fog lamp held in a hand, illustrating its compact size (approximately 12 cm).
9. Warranty Information
Osram provides a 5-year guarantee for the Ledfog101 LED Fog Lamp, reflecting the product's quality and durability. This warranty covers manufacturing defects and ensures reliable performance under normal operating conditions.
The expected LED life is up to 5000 hours. For detailed terms and conditions of the warranty, please refer to the official Osram warranty documentation included with your product or visit the Osram website.
Image: Official Osram graphic highlighting the 5-year warranty period.
10. Support
For technical assistance, warranty claims, or further inquiries, please contact Osram customer support:
- Manufacturer: OSRAM, OSRAM Germany
- Importer Contact (India): OSRAM Lighting Private Limited, 1st Floor, IFFCO Surinder Jhakhar Bhavan, Plot No. 3, Sector-32, Gurgaon - 122 001, Haryana, India.
- Toll-free Number: 1 80 04 19 04 26
- Email: customercare@osram.com
- Website: www.osram.com
