Magimix Compact 3200 XL Food Processor Instruction Manual

1. Product Overview

The Magimix Compact 3200 XL Food Processor is a versatile kitchen appliance designed for various food preparation tasks. It features a powerful 650-watt commercial-grade induction motor that automatically adjusts power as needed. The unit includes a trio of dishwasher-safe and shatter-proof Lexan bowls (6-cup, 10-cup, and 12-cup) for efficient multi-tasking without needing to wash bowls between steps. It comes equipped with razor-sharp serrated Sabatier stainless-steel blades and stainless-steel discs for heavy-duty tasks like crushing ice or chopping nuts. The BlenderMix accessory optimizes blending for soups and liquids, ensuring water tightness.

Key Features:

• Smart Motor: Commercial-grade induction motor with a 30-year warranty.
• Triple Bowl System: Includes 6-cup, 10-cup, and 12-cup Lexan bowls for sequential processing.
• Powerful Performance: Ultra-quiet 650-watt motor adapts to task demands.
• Simple Controls: Three-button operation: Stop, Auto, and Pulse.
• Durable Blades: Razor-sharp serrated Sabatier stainless-steel blades and discs.
• BlenderMix Accessory: Enhances blending function and ensures liquid containment.
• Easy Cleaning: All accessories are top-rack dishwasher-safe (hand washing recommended).

2. Setup and Assembly

2.1 Unboxing and Initial Inspection

Carefully remove all components from the packaging. Inspect for any damage. Ensure all listed accessories are present. Keep packaging for future storage or transport.

2.2 Assembling the Bowls and Blades

1. Place the main 12-cup bowl onto the motor base, aligning the handle with the front of the base and twisting clockwise until it locks securely.
2. For smaller tasks, the 10-cup midi bowl and 6-cup mini bowl can be nested inside the main bowl. Ensure they are properly seated.
3. Insert the desired blade or disc onto the central spindle within the bowl. For chopping, use the main serrated blade. For dough, use the dough blade. For slicing or grating, place the appropriate disc on the spindle.
4. Secure the lid onto the bowl, aligning the feed tube with the handle and twisting clockwise until it locks. The food processor will not operate unless the lid is correctly locked.

3. Operating Instructions

3.1 Basic Operation

The Magimix food processor features three simple control buttons: Stop, Auto, and Pulse.

• Stop: Halts operation.
• Auto: Provides continuous processing. The motor intelligently adjusts speed and power.
• Pulse: Offers short bursts of power for precise control, ideal for chopping or mixing.

3.2 Using the Main Blade for Chopping and Mixing

Insert the serrated main blade into the main bowl. Add ingredients through the feed tube or directly into the bowl. Use the 'Pulse' button for coarse chopping or 'Auto' for finer results. Be cautious as the blades are extremely sharp.

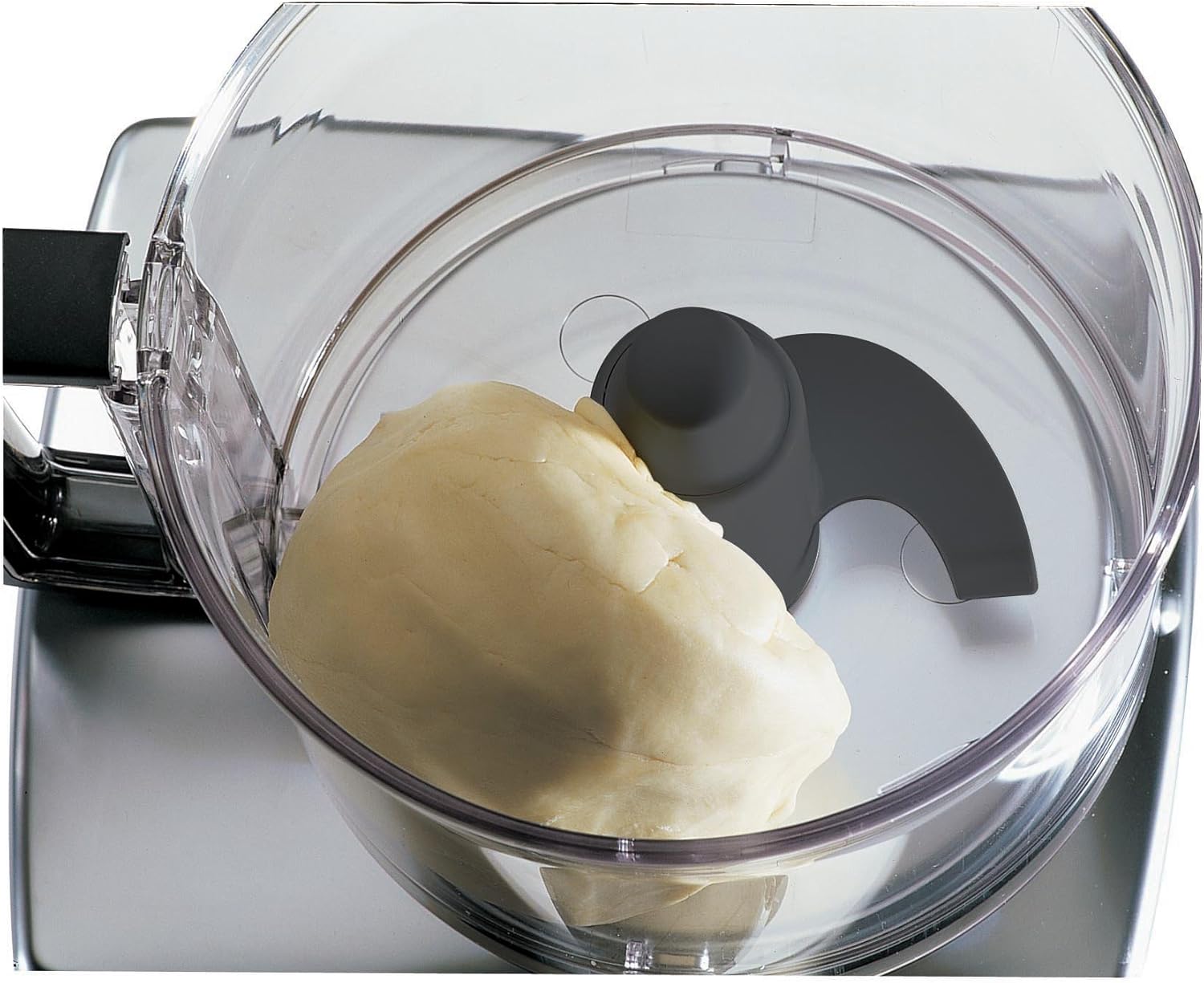

3.3 Kneading Dough

Attach the dough blade to the central spindle. Add flour and other dry ingredients to the bowl. With the motor running on 'Auto', gradually add liquid ingredients through the feed tube until a dough forms. The powerful motor is designed to knead dough efficiently.

3.4 Slicing and Grating

Select the appropriate slicing or grating disc and place it on the spindle. Secure the lid. Place ingredients into the feed tube and use the pusher to guide them through while the motor is running on 'Auto'.

3.5 Blending Liquids with BlenderMix

For blending soups, sauces, or other liquids, attach the BlenderMix accessory. This accessory ensures a watertight seal and optimizes the blending vortex for smooth results. Use the 'Auto' setting for continuous blending.

3.6 Official Product Video

4. Maintenance and Cleaning

4.1 Cleaning the Components

All removable parts, including the bowls, lids, blades, and discs, are top-rack dishwasher-safe. For best results and to prolong the life of your accessories, hand washing is recommended, especially for sharp blades. Always handle blades with extreme care to prevent injury.

4.2 Cleaning the Motor Base

Wipe the motor base with a damp cloth. Do not immerse the motor base in water or any other liquid. Ensure the base is unplugged before cleaning.

5. Troubleshooting

5.1 Appliance Not Starting

• Check Power: Ensure the appliance is securely plugged into a working power outlet.
• Safety Locks: The food processor has safety mechanisms. Ensure the bowl and lid are correctly assembled and locked into place. The appliance will not operate if these are not properly secured.
• Overload Protection: If the motor overheats due to excessive load, it may automatically shut off. Unplug the unit, remove some ingredients, and allow it to cool down before restarting.

5.2 Inconsistent Processing Results

• Ingredient Size: Ensure ingredients are cut into appropriate sizes before processing to avoid uneven results.
• Quantity: Do not overload the bowl. Process in smaller batches if necessary.
• Blade/Disc Selection: Verify that the correct blade or disc is being used for the desired task.

6. Specifications

7. Warranty Information

The Magimix Compact 3200 XL Food Processor is backed by a 30-year warranty on its commercial-grade induction motor. This warranty covers defects in materials and workmanship under normal household use. Please refer to the warranty card included in your product packaging for full terms and conditions.

8. Customer Support

For any questions, technical assistance, or warranty claims, please contact Magimix customer service. Contact details can typically be found on the official Magimix website or in the documentation provided with your appliance.
