Winco VC-1436 14" x 36" Wire Utility Shelf Instruction Manual

1. Introduction

This manual provides instructions for the proper assembly, operation, and maintenance of your Winco VC-1436 14" x 36" Wire Utility Shelf. This heavy-duty chrome-plated wire shelf is designed for various storage applications, including restaurants, garages, offices, and more. It is constructed from stainless steel and is NSF listed for use in dry storage and heated environments.

2. Safety Information

• Always ensure the shelf is properly assembled and secured to compatible shelving posts (sold separately) before placing items on it.
• Do not exceed the maximum weight capacity of 850 pounds per shelf. Overloading can cause structural failure and injury.
• Distribute weight evenly across the shelf surface to prevent tipping or instability.
• Keep hands and fingers clear of pinch points during assembly.
• This shelf is designed for static storage. Avoid using it as a climbing aid or for purposes other than its intended use.
• Ensure the shelf is placed on a stable, level surface to prevent wobbling or collapse.

3. Package Contents

Verify that all components are present before beginning assembly. The package should contain:

• One (1) Winco VC-1436 14" x 36" Wire Utility Shelf
• Hardware (for attaching to posts, if included with shelf, otherwise included with posts)

Note: Compatible shelving posts are sold separately and are required for a complete shelving unit.

4. Setup and Assembly

The Winco VC-1436 wire utility shelf is designed for easy, tool-free assembly with compatible shelving posts (sold separately).

1. Prepare Posts: Ensure your shelving posts are upright and stable. If assembling a new unit, attach leveling feet to the bottom of each post.
2. Attach Split Sleeves: Snap the two halves of a plastic split sleeve around each shelving post at the desired height for your shelf. Ensure the tapered end of the split sleeve faces upwards.
3. Position Shelf: Carefully lower the wire shelf over the top of the posts, aligning the shelf collars with the split sleeves. Apply downward pressure until the shelf collars firmly seat over the split sleeves.
4. Verify Stability: Once all four corners are seated, gently rock the shelf to ensure it is stable and securely attached to the posts.

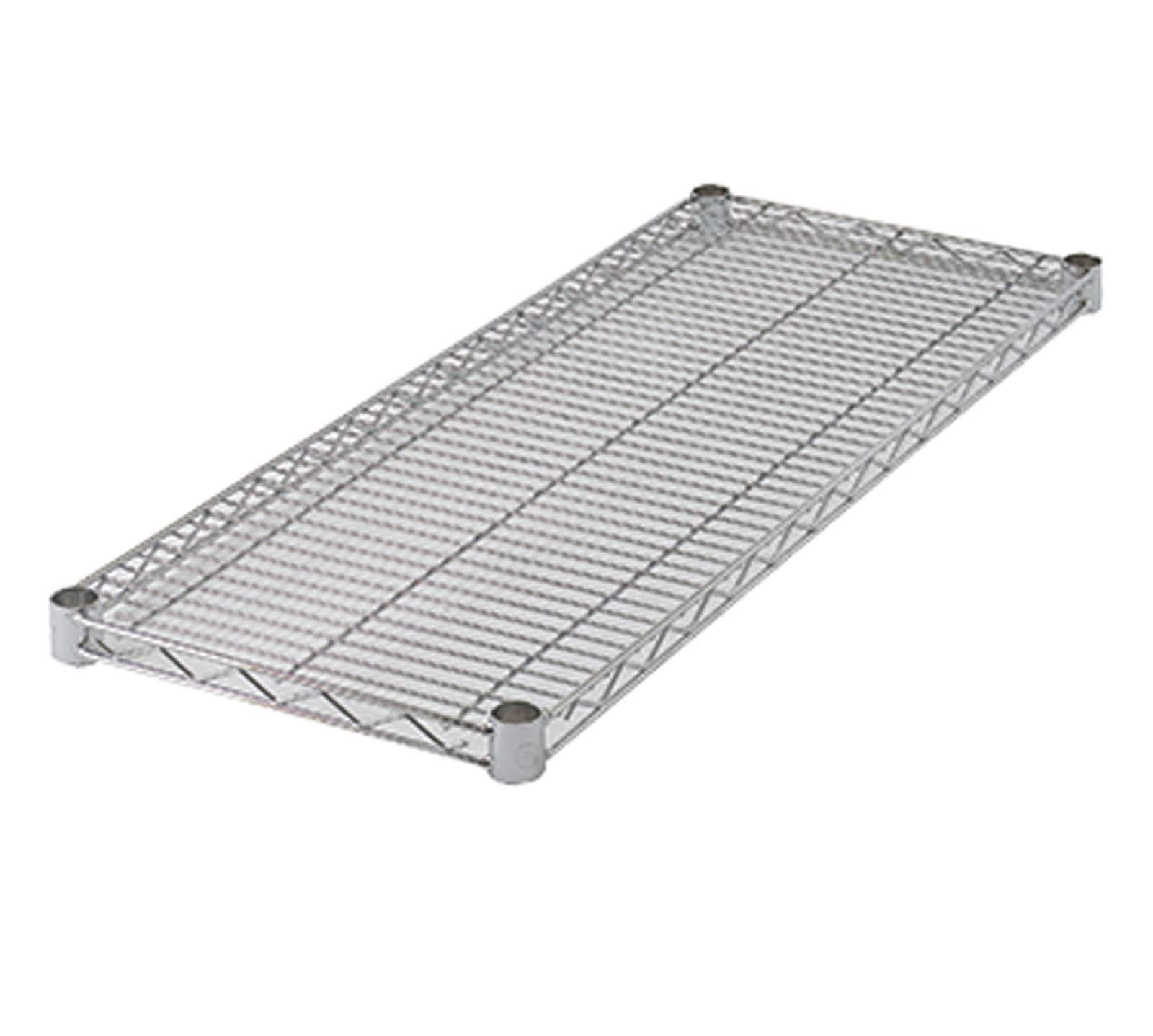

Figure 4.1: Winco VC-1436 Wire Utility Shelf showing its dimensions (14.06"D x 36.06"W x 1.63"H).

Figure 4.2: Detail of the wire shelf construction, illustrating the chrome-plated finish and sturdy design.

5. Operating Instructions

The Winco VC-1436 wire utility shelf is designed for versatile storage in various environments.

• Weight Capacity: Each shelf can support up to 850 pounds when properly installed and weight is evenly distributed.
• Temperature Range: This shelf is safe for use in environments ranging from -100°F to 500°F, making it suitable for walk-in refrigerators and freezers, as well as heated dry storage.
• Applications: Ideal for ingredient storage, kitchen supplies, garage organization, office supplies, and general utility storage.
• Adjustability: The shelf height can be adjusted along the shelving posts by repositioning the split sleeves.

6. Maintenance and Care

Proper care will extend the life and appearance of your Winco wire utility shelf.

• Cleaning: Hand wash only. Use a mild detergent and a soft cloth or sponge. Rinse thoroughly and dry immediately to prevent water spots or mineral buildup.
• Avoid Abrasives: Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
• Dust Reduction: The smooth chrome-plated wire design helps reduce dust and dirt accumulation. Regular wiping with a dry or damp cloth is recommended.
• Inspection: Periodically inspect the shelf and its connection to the posts for any signs of wear, damage, or instability. Tighten connections if necessary.

7. Troubleshooting

If you encounter issues with your Winco wire utility shelf, refer to the following common solutions:

• Shelf is Wobbly:
  • Ensure all split sleeves are fully seated in the shelf collars.
  • Verify that the shelving unit is on a level surface. Adjust leveling feet on the posts if applicable.
  • Check that posts are securely inserted into their bases.
• Difficulty Assembling Shelf:
  • Ensure the split sleeves are correctly oriented with the tapered end facing upwards.
  • Apply firm, even pressure when lowering the shelf onto the split sleeves.
  • Confirm that you are using compatible shelving posts (sold separately).

8. Specifications

9. Warranty and Support

Manufacturer's Warranty: This Winco product is covered by a 1-year manufacturer’s warranty against defects in workmanship from the date of purchase.

For warranty claims or technical support, please contact Winco customer service. Keep your proof of purchase for warranty validation.
