Heatshield Products HP Sticky Shield 180022 Instruction Manual

1. Product Overview

The Heatshield Products HP Sticky Shield 180022 is a high-performance, self-adhesive radiant heat barrier designed to protect vehicle components and interiors from extreme temperatures. It features a dense 1/8-inch fiberglass insulation layer, shielded by a rugged 0.003-inch thick aluminum surface, capable of reflecting over 90% of radiant heat when used with adequate airspace.

This product is ideal for applications where heat radiation into the driver's compartment or sensitive areas needs to be minimized. It is flexible, allowing it to conform to various shapes, and its heavy-duty peel-and-stick adhesive ensures a strong bond to most clean surfaces.

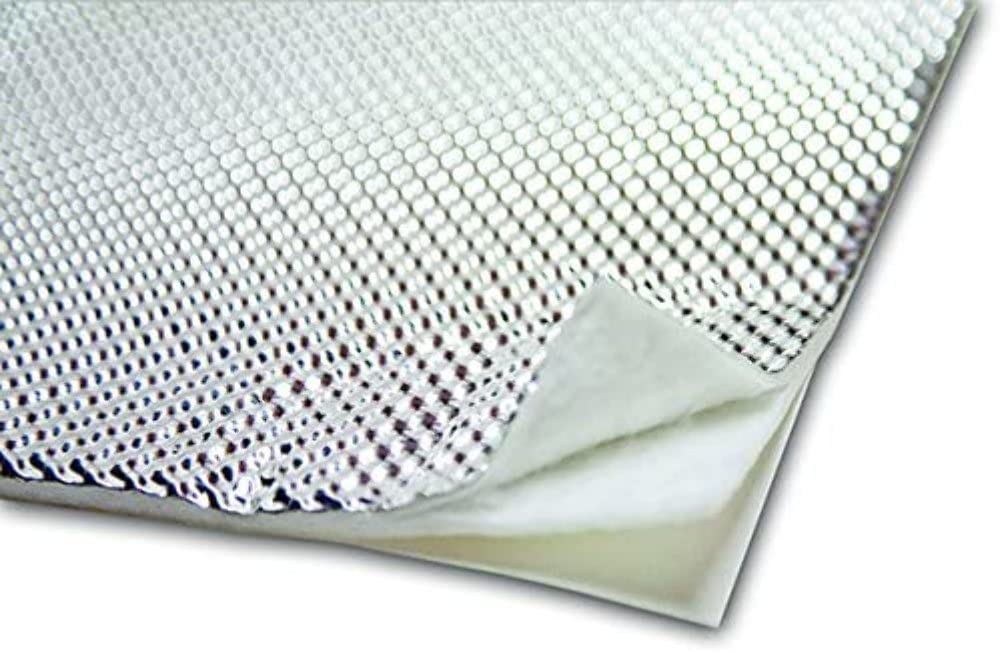

Figure 1: Heatshield Products HP Sticky Shield material, displaying the reflective aluminum surface and the partially peeled white adhesive backing.

Key Features:

• Dimensions: 1/8" thick x 11" wide x 10" long (ships folded).
• Heat Reflection: Capable of reflecting over 90% of radiant heat with 1 inch or more of airspace.
• Flexibility: Bends and conforms to almost any shape for versatile application.
• Adhesive Backing: Heavy-duty peel-and-stick adhesive for easy installation on clean surfaces.
• Temperature Rating: Continuous operating reflective temperature of 1100°F (593°C), 2000°F (1093°C) intermittent.
• Durability: Can be cleaned after installation and is resistant to elements.
• Safety: Asbestos-free.
• Origin: Made in USA.

2. Safety Information

Always wear appropriate personal protective equipment (PPE), including gloves and eye protection, when handling and installing the HP Sticky Shield. While the product is asbestos-free, the fiberglass insulation can cause skin irritation if handled without gloves. Ensure adequate ventilation during installation.

This product is designed for use under the vehicle on surfaces such as the floor pan, firewall, and transmission tunnel. It is not designed for use under carpeting or in direct contact with high-temperature components without proper air gap considerations.

3. Installation Instructions

Proper installation is crucial for optimal performance and longevity of the HP Sticky Shield. Follow these steps carefully:

1. Surface Preparation: Ensure the application surface is clean, dry, and free of oil, grease, dust, and debris. The heavy-duty adhesive bonds best to clean, smooth surfaces. (Not recommended for unfinished fiberglass or carbon.)
2. Cutting and Shaping: Measure the area where the shield will be applied. Cut the HP Sticky Shield to the desired size and shape using sharp scissors or a utility knife. The material is flexible and can be easily contoured.
3. Adhesive Backing Removal: Carefully peel off the protective film from the adhesive backing. A razor blade can be used to lift the film at a corner for easier removal.
4. Application: Position the shield carefully on the prepared surface. Once placed, press firmly and evenly across the entire surface to ensure a strong bond. Work from one end to the other to avoid trapping air bubbles.
5. Airspace Requirement: For maximum heat reflection (over 90%), maintain at least 1 inch of airspace between the HP Sticky Shield and the heat source. The product can be used with less than 1 inch of airspace, but its reflective efficiency will be reduced.
6. Sealing Seams (Optional): If multiple pieces of HP Sticky Shield are used, or to protect edges, Heatshield Armor Weld Tape can be used to seal seams and provide additional protection. This tape can also be used to repair minor damage.

4. Operating & Usage Guidelines

The HP Sticky Shield is designed to manage radiant heat in various automotive applications. Its primary function is to create a thermal barrier, reducing heat transfer to adjacent components or the vehicle's interior.

Recommended Applications:

• Firewalls
• Floor pans
• Transmission tunnels
• Doghouses
• Above mufflers, catalytic converters, DPFs, turbos, and downpipes
• Air intake boxes

Important Considerations:

• This product is intended for use under the vehicle. It is not designed to be used under interior carpeting.
• For optimal performance, ensure an air gap of at least 1 inch between the shield and the heat source.
• The material is rated for continuous reflective temperatures up to 1100°F (593°C) and intermittent temperatures up to 2000°F (1093°C).

5. Maintenance

The HP Sticky Shield can be cleaned after installation. Use a mild detergent and water with a soft cloth to wipe down the aluminum surface. Avoid abrasive cleaners or harsh chemicals that could damage the reflective layer.

6. Troubleshooting

Adhesion Issues:

• Poor Adhesion: Ensure the surface was thoroughly cleaned and dry before application. The adhesive requires a clean, non-porous surface for optimal bonding.
• Material Lifting: Apply firm, even pressure across the entire surface during installation. For areas with complex curves, consider using additional mechanical fasteners if the adhesive alone is insufficient.

Reduced Heat Protection:

• Excessive Heat Transfer: Verify that an adequate air gap (preferably 1 inch or more) is maintained between the heat source and the shield. Direct contact will significantly reduce reflective performance.
• Damage to Shield: Inspect the shield for any tears or punctures. Damaged areas can be repaired using Heatshield Armor Weld Tape to restore integrity.

7. Specifications

8. Warranty & Support

For specific warranty information and customer support, please refer to the official Heatshield Products website or contact their customer service directly. Keep your purchase receipt for warranty claims.

Contact Information:
Heatshield Products
Website: www.heatshieldproducts.com
(Please check the website for the most current contact details and warranty policies.)
