Spicer 707344-6X Differential Ring and Pinion Gear Set

Product Overview

The Spicer 707344-6X Differential Ring and Pinion Gear Set is engineered for optimal performance and durability in DANA 30 applications. This gear set is manufactured using statistically controlled processes, including precise heat treatment for optimal hardness, face hobbing for accurate gear tooth spacing, and shot peening to ensure maximum strength and extended life. Designed to meet Dana's Original Equipment standards, it provides a perfect fit, reducing noise, vibration, and harshness for a longer-lasting ring and pinion.

Key Features

• Designed specifically for DANA 30 applications.
• Gear Ratio: 4.10.
• Tooth Pattern: 41-10.
• Features a 26-Spline 10-Bolt design.
• Ring Gear Diameter: 7.13 inches.
• Pinion Shaft Diameter: 1.375 inches.

Installation Guidelines

Proper installation of differential ring and pinion gears is crucial for optimal performance and longevity. It is highly recommended that installation be performed by a qualified automotive technician with experience in differential assembly.

Pre-Installation Checks:

• Inspect Components: Before beginning, carefully inspect all components of the Spicer 707344-6X gear set for any signs of damage during shipping. Ensure all parts listed are present.
• Cleanliness: Maintain a clean working environment. Any debris or contaminants can severely impact the performance and lifespan of the differential.
• Required Tools: Gather all necessary specialized tools, including a dial indicator, torque wrenches, bearing pullers, and a press.

Key Installation Steps (Summary):

1. Disassembly: Safely remove the existing differential components from the DANA 30 axle housing.
2. Pinion Bearing Installation: Install the new pinion bearings onto the pinion shaft, ensuring proper seating.
3. Pinion Depth Adjustment: Set the correct pinion depth using shims to achieve the optimal gear mesh pattern. This is a critical step for quiet operation and long life.
4. Carrier Bearing Installation: Install the carrier bearings onto the differential carrier.
5. Backlash Adjustment: Install the carrier assembly into the housing and adjust the backlash between the ring gear and pinion gear using shims. The recommended backlash specification must be strictly adhered to.
6. Tooth Contact Pattern Verification: Apply gear marking compound to the ring gear teeth and rotate the assembly to check the tooth contact pattern. Adjust pinion depth and backlash as necessary until an ideal pattern is achieved.
7. Final Assembly: Torque all bolts to manufacturer specifications, install new seals, and fill the differential with the recommended gear oil.

Image 1: Components of the Spicer 707344-6X Differential Ring and Pinion Gear Set, including the ring gear, pinion gear, bearings, shims, and bolts.

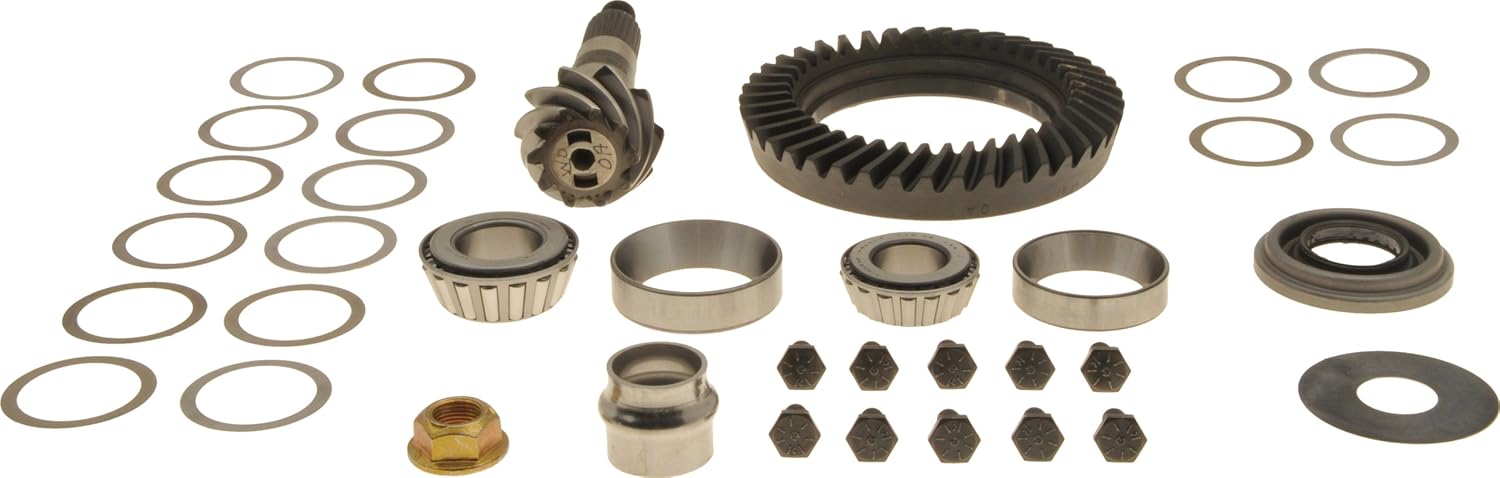

Image 2: An alternative perspective of the Spicer 707344-6X gear set components, highlighting the various washers and bolts included.

Function and Purpose

The differential ring and pinion gear set is a fundamental component of a vehicle's drivetrain, specifically within the differential assembly. Its primary function is to transmit power from the driveshaft to the axle shafts, which in turn drive the wheels. The gear ratio (4.10 in this case) determines how many times the driveshaft rotates for each rotation of the wheels, directly influencing the vehicle's acceleration and top speed characteristics. A 4.10 ratio provides increased torque multiplication, which is beneficial for off-road applications or vehicles requiring greater pulling power, such as those with larger tires.

Furthermore, the differential allows the wheels on the same axle to rotate at different speeds when turning, preventing tire scrub and ensuring smooth cornering. The precision engineering of Spicer gears ensures efficient power transfer and reduced drivetrain noise.

Maintenance

Regular maintenance is essential to ensure the longevity and optimal performance of your Spicer differential gear set. Adhering to the vehicle manufacturer's recommended maintenance schedule for differential fluid changes is critical.

Key Maintenance Practices:

• Differential Fluid: Regularly check and change the differential fluid according to your vehicle's service manual. Use only the specified type and viscosity of gear oil. Contaminated or degraded fluid can lead to premature wear and failure.
• Fluid Level: Ensure the differential fluid level is always at the recommended mark. Low fluid levels can cause overheating and inadequate lubrication.
• Leak Inspection: Periodically inspect the differential housing for any signs of fluid leaks around the seals or cover. Address any leaks promptly to prevent fluid loss.
• Noise and Vibration: Pay attention to any unusual noises (whining, clunking) or vibrations coming from the differential area. These can indicate wear or improper setup and should be investigated by a professional.
• Break-in Period: After installation of new gears, follow a proper break-in procedure as recommended by the gear manufacturer. This typically involves driving for a certain distance with varying speeds and allowing the differential to cool down, which helps to properly seat the gear teeth and prevent premature wear.

Troubleshooting Common Issues

While Spicer gear sets are designed for durability, certain symptoms may indicate an issue with the differential. It is important to consult a qualified technician for diagnosis and repair.

Note: Any significant noise or vibration from the differential should be addressed immediately to prevent further damage.

Technical Specifications

Warranty and Support

Spicer products are manufactured to high-quality standards. For specific warranty information regarding the Spicer 707344-6X Differential Ring and Pinion Gear Set, please refer to the official Spicer warranty documentation provided with your purchase or visit the official Spicer website. For technical support or inquiries, it is recommended to contact Spicer customer service directly or consult with a certified automotive professional.

You can find more information and contact details on the official Spicer website: www.dana.com/spicer
