Vulcan Hart 426505-30 Flex Tube Kit Instruction Manual

1. Introduction

This manual provides instructions for the proper installation and use of the Vulcan Hart 426505-30 Flex Tube Kit. This kit is designed for use with gas supply and pilot lines in commercial and industrial applications. It includes a corrugated stainless steel flex tube and necessary connection fittings.

Please read these instructions thoroughly before installation or use to ensure safe and efficient operation. Retain this manual for future reference.

2. Safety Information

WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.

• Installation must be performed by a qualified, licensed professional in accordance with all applicable local and national codes and regulations.
• Ensure the gas supply is turned off before beginning any installation or maintenance procedures.
• Check all connections for leaks using an approved leak detection solution after installation.
• Do not use damaged or altered components.
• This kit is intended for gas applications only. Do not use for other purposes.

3. Package Contents

Verify that all components listed below are present and undamaged before proceeding with installation:

• 1 x Corrugated Stainless Steel Flex Tube (1/4" x 30")
• 2 x Compression Nuts
• 2 x Compression Sleeves (Ferrules)
• 1 x Male Breakaway Fitting (Male Nut/Sleeve)
• Instruction Sheet (this document)

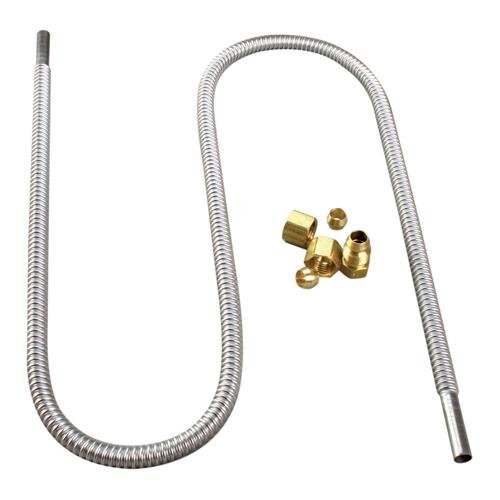

Image 1: Vulcan Hart 426505-30 Flex Tube Kit components. This image displays the complete kit. On the left and right, the corrugated stainless steel flex tube is visible, bent into a U-shape. In the center, several brass components are shown, including compression nuts, sleeves (ferrules), and a male breakaway fitting, which are essential for connecting the flex tube.

4. Setup and Installation

This kit is designed for connecting gas supply and pilot lines. Professional installation is highly recommended to ensure safety and compliance with all local codes.

General Installation Steps:

1. Turn Off Gas Supply: Locate the main gas shut-off valve and turn off the gas supply to the appliance or system where the flex tube will be installed.
2. Prepare Connections: Ensure that the connection points on the appliance and the gas supply line are clean and free of debris.
3. Assemble Fittings:
   • Slide a compression nut onto the end of the flex tube, followed by a compression sleeve (ferrule).
   • Insert the end of the flex tube into the appropriate port on the appliance or gas supply line.
   • Tighten the compression nut onto the threaded port. Use two wrenches: one to hold the fitting steady and one to tighten the nut, ensuring a secure, leak-free connection. Do not overtighten.
   • Repeat for the other end of the flex tube, using the male breakaway fitting if required for your specific application.
4. Position Flex Tube: Route the flex tube carefully, avoiding sharp bends, kinks, or contact with hot surfaces. Ensure there is no undue stress on the connections.
5. Check for Leaks: After all connections are made, slowly turn on the gas supply. Apply an approved leak detection solution (e.g., soapy water) to all connections. The appearance of bubbles indicates a leak. If a leak is detected, turn off the gas supply immediately, tighten the connection, and re-test. Do not use an open flame to check for leaks.
6. Final Check: Once all connections are confirmed leak-free, the installation is complete.

5. Operating Instructions

The Vulcan Hart 426505-30 Flex Tube Kit is a passive component designed to safely convey gas. Once properly installed and leak-tested, no further operational steps are required for the flex tube itself. Operation of the connected appliance should follow the manufacturer's instructions for that specific equipment.

6. Maintenance

Regular inspection and maintenance are crucial for the safe and reliable operation of gas lines.

• Visual Inspection: Periodically inspect the flex tube and all connections for any signs of damage, corrosion, kinks, or wear. Look for discolored areas, cracks, or loose fittings.
• Leak Checks: Re-check connections for leaks annually or if the flex tube has been disturbed, using an approved leak detection solution.
• Cleaning: Keep the exterior of the flex tube clean and free of grease, dirt, or other contaminants that could degrade the material over time. Use a mild detergent and water if necessary, and ensure it is thoroughly dry.
• Replacement: If any damage is observed, or if the flex tube shows signs of significant wear, it must be replaced immediately by a qualified professional. Do not attempt to repair damaged flex tubes.

7. Troubleshooting

Most issues related to a flex tube kit involve leaks or improper installation.

• Gas Odor: If you detect a gas odor, immediately turn off the gas supply, ventilate the area, and contact a qualified professional. Do not operate any electrical switches or appliances.
• Visible Leaks (Bubbles): If a leak detection solution shows bubbles at a connection, turn off the gas supply, carefully tighten the fitting, and re-test. If the leak persists, replace the faulty component or consult a professional.
• Kinked or Damaged Tube: A kinked or damaged flex tube can restrict gas flow or lead to leaks. Such a tube must be replaced immediately.

For any issues beyond simple leak tightening, it is strongly recommended to contact a qualified gas technician.

8. Specifications

9. Warranty and Support

Specific warranty information for the Vulcan Hart 426505-30 Flex Tube Kit is not provided in this document. For details regarding warranty coverage, please refer to the original purchase documentation or contact Vulcan Hart directly.

For technical support, replacement parts, or further assistance, please contact your authorized Vulcan Hart dealer or customer service representative. Always provide the model number (426505-30 or 26-4122) when seeking support.
