Apollo Spectre Pro Deluxe City Scooter User Manual

1. Introduction

Thank you for choosing the Apollo Spectre Pro Deluxe City Scooter. This manual provides essential information for the safe assembly, operation, and maintenance of your scooter. Please read it thoroughly before first use and keep it for future reference. Proper use and care will ensure a long lifespan and optimal performance of your scooter.

2. Safety Instructions

Your safety is paramount. Always adhere to the following safety guidelines:

• Always wear a helmet and appropriate protective gear (knee pads, elbow pads, wrist guards) when riding.
• Ensure all clamps, bolts, and quick-release mechanisms are securely tightened before each ride.
• Do not exceed the maximum weight capacity of 100 kg (220 lbs).
• This scooter is designed for individuals aged 6 years and older. Adult supervision is recommended for younger riders.
• Ride on smooth, dry, paved surfaces away from traffic. Avoid uneven terrain, sand, gravel, or wet conditions.
• Maintain a safe distance from pedestrians and other vehicles.
• Do not ride at night or in low visibility conditions without proper lighting.
• Familiarize yourself with local laws and regulations regarding scooter use.
• Avoid sharp turns or sudden maneuvers at high speeds.
• Regularly inspect the scooter for wear and tear, especially the wheels, brakes, and folding mechanism.

3. Package Contents

Upon opening the package, please verify that all components are present:

• Apollo Spectre Pro Deluxe City Scooter (pre-assembled)
• Shoulder strap
• User Manual (this document)

4. Setup

4.1 Unfolding the Scooter

1. Place the scooter on a flat, stable surface.
2. Locate the One-Click folding mechanism near the front wheel.
3. Press the quick-release lever to unlock the folding mechanism.
4. Carefully lift the handlebar stem until it locks into the upright position. Ensure it clicks securely.
5. Unfold the handlebars by pulling them outwards until they lock into place.

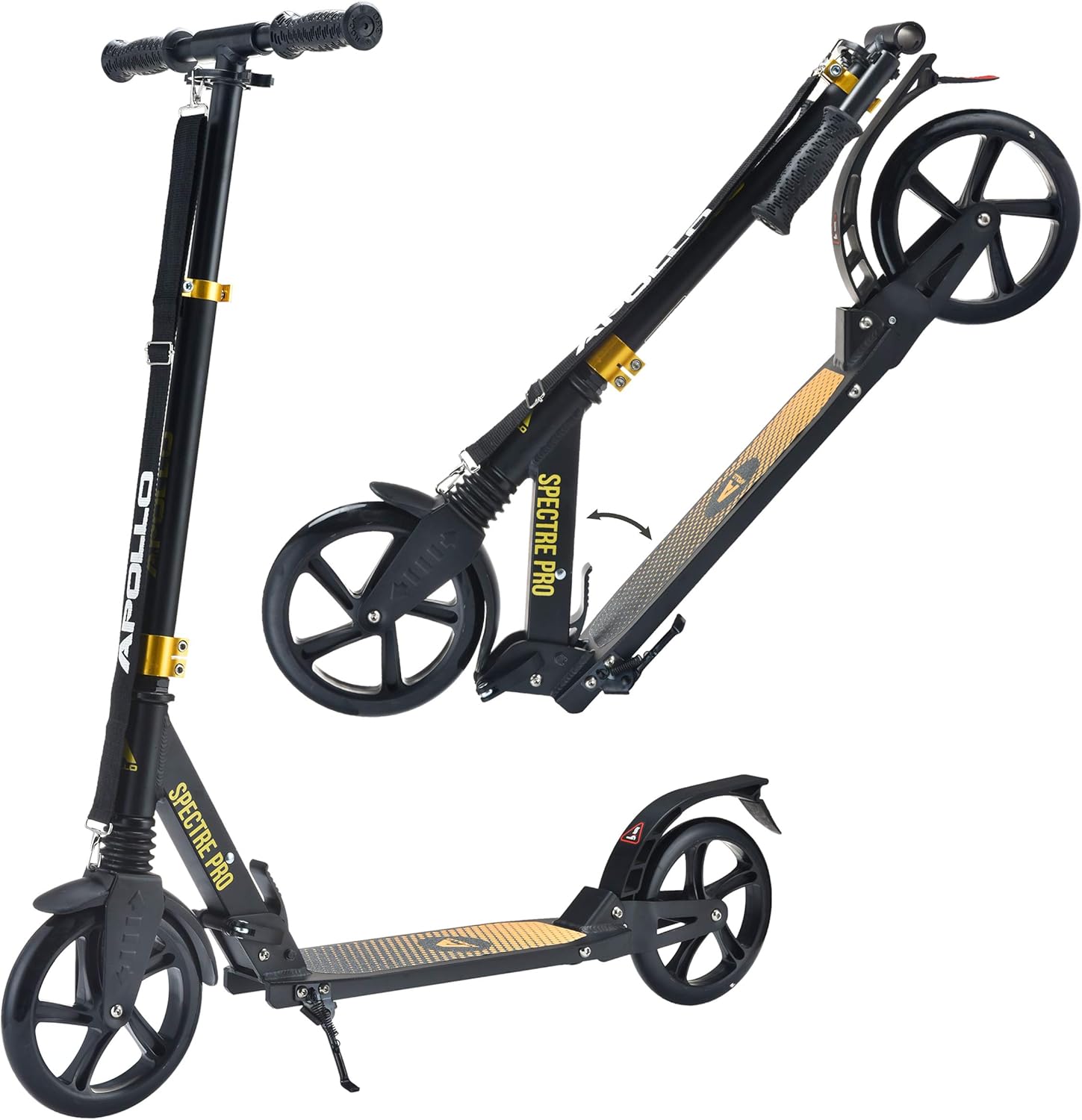

Image 4.1: The Apollo Spectre Pro scooter shown in both its unfolded, ready-to-ride state and its compact, folded state for storage or transport.

Image 4.2: A detailed view of the scooter's front section, illustrating the 'One Klick System' for quick folding, the integrated front shock absorber, and the convenient kickstand.

4.2 Adjusting Handlebar Height

The handlebar height can be adjusted to three levels to suit different rider heights.

1. Open the quick-release clamp on the handlebar stem.
2. Adjust the handlebar to the desired height. Ensure the handlebar is at a comfortable level, typically around hip height when standing on the deck.
3. Close the quick-release clamp securely. Ensure there is no play in the handlebar stem.

Image 4.3: An illustrative diagram demonstrating the three adjustable height levels for the scooter's handlebars, accommodating children (120 cm), teenagers (158 cm), and adults (190 cm) for ergonomic riding.

5. Operating the Scooter

5.1 Riding

1. Place one foot firmly on the non-slip deck.
2. Use your other foot to push off the ground, gaining momentum.
3. Once moving, place both feet on the deck, one behind the other, or side-by-side if comfortable.
4. Steer by gently leaning and turning the handlebars.

Image 5.1: A top-down perspective of the scooter's spacious, non-slip deck, featuring griptape for enhanced foot stability during rides.

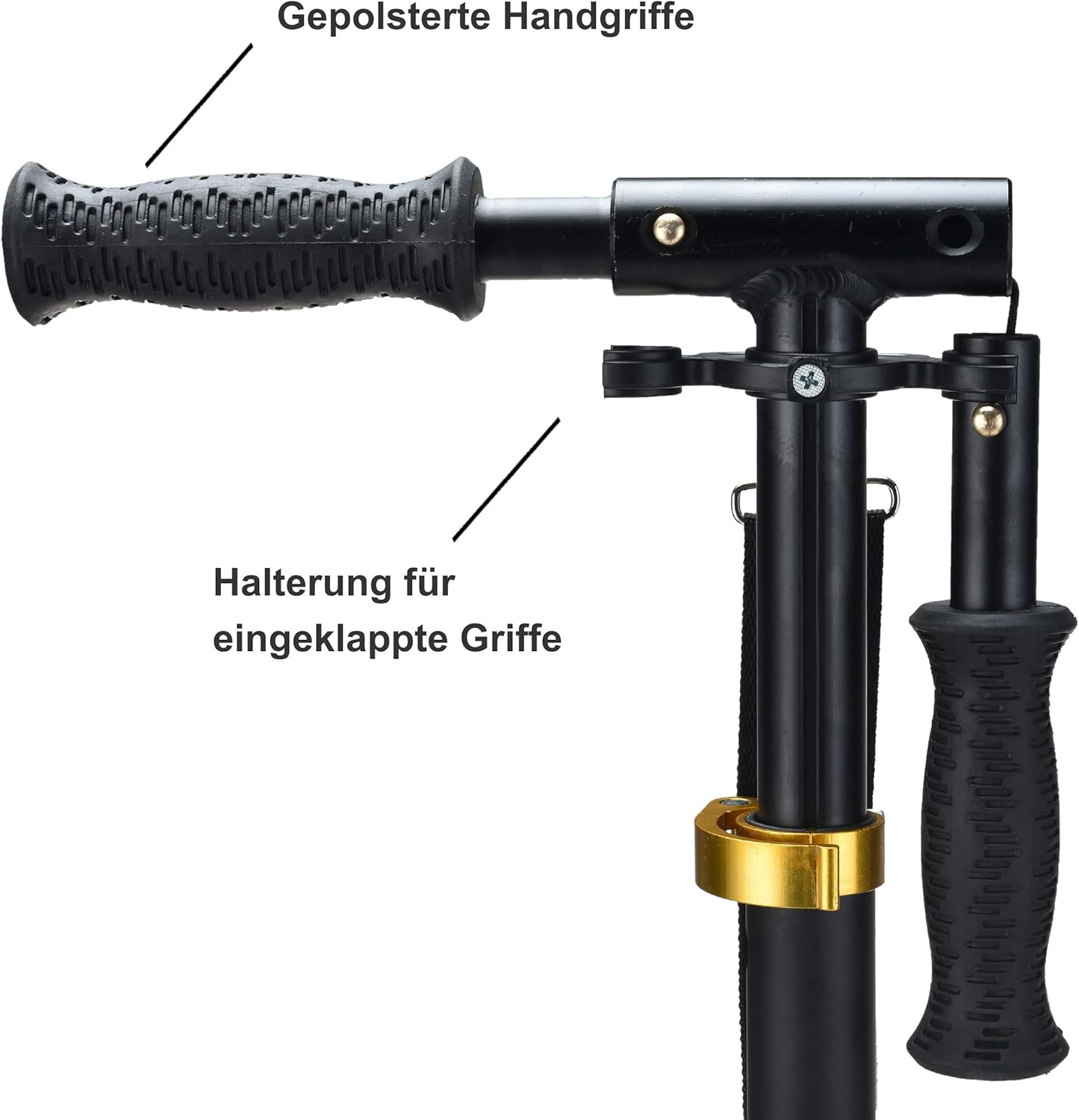

Image 5.2: A close-up of the scooter's handlebars, highlighting the comfortable padded grips and the integrated holder designed to secure the grips when folded for compact storage.

5.2 Braking

The Apollo Spectre Pro is equipped with a rear-wheel friction brake.

1. To slow down or stop, gently press your foot down on the rear fender brake.
2. Apply pressure gradually to avoid sudden stops, which can lead to loss of balance.

Image 5.3: A detailed view of the scooter's rear wheel assembly, featuring the friction brake for stopping, a reflector for increased visibility, and the shock absorber positioned beneath the deck for a smoother ride.

5.3 Folding for Storage/Transport

1. Ensure the scooter is stationary and on a flat surface.
2. Fold the handlebars inwards by releasing their locking mechanisms.
3. Locate the One-Click folding mechanism near the front wheel.
4. Press the quick-release lever and gently push the handlebar stem downwards until the scooter is fully folded. Ensure it locks into the folded position.
5. You can use the included shoulder strap for easier carrying.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your scooter.

• Cleaning: Wipe down the scooter with a damp cloth after use. Avoid using harsh chemicals or abrasive cleaners.
• Inspections: Before each ride, check for loose parts, especially bolts, clamps, and the folding mechanism. Inspect the wheels for wear and tear, and ensure the brake is functioning correctly.
• Lubrication: Periodically apply a small amount of lubricant to moving parts, such as the folding mechanism and wheel bearings, to ensure smooth operation.
• Tire/Wheel Care: The 200mm PU wheels are durable, but inspect them for cracks or excessive wear. Replace if necessary.
• Storage: Store the scooter in a dry place, away from direct sunlight and extreme temperatures, to prevent material degradation.

7. Troubleshooting

Here are some common issues and their solutions:

• Squeaking Noises: Check for loose bolts or parts that may be rubbing. Lubricate moving components if necessary.
• Handlebar Wobble: Ensure the quick-release clamp on the handlebar stem is fully tightened. If the handlebars still wobble, check the internal locking mechanism.
• Brake Ineffectiveness: Inspect the rear fender brake for wear. Ensure it makes full contact with the wheel. If worn, replacement may be necessary.
• Difficulty Folding/Unfolding: Ensure the One-Click mechanism is clean and free of debris. Apply a small amount of lubricant if it feels stiff.

If you encounter issues not listed here or require further assistance, please contact Apollo customer support.

8. Specifications

Image 8.1: An overview of the Apollo Spectre Pro scooter, highlighting key features such as front and rear shock absorbers, 200mm PU wheels, 6.12 kg net weight, 100% aluminum body, ABEC 9 steel ball bearings, and a 100 kg load capacity.

9. Warranty and Support

For information regarding warranty coverage, returns, or technical support, please refer to the documentation provided at the point of purchase or visit the official Apollo website. Keep your proof of purchase for any warranty claims.
