Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your EISL DXLD60087CS Shower Column. This 2-in-1 shower system includes a large rain shower and a hand shower, designed for enhanced comfort and relaxation. It features a high-quality, corrosion-resistant stainless steel shower bar and an adjustable wall bracket, making it ideal for renovations where existing drill holes can be utilized. The shower head is equipped with anti-limescale nozzles for easy cleaning, and an integrated diverter allows for seamless switching between the main and hand shower.
Package Contents
Before beginning installation, please ensure all components are present and undamaged. Refer to the diagram below for a visual representation of the included parts.
Image: Exploded view showing all components of the EISL DXLD60087CS shower column, including the rain shower head, hand shower, shower bar, soap dish, diverter, and mounting hardware.
- Rain Shower Head (200 x 200 mm)
- Hand Shower with 3 spray functions
- Shower Bar (Stainless Steel)
- Adjustable Wall Bracket
- Diverter
- Shower Hose
- Soap Dish (Removable)
- Mounting Hardware (screws, wall plugs, seals)
- Instruction Manual
Installation Instructions
Proper installation is crucial for the optimal performance and longevity of your shower column. If you are unsure about any step, it is recommended to consult a qualified plumber.
1. Preparation
- Turn off the main water supply to your bathroom.
- Clear the installation area and ensure you have all necessary tools (drill, screwdriver, level, measuring tape, pencil).
- Remove any existing shower fixtures.
2. Mounting the Shower Bar
The shower column features an adjustable wall bracket, allowing for flexible installation and use of existing drill holes.
Image: Diagram illustrating the height-adjustable feature of the shower column's wall bracket, allowing for adaptation to existing drill holes.
- Position the shower bar against the wall at the desired height. Use a level to ensure it is perfectly vertical.
- Mark the positions for the wall brackets. If using existing drill holes, align the adjustable bracket accordingly.
- Drill holes at the marked positions. Insert appropriate wall plugs.
- Secure the wall brackets to the wall using the provided screws.
- Attach the shower bar to the secured wall brackets.
3. Connecting the Water Supply and Diverter
Image: Close-up of the diverter valve, showing how to switch between the main rain shower and the hand shower.
- Connect the main water supply hose to the inlet of the diverter valve. Ensure all connections are sealed with appropriate washers to prevent leaks.
- Attach the shower hose for the hand shower to the designated outlet on the diverter.
- Connect the rain shower arm to the top outlet of the shower bar.
4. Attaching Shower Heads and Accessories

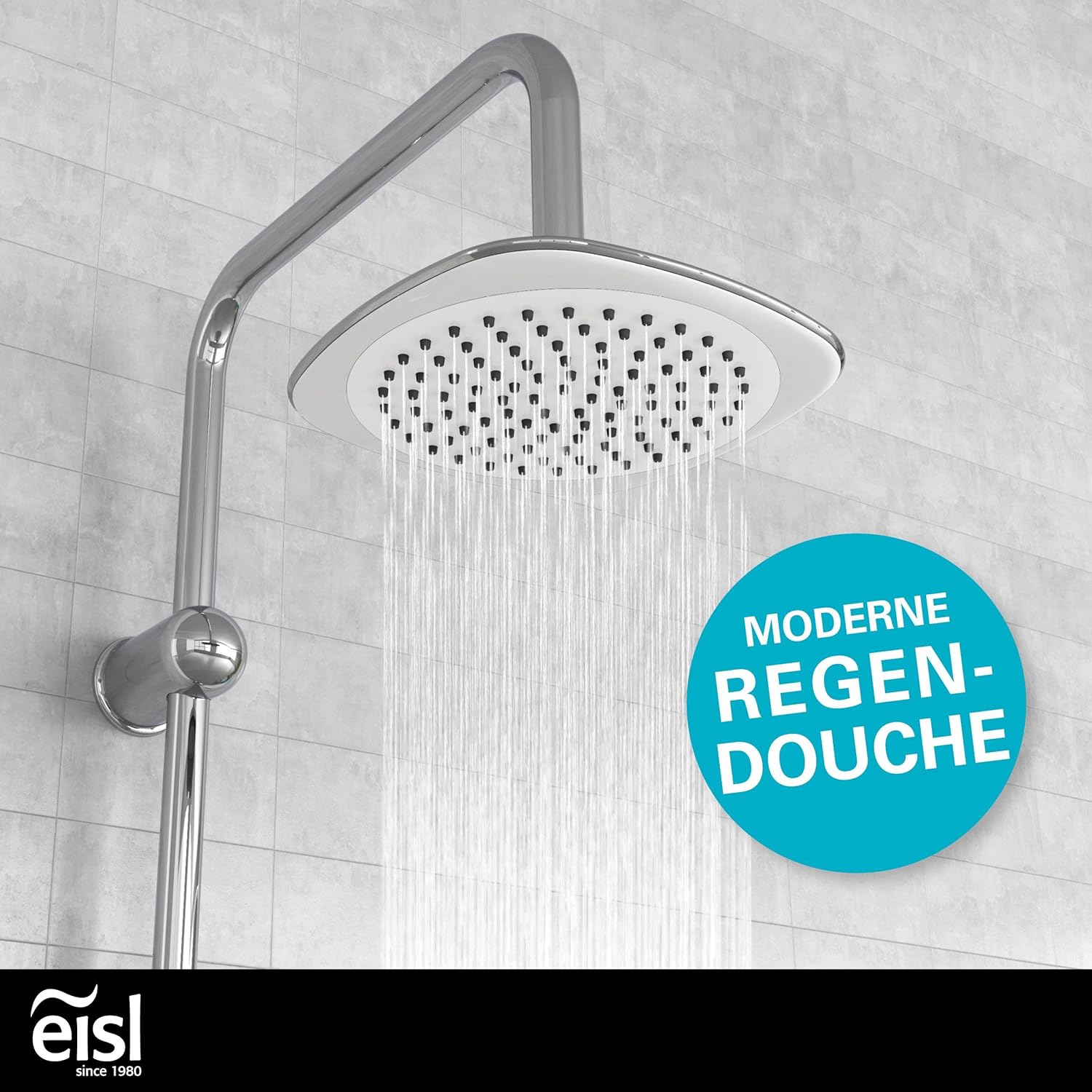

Image: The large, modern rain shower head delivering a steady flow of water.

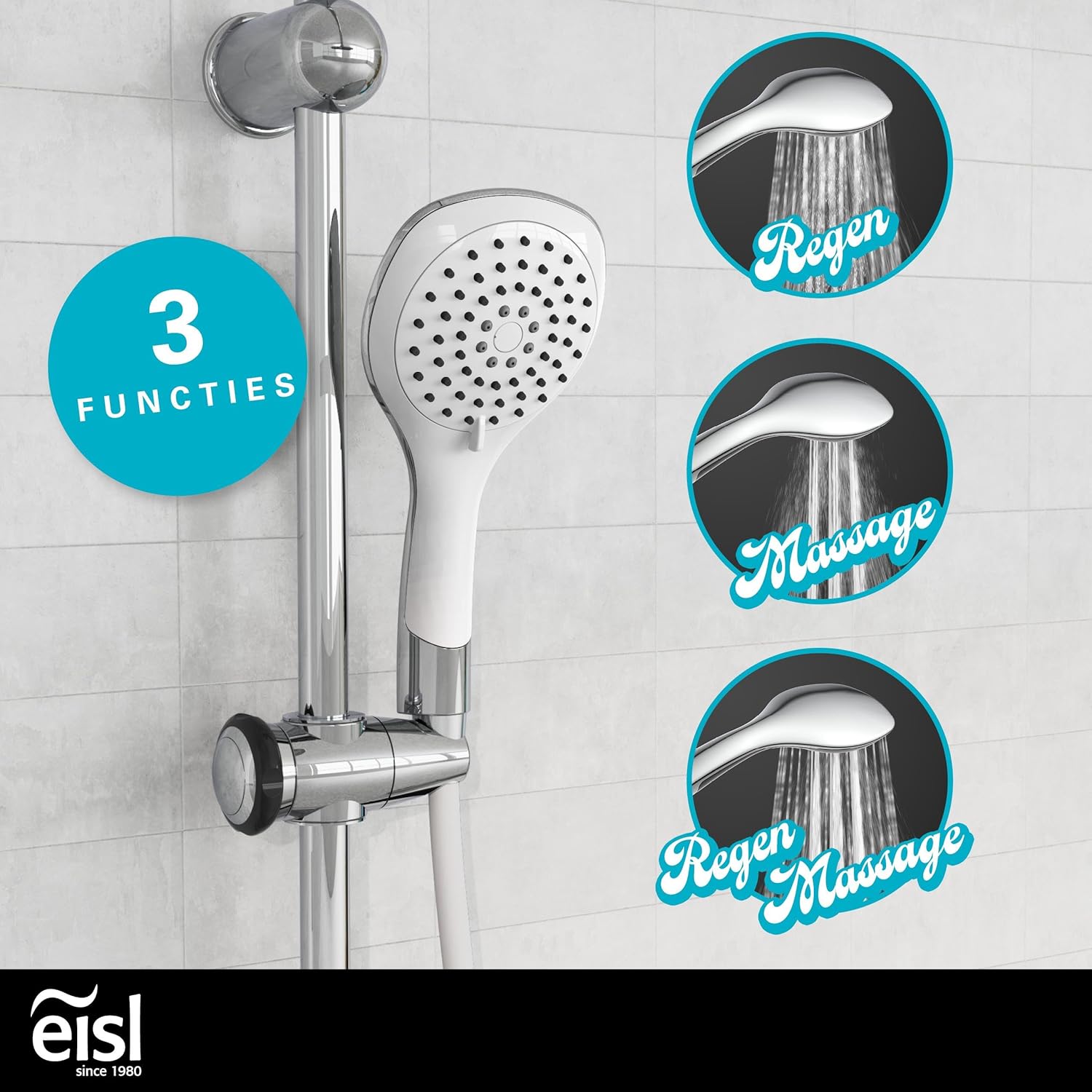

Image: The hand shower, highlighting its three distinct spray functions: Rain, Massage, and a combination of Rain and Massage.
Image: A close-up of the removable soap dish attached to the shower bar, designed for convenience.
- Screw the rain shower head onto the shower arm.
- Attach the hand shower to the shower hose.
- Slide the hand shower holder onto the shower bar and adjust its height as desired.
- Install the removable soap dish onto the shower bar.
5. Final Check
- Slowly turn on the main water supply.
- Check all connections for leaks. Tighten gently if necessary.
- Test both the rain shower and hand shower functions, ensuring the diverter operates correctly.
Operating Instructions
Using the Diverter
The integrated diverter allows you to easily switch between the overhead rain shower and the hand shower. Rotate the diverter knob to select your preferred shower outlet.
Hand Shower Functions
The hand shower offers three distinct spray functions. Rotate the spray plate on the hand shower head to cycle through the "Rain", "Massage", and "Rain + Massage" settings.
Adjusting Hand Shower Height
The hand shower holder can be adjusted vertically along the shower bar to suit individual preferences. Loosen the holder, slide it to the desired height, and then tighten to secure.
Care and Maintenance
Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your EISL shower column.
Cleaning the Shower Heads
- Both the rain shower head and hand shower are equipped with anti-limescale nozzles. To remove limescale deposits, simply rub the rubber nozzles with your finger or a soft cloth.
- For more stubborn deposits, use a mild descaling agent specifically designed for bathroom fixtures. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
General Cleaning
- Clean the stainless steel shower bar and other chrome-plated surfaces with a soft cloth and mild soap or a non-abrasive bathroom cleaner.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Regularly check all connections for any signs of wear or leaks.
Troubleshooting
If you encounter any issues with your shower column, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from connections | Loose connections or damaged washers. | Ensure all connections are tightened properly. Check and replace any worn or damaged washers. |
| Diverter not switching properly between shower heads | Internal mechanism obstruction or incorrect assembly. | Ensure the diverter knob is fully rotated to the desired position. If the issue persists, check the diverter's internal components for any debris or misalignment. Re-assembly might be required, ensuring all parts are correctly seated as per the installation diagram. |
| Reduced water flow from shower heads | Limescale buildup in nozzles or low water pressure. | Clean the anti-limescale nozzles on both shower heads by rubbing them. Check your household water pressure. |
| Hand shower holder slides down | Holder not tightened sufficiently. | Tighten the hand shower holder securely onto the shower bar. |
Product Specifications
| Model Number | DXLD60087CS |
| Brand | EISL |
| Dimensions (L x W x H) | 36 x 20 x 110 cm |
| Item Weight | 1.71 Kilograms |
| Material | Stainless Steel |
| Color | Silver |
| Finish Type | Polished |
| Number of Handles | 3 (for diverter and temperature/flow control, though only diverter is explicitly mentioned in features) |
| Mounting Type | Wall Mount |
| Rain Shower Head Size | 20 cm (diameter) |
| Country of Origin | China |
Image: Technical drawing showing overall dimensions of the shower column, including total height (1005 mm) and rain shower arm length (340 mm).
Image: Detailed dimensions of the rain shower head (203 mm diameter) and hand shower (229 mm length), along with distances from the wall and between components.
Warranty Information
The EISL DXLD60087CS Shower Column comes with a manufacturer's warranty of 3 years. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions. It does not cover damage resulting from improper installation, misuse, accident, or normal wear and tear.
Customer Support
For further assistance, technical support, or to inquire about replacement parts, please contact EISL customer service. Refer to the contact information provided on the product packaging or the official EISL website.
Please note: Always ensure to turn off the main water supply before attempting any repairs or maintenance that involves disconnecting water lines.
