Stens 275-519 Spindle Pulley Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your Stens 275-519 Spindle Pulley. This pulley is designed as a replacement for MTD OEM part number 756-0980 and is compatible with MTD 600 series lawnmowers with 42-inch decks manufactured in 1999 and newer. Please read these instructions thoroughly before proceeding with any installation or maintenance.

2. Safety Information

WARNING: Always prioritize safety when working with power equipment. Failure to follow safety instructions can result in serious injury or damage to equipment.

• Disconnect Power: Before beginning any work on your lawnmower, ensure the engine is off, the spark plug wire is disconnected, and the battery is disconnected (if applicable) to prevent accidental starting.
• Wear Protective Gear: Always wear appropriate personal protective equipment, including safety glasses, gloves, and sturdy footwear.
• Use Correct Tools: Use only the tools specified or recommended for the task.
• Secure Equipment: Ensure the lawnmower is stable and properly supported before working underneath it.
• Refer to Mower Manual: Always consult your specific lawnmower's owner's manual for detailed safety procedures and component removal/installation instructions.

3. Product Overview

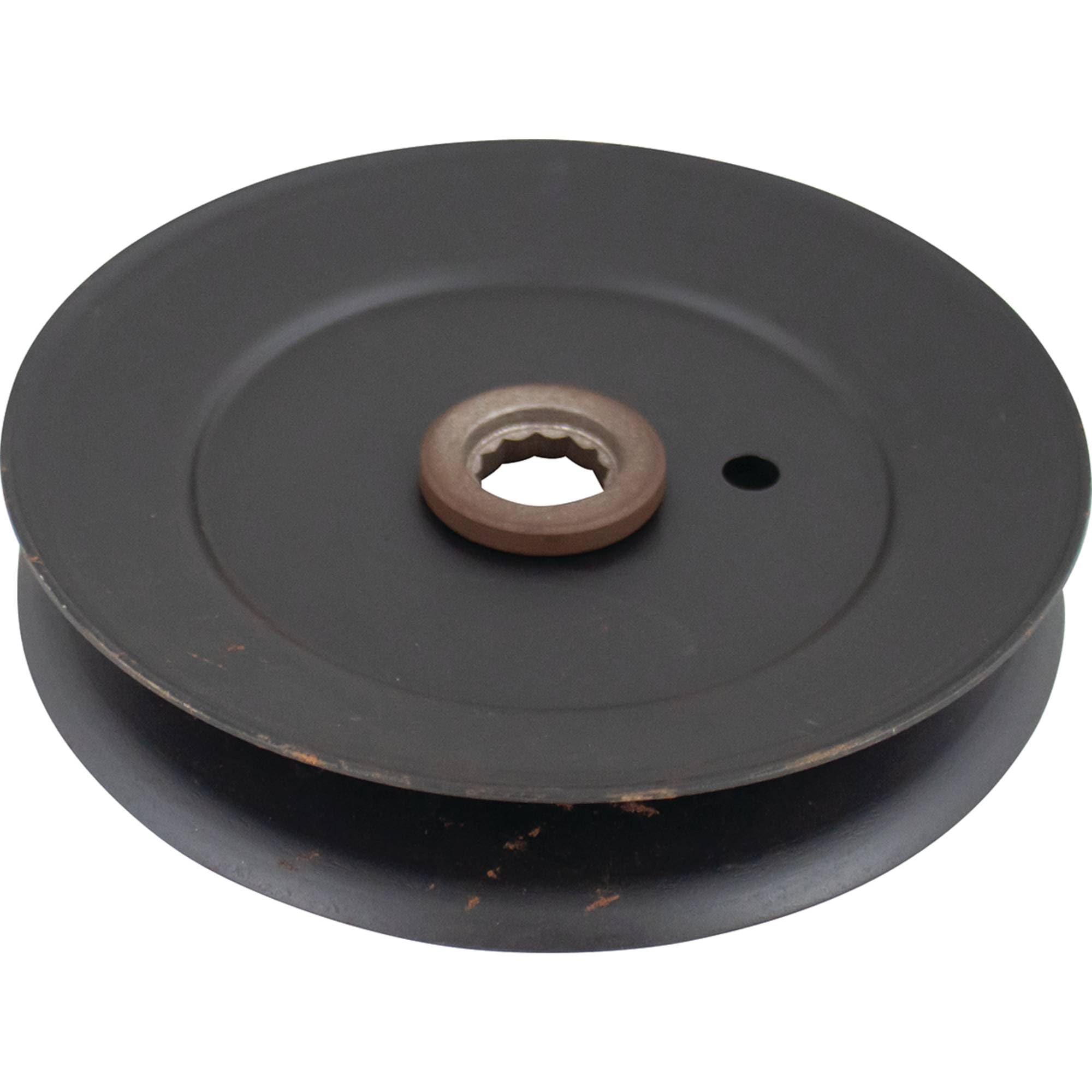

The Stens 275-519 Spindle Pulley is a durable replacement component for your lawnmower's deck spindle assembly. It features a splined center bore for secure attachment and is designed to maintain proper belt tension and power transfer to the mower blades.

4. Compatibility

This Stens 275-519 Spindle Pulley is a direct replacement for the following OEM part and compatible with the specified equipment:

• Replaces OEM Part Number: MTD 756-0980
• Compatible With: MTD 600 series lawnmowers, manufactured in 1999 and newer, equipped with a 42-inch deck.

Always verify the part number and specifications against your existing component and equipment manual before installation to ensure proper fitment.

5. Installation (Setup)

The following steps provide a general guide for replacing a spindle pulley. Specific procedures may vary depending on your lawnmower model. Always refer to your lawnmower's service manual for detailed instructions.

1. Prepare the Mower: Ensure the lawnmower is on a flat, stable surface. Disconnect the spark plug wire and battery. Engage the parking brake.
2. Access the Deck: Carefully raise the mower deck or remove it from the tractor according to your mower's manual.
3. Remove Belt: Loosen any tensioners and carefully remove the drive belt from the spindle pulley.
4. Remove Old Pulley: Locate the bolt or nut securing the old pulley to the spindle shaft. Use appropriate tools to remove it. Note the orientation of any washers or spacers.
5. Inspect Spindle: Before installing the new pulley, inspect the spindle shaft for any damage, wear, or debris. Clean the shaft thoroughly.
6. Install New Pulley: Place the new Stens 275-519 Spindle Pulley onto the spindle shaft, ensuring the splines align correctly. Reinstall any washers or spacers in their original orientation.
7. Secure Pulley: Tighten the retaining bolt or nut to the manufacturer's specified torque. Do not overtighten.
8. Reinstall Belt: Route the drive belt back onto the new pulley and adjust tension as required by your mower's manual.
9. Reassemble and Test: Reattach the mower deck (if removed) and reconnect the spark plug wire and battery. Perform a low-speed test run in a safe area to ensure proper operation and belt tracking.

6. Operating Considerations

Once installed, the spindle pulley functions as an integral part of your mower's deck drive system. Proper operation relies on:

• Correct Belt Tension: Ensure the drive belt is tensioned according to your mower's specifications. Incorrect tension can lead to premature wear of the belt, pulley, or spindle bearings.
• Smooth Rotation: The pulley should rotate freely and smoothly with the spindle. Any binding or excessive wobble indicates a potential issue with the spindle or installation.
• Clearance: Verify that the pulley and belt have adequate clearance from other components and the mower deck.

7. Maintenance

Regular inspection and maintenance can extend the life of your spindle pulley and ensure optimal mower performance.

• Visual Inspection: Periodically inspect the pulley for signs of wear, cracks, bends, or damage. Check the belt groove for debris or excessive wear.
• Belt Condition: Examine the drive belt for fraying, cracking, or glazing. Replace the belt if it shows signs of significant wear.
• Cleanliness: Keep the pulley and surrounding area free of grass clippings, dirt, and other debris that can interfere with belt operation or cause premature wear.
• Bearing Check: While the pulley itself does not contain bearings, it mounts to a spindle that does. Listen for unusual noises (grinding, squealing) from the spindle assembly, which may indicate worn spindle bearings.

8. Troubleshooting

If you experience issues after replacing the spindle pulley, consider the following:

• Belt Slippage: Check belt tension. Ensure the belt is correctly routed and not worn or stretched. Verify the pulley is securely fastened and not wobbling.
• Unusual Noise: A new pulley should not cause new noises. Recheck the installation for proper seating and torque. Inspect the spindle bearings for wear. Ensure no components are rubbing.
• Vibration: Excessive vibration could indicate an improperly installed pulley, a bent spindle shaft, or an unbalanced blade. Recheck all connections and inspect related components.
• Pulley Not Turning: Ensure the belt is properly installed and tensioned. Check for any obstructions preventing rotation. Verify the spindle is not seized.

9. Specifications

10. Warranty Information

This Stens 275-519 Spindle Pulley is covered by a warranty against defects in workmanship for a period of 30 days from the date of purchase. This warranty covers manufacturing defects and does not cover damage resulting from improper installation, misuse, neglect, or normal wear and tear. For warranty claims, please retain your proof of purchase and contact your retailer or Stens customer service.

11. Support

For further assistance, technical questions, or to report issues, please contact your authorized Stens dealer or refer to the official Stens website for customer support contact information. When contacting support, please have your product model number (275-519) and any relevant purchase details available.
