Introduction
This manual provides instructions for the Redi-Remote replacement remote control, designed for specific PANASONIC units. This remote is a custom-built replacement and is not an original PANASONIC product. It is engineered to be compatible with PANASONIC models CQVA707, YEFX9992176, and CQVA707WEUC.
The remote measures approximately 7.5 inches in length, 2.25 inches in width, and 0.75 inches in thickness. It operates using infrared technology and has a maximum effective range of 20 feet.

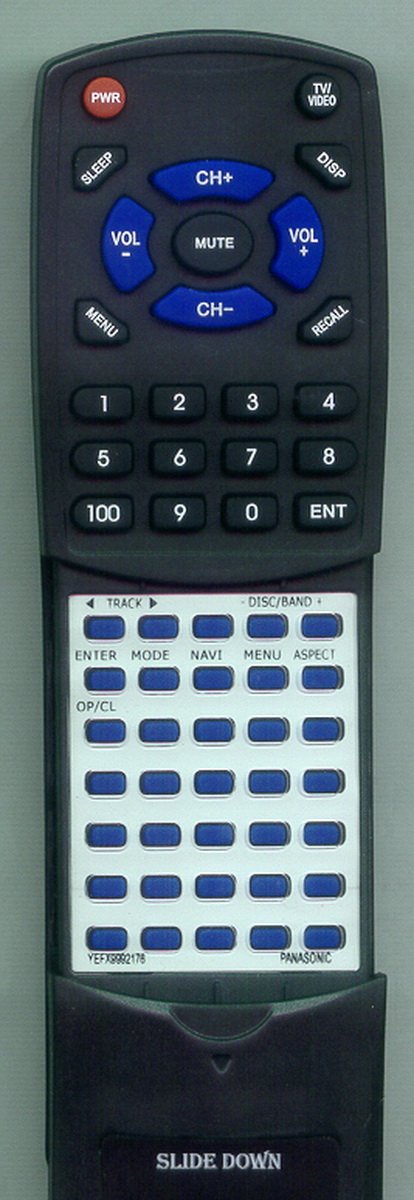

Image of the Redi-Remote replacement remote control, showing its full button layout and ergonomic design.
Setup
Battery Installation
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards or press the latch and lift to open the compartment.
- Insert four (4) AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment. Four AAA batteries are included with the remote.
- Replace the battery compartment cover by sliding it back into place until it clicks securely.
Note: This Redi-Remote control requires no programming. It is pre-configured to operate the specified PANASONIC units immediately after battery installation.
Operating Instructions
Basic Operation
- Direct Control: This remote is designed to control only the specific PANASONIC unit it was purchased for. It cannot be programmed to control auxiliary devices such as televisions or DVD players.
- Infrared Technology: Ensure a clear line of sight between the remote control and the infrared receiver on your PANASONIC unit for optimal performance. Obstructions can interfere with the signal.
- Button Functions: The remote features 58 buttons, each corresponding to a specific function on your PANASONIC unit. Refer to your PANASONIC unit's original manual for detailed descriptions of each function if needed.
- Sliding Cover: A cover is present over the lower half of the remote. Slide this cover downwards to reveal additional buttons and functions.
Range
The maximum effective operating range for this remote control is approximately 20 feet (6 meters).
Maintenance
Battery Replacement
When the remote control's performance diminishes or it stops responding, it is likely time to replace the batteries. Follow the battery installation steps outlined in the "Setup" section. Always replace all four AAA batteries simultaneously with new ones.
Cleaning
To clean the remote control, gently wipe its surface with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, but ensure no moisture enters the remote. Avoid using harsh chemicals or abrasive cleaners.
Storage
Store the remote control in a dry place, away from direct sunlight and extreme temperatures, to prolong its lifespan.
Troubleshooting
- Remote not responding:
- Check if the batteries are inserted correctly with the correct polarity.
- Replace old batteries with new AAA batteries.
- Ensure there are no obstructions between the remote and the PANASONIC unit's infrared receiver.
- Verify that you are within the maximum operating range of 20 feet.
- Certain buttons not working:
- Ensure the sliding cover is positioned correctly to access the desired buttons.
- Clean the remote's surface, especially around the buttons, to remove any debris that might be obstructing them.
- Remote controls other devices:
- This remote is specifically designed for the listed PANASONIC models and cannot be programmed to control other devices. If it appears to be affecting other devices, ensure the PANASONIC unit is the only device in its direct line of sight.
If issues persist after following these steps, please refer to the Support section for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Brand | Redi-Remote |
| Model Number | RTYEFX9992176 |
| Compatible PANASONIC Models | CQVA707, YEFX9992176, CQVA707WEUC |
| Special Feature | No Programming Required |
| Max Number of Supported Devices | 1 |
| Compatible Devices | Car Stereo (referring to the original unit type) |
| Connectivity Technology | Infrared |
| Button Quantity | 58 |
| Maximum Range | 20 Feet (approx. 6 meters) |
| Battery Type | AAA |
| Number of Batteries | 4 (included) |
| Item Weight | 4.5 Ounces (approx. 127 grams) |
| UPC | 791090940559 |
Warranty Information
Specific warranty details for this Redi-Remote product are not provided in the available product information. For any warranty-related inquiries, please contact the seller directly.
Support
If you encounter any issues or have questions regarding your Redi-Remote replacement control after purchase, please contact the seller, RemotesPro, directly for assistance. Their contact information can typically be found on your purchase receipt or order details page.
For general information about Redi-Remote products, you may visit the Redi-Remote brand page on Amazon.
