Tamiya 1:10 RC XV-01 Lancia Delta HF Integrale Instruction Manual

Introduction

This manual provides essential information for the assembly, operation, and maintenance of your Tamiya 1/10 RC Car Series No.569 Lancia Delta Integrale (XV-01 chassis) model. Please read all instructions carefully before beginning assembly or operation to ensure proper function and longevity of your model.

Key Features

4WD chassis with a sealed belt drive.
Front motor configuration.
Electric motor type 540.
Double suspension arm with oil filled shock absorbers.
Sturdy polycarbonate body with 1 mm thickness.

Setup and Assembly

The Tamiya Lancia Delta HF Integrale (XV-01 chassis) is a model kit that requires assembly. Follow the detailed step-by-step instructions provided in the separate assembly manual included in the kit packaging. Ensure all parts are accounted for before starting.

Contents of the Tamiya RC car kit box, showing various plastic parts, chassis components, and the clear car body shell.

Figure 1: Kit contents as packaged, including the clear body shell, chassis parts, and various components.

Required Additional Components (Sold Separately)

This kit does not include all necessary components for operation. You will need to acquire the following:

2-channel RC radio system (transmitter and receiver)
Steering servo
Electronic Speed Controller (ESC)
7.2V battery pack and compatible charger
Polycarbonate paint for the body shell
Tools for assembly (e.g., screwdrivers, hobby knife, pliers)

Chassis Overview

Underside view of the Tamiya XV-01 chassis, showing the layout of the motor, drive belt, battery compartment, and suspension components.

Figure 2: Underside view of the XV-01 chassis, highlighting the front motor and belt drive system.

Close-up of the electronics compartment on the Tamiya XV-01 chassis, showing a receiver and electronic speed controller (ESC) wired in place.

Figure 3: Detail of the electronics housing, designed to protect the receiver and ESC.

Close-up of the rear suspension assembly of the Tamiya XV-01 chassis, showing the oil-filled shock absorbers and double wishbone setup.

Figure 4: Rear suspension detail, featuring oil-filled shocks for improved handling.

Close-up of the side of the Tamiya XV-01 chassis, showing a protective mudguard near the wheel.

Figure 5: Chassis side view with integrated mudguard for debris protection.

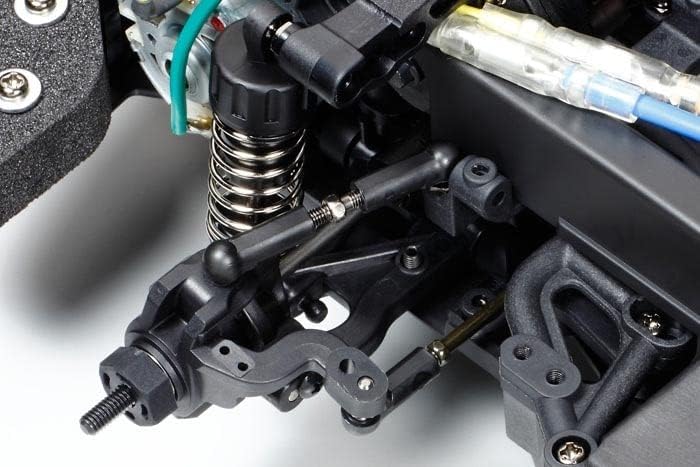

Close-up of the front steering and suspension components of the Tamiya XV-01 chassis, including tie rods and shock absorbers.

Figure 6: Front steering and suspension components, designed for precise control.

Operating Instructions

Once assembled and equipped with all necessary electronics, your RC model is ready for operation. Always ensure your battery is fully charged and your radio system is properly bound and calibrated before use.

Pre-Operation Checklist

Battery fully charged and securely installed.
Transmitter batteries installed and charged.
Radio system (transmitter and receiver) properly linked.
Steering and throttle trims centered.
All screws and fasteners are tight.
Tires are securely mounted and inflated (if applicable).

Basic Operation

Turn on the transmitter first, then the receiver/ESC on the model.
Check for proper steering and throttle response. Adjust trims if necessary.
Operate the model in an open, safe area away from people, pets, and obstacles.
Avoid operating in wet conditions unless the electronics are specifically waterproofed.
When finished, turn off the receiver/ESC first, then the transmitter. Disconnect the battery from the model.

Assembled Tamiya 1:10 RC Lancia Delta HF Integrale model car, featuring the iconic Martini Racing livery.

Figure 7: The completed Tamiya Lancia Delta HF Integrale RC model.

Maintenance

Regular maintenance is crucial for the longevity and performance of your RC model. Perform these checks after every few runs or as needed.

Cleaning: Remove dirt, dust, and debris from the chassis, suspension, and drivetrain. Use a soft brush or compressed air.
Inspecting Screws: Check all screws and fasteners for tightness. Re-tighten any loose ones.
Drivetrain: Inspect the belt drive for wear or damage. Ensure gears are clean and properly meshed.
Suspension: Check shock absorbers for leaks and smooth operation. Inspect suspension arms for cracks or damage.
Bearings: Clean and lubricate bearings periodically. Replace worn bearings.
Tires: Check tires for wear and proper adhesion to the wheels.
Electronics: Ensure all wiring connections are secure. Keep electronics clean and dry.

Troubleshooting

Problem	Possible Cause	Solution
Model does not respond to controls.	Low battery in model or transmitter; radio not linked; ESC not powered on.	Charge/replace batteries; re-link radio system; ensure ESC is switched on.
Steering is erratic or unresponsive.	Loose servo horn; damaged servo; radio interference.	Check servo horn screw; replace servo; operate in a different location.
Motor runs but wheels do not turn.	Loose pinion gear; damaged drivetrain belt or gears.	Tighten pinion screw; inspect and replace damaged drivetrain components.
Model pulls to one side.	Steering trim off; bent steering linkage; uneven suspension.	Adjust steering trim on transmitter; inspect and straighten linkage; check suspension components.

Specifications

Brand: TAMIYA
Model Name: Lancia Delta HF Integrale
Item Model Number: 300058569
Scale: 1:10 Scale
Chassis Type: XV-01 (Front Motor, 4WD Belt Drive)
Material: Plastic
Product Dimensions (L x W x H): 19.2 x 11.6 x 5.7 inches (approx.)
Item Weight: 4.4 pounds (approx.)
Recommended Age: 12 years and up
Special Feature: Encapsulated 4WD belt drive, front motor

Warranty and Support

For detailed warranty information and technical support, please refer to the official documentation provided by Tamiya or visit the official Tamiya website. Keep your proof of purchase for any warranty claims.

Manufacturer: Tamiya
