1. Introduction and Overview
The TRENDnet 8-Port Gigabit GREENnet Switch, model TEG-S82G, is designed to provide high bandwidth performance, ease of use, and reliability for your network. This switch incorporates GREENnet technology, which automatically adjusts power consumption to reduce energy usage by up to 70% without requiring any management. It offers 8 Gigabit Ethernet ports, supporting a total switching capacity of 16 Gbps in full-duplex mode, ensuring smooth data traffic and reducing network bottlenecks. Its compact, lightweight metal housing and fanless design make it suitable for desktop installations and quiet environments.
Figure 1: The TRENDnet 8-Port Gigabit GREENnet Switch (TEG-S82G).
2. Package Contents
Verify that your package contains the following items:
- TRENDnet 8-Port Gigabit GREENnet Switch (TEG-S82G)
- Power adapter (5V DC, 1A)
- Quick Installation Guide
Figure 2: Included items: TEG-S82G switch, power adapter, and quick installation guide.
3. Product Features
- 8 Gigabit RJ-45 Ports: Provides high-speed network connections to devices.
- 16 Gbps Switching Capacity: Allows data traffic to flow smoothly, reducing bottlenecks.
- GREENnet Technology: Reduces power consumption by up to 70% by automatically adjusting power as needed.
- Compact and Lightweight Metal Housing: Durable design suitable for desktop installations.
- Fanless Design: Ensures quiet operation, ideal for noise-sensitive environments.
- Plug-and-Play: Easy setup with no software configuration required.
- Wall Mountable: Offers flexible placement options.
- NDAA + TAA Compliant: Meets U.S. integrity and supply chain standards for government contracts (U.S. and Canada Only).
4. Setup
The TEG-S82G switch is designed for simple plug-and-play installation. No software configuration is required.
- Connect the Power Adapter: Plug the included power adapter into the DC IN port on the rear of the switch and then into a power outlet. The Power LED on the front panel will illuminate.
- Connect Ethernet Devices: Connect your network devices (e.g., computers, network-attached storage, routers) to any of the 8 Gigabit RJ-45 ports using standard Ethernet cables.
- Verify Connection: The Link/ACT LED for each connected port will illuminate to indicate an active connection. If the LED is blinking, it signifies data activity.
Figure 3: Rear view of the TEG-S82G switch showing Gigabit ports and DC IN.

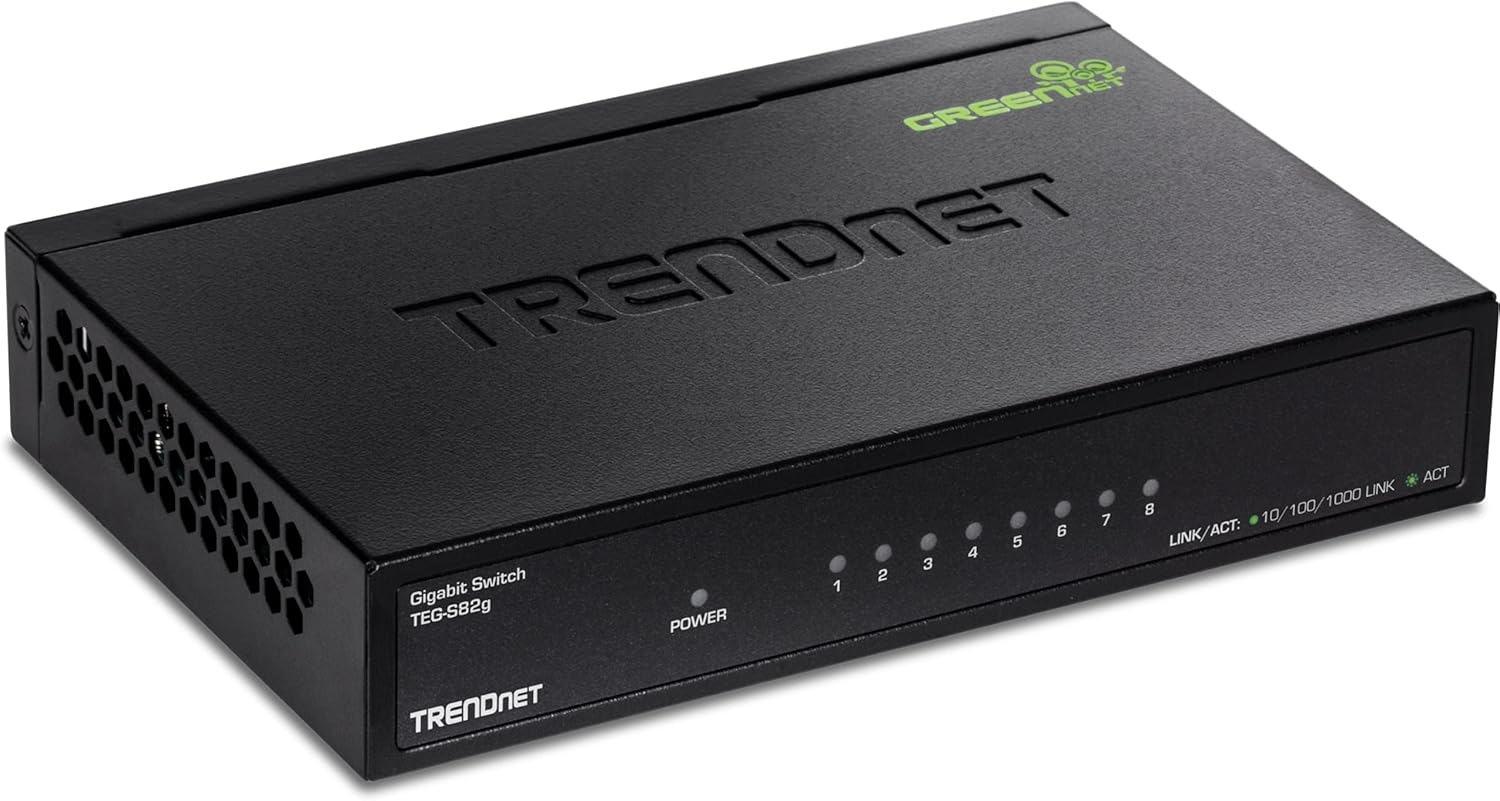

Figure 4: Front view of the TEG-S82G switch showing Power and Link/ACT LEDs.
5. Operating
The TEG-S82G operates automatically once connected. Its GREENnet technology optimizes power usage, and LED indicators provide real-time status updates.
LED Indicators
- Power LED: Illuminates when the switch is powered on.
- Link/ACT LED (per port):
- Solid Green: Indicates a valid network link at 1000 Mbps (Gigabit speed).
- Solid Amber: Indicates a valid network link at 10/100 Mbps.
- Blinking: Indicates data activity on the port.
- Off: No network link detected.
GREENnet Technology
This embedded technology automatically detects the length of the connected Ethernet cable and adjusts power usage accordingly. It also reduces power consumption for inactive ports, contributing to significant energy savings without compromising performance.
Figure 5: GREENnet technology saves up to 70% on energy costs.
6. Maintenance
The TEG-S82G is designed for minimal maintenance. Its fanless operation ensures silent performance and reduces potential points of failure. The sturdy metal housing provides durability and helps dissipate heat efficiently.
- Keep the device in a well-ventilated area to ensure optimal heat dissipation.
- Avoid placing heavy objects on top of the switch.
- Clean the exterior with a soft, dry cloth as needed.
7. Troubleshooting
Most issues with the TEG-S82G can be resolved by checking basic connections and power.
- No Power: Ensure the power adapter is securely connected to the switch and a working power outlet. Check if the Power LED is illuminated.
- No Link Light: Verify that the Ethernet cables are securely connected to both the switch port and the network device. Try using a different Ethernet cable or port. Ensure the connected device is powered on and functioning correctly.
- Slow Connection: Ensure all connected devices and cables support Gigabit Ethernet (Cat5e or higher cables are recommended for Gigabit speeds). Check for excessive network traffic or issues with your internet service provider.
As a plug-and-play device, the switch requires no software configuration, simplifying troubleshooting to physical connections and power status.
8. Specifications
| Product Dimensions | 5.9"L x 3.8"W x 1.1"H |
| Item Weight | 13.4 ounces (380 Grams) |
| Voltage | 5 Volts |
| Case Material | Metal |
| Operating Temperature | 32 to 104 Degrees Fahrenheit |
| Interface Type | RJ45 |
| Data Transfer Rate | 2000 Megabits Per Second (Full Duplex) |
| Current Rating | 1 Amps |
| Number of Ports | 8 |
| Model Number | TEG-S82G |
9. Official Product Videos
Watch these official videos from TRENDnet for more information on the TEG-S82G switch.
Product Overview Video
This video provides a general overview of the TRENDnet 8-Port Gigabit GREENnet Switch, highlighting its key features and benefits.
TRENDnet 8-Port Gigabit GREENnet Switch, TEG-S82G, Ethernet Splitter, Ethernet/Network Switch, 8...
A detailed look at the TRENDnet TEG-S82G, showcasing its functionality as an Ethernet splitter and network switch.
10. Warranty and Support
- Lifetime Manufacturer Protection: The TEG-S82G 8-Port Gigabit GREENnet Switch is secured with Lifetime Manufacturer Protection from TRENDnet (U.S. and Canada Only).
- Reliable Tech Support: Our team of English-speaking advisors, support, and tech experts are available for all your needs during normal business hours.
