Sun Force 38100 100-Watt Solar Power Panel User Manual

1. Introduction

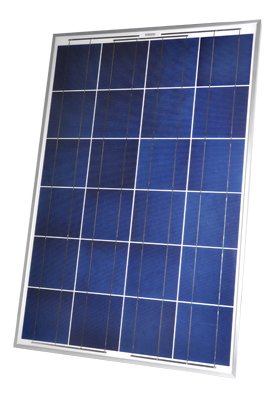

The Sun Force 38100 100-watt Solar Power Panel is designed to provide a clean and efficient source of energy by converting sunlight into electricity. This high-performance panel features crystalline solar cells for increased light absorption and improved efficiency, ensuring reliable power output. It is ideal for various applications including RVs, homes, cabins, remote power systems, and 12V battery charging. The panel is weatherproof, easy to install, and built with an aluminum frame for extended outdoor durability. Its bypass diode helps minimize power loss due to shading, and multiple panels can be connected for greater power generation.

2. Safety Information

Please read and understand all safety instructions before installing or operating the solar panel. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Hazard: Solar panels generate electricity when exposed to light. Handle with care. Do not touch bare wires or terminals.
• Installation: Installation should be performed by qualified personnel. Ensure all wiring is correctly polarized and securely connected.
• Mounting: Mount the panel securely to prevent it from falling, especially in windy conditions.
• Handling: Do not drop or place heavy objects on the solar panel. Avoid scratching the glass surface.
• Maintenance: Disconnect the panel from any power source before performing maintenance or cleaning.
• Environment: Do not immerse the panel in water or other liquids. Keep away from flammable materials.

3. Package Contents

Verify that all components are present before beginning installation:

• 1x Sun Force 38100 100-Watt Solar Power Panel
• User Manual (this document)
• (Additional mounting hardware or cables may be sold separately)

4. Setup and Installation

The Sun Force 38100 solar panel is designed for easy installation and is suitable for various applications. Follow these guidelines for optimal performance:

1. Choose a Location: Select a location that receives maximum direct sunlight throughout the day, free from shadows cast by trees, buildings, or other obstructions. The panel is weatherproof and designed for outdoor use.
2. Mounting: Securely mount the solar panel using appropriate hardware (not included) to a stable surface. The aluminum frame provides a durable mounting structure. Ensure the panel is angled towards the sun for best efficiency, typically at an angle equal to your latitude.
3. Wiring: Connect the solar panel to a charge controller (recommended, sold separately) and then to a 12V battery system. Ensure correct polarity (+ to + and - to -) to prevent damage. The panel is equipped with a USB connector type, which may require an adapter for direct battery charging or specific charge controllers.
4. Multiple Panels: For increased power output, multiple Sun Force 38100 panels can be connected in series or parallel. Consult a qualified electrician or solar specialist for complex multi-panel installations to ensure proper voltage and current matching. The integrated bypass diode helps minimize power loss if a portion of the panel is shaded.
5. Initial Check: Once installed, verify all connections are secure and the panel is receiving sunlight. The charge controller (if used) should indicate power generation.

5. Operation

The Sun Force 38100 solar panel operates automatically when exposed to sunlight. Its high-efficiency crystalline solar cells convert solar energy into electrical power.

• Power Generation: The panel will begin generating power as soon as it is exposed to sufficient sunlight. The maximum power output is 100 Watts at 5.8 Amps under ideal conditions (Standard Test Conditions: 1000W/m², 25°C, AM1.5).
• Charge Controller: It is highly recommended to use a compatible charge controller with your 12V battery system. A charge controller regulates the voltage and current from the solar panel to the battery, preventing overcharging and optimizing battery life.
• Monitoring: If your system includes a charge controller with a display, monitor the charging status and power output to ensure optimal performance.

6. Maintenance

The Sun Force 38100 solar panel is designed for maintenance-free performance. However, periodic checks and cleaning can ensure optimal efficiency and longevity.

• Cleaning: Regularly clean the glass surface of the solar panel to remove dust, dirt, leaves, or other debris that may accumulate and reduce efficiency. Use a soft cloth and mild soapy water. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically inspect the panel for any physical damage, such as cracks in the glass, bent frames, or loose connections. Check wiring for signs of wear or corrosion.
• Shading: Ensure the panel remains free from shading throughout the day. Trim any overhanging branches or remove new obstructions that may block sunlight.

7. Troubleshooting

If your solar panel system is not performing as expected, refer to the following common issues and solutions:

8. Specifications

9. Warranty and Support

For warranty information or technical support regarding your Sun Force 38100 100-Watt Solar Power Panel, please contact SUNFORCE PRODUCTS INC directly. Refer to their official website or product packaging for the most current contact details and warranty terms.

Manufacturer: SUNFORCE PRODUCTS INC
