Product Overview
This manual provides instructions for the installation, operation, and maintenance of the Baby Lock Serger Upper Knife, model 408-9101-01B. This precision component is essential for the cutting mechanism of your serger, ensuring clean and consistent fabric edges.
Compatible Models: BL3200, BL3-318, BL3-408, BL3-416, BL3-418, BL4-436, BL4-714, and Simplicity SL800 serger machines.

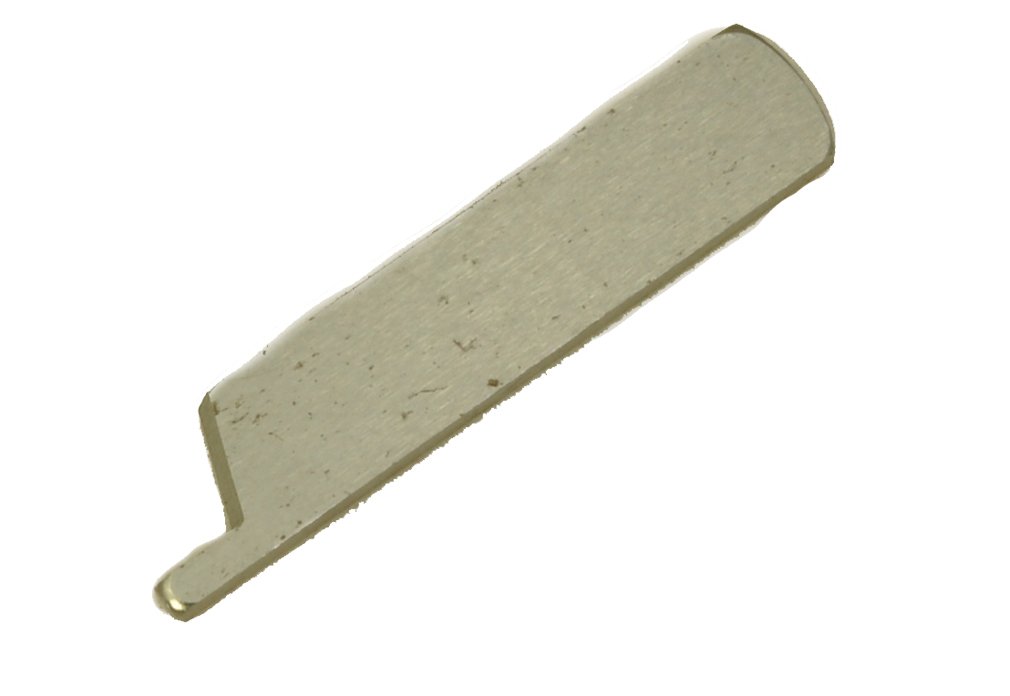

Image: Baby Lock Serger Upper Knife, model 408-9101-01B. This image displays the replacement upper knife, a sharp metal component designed for cutting fabric during serging operations.
Setup and Installation
Proper installation of the upper knife is crucial for optimal serger performance and safety. Always refer to your specific serger machine's instruction manual for detailed, model-specific knife replacement procedures. The following are general steps:
- Safety First: Turn off and unplug your serger machine from the power outlet before beginning any maintenance or installation.
- Access the Knife Area: Open the front and/or side covers of your serger to access the knife mechanism.
- Remove Old Knife: Locate the screws holding the upper knife in place. Using the appropriate screwdriver (often included with your serger), carefully loosen and remove these screws. Gently remove the old upper knife. Be cautious as the old knife may still be sharp.
- Clean the Area: Use a small brush or lint-free cloth to clean any lint or debris from the knife area.
- Install New Knife: Position the new Baby Lock Upper Knife (model 408-9101-01B) into its designated slot. Ensure it is seated correctly and aligned with the lower knife.
- Secure the Knife: Insert and tighten the screws to secure the new upper knife firmly. Do not overtighten.
- Test Alignment: Manually turn the handwheel to ensure the upper and lower knives meet and cut properly without obstruction. Adjust if necessary.
- Close Covers: Close all serger covers and plug the machine back in.
- Function Test: Perform a test stitch on a scrap piece of fabric to confirm proper cutting and serging.
If you are unsure about any step, consult a qualified technician or your serger's comprehensive manual.
Operating Principles
The upper knife works in conjunction with the lower knife to trim the fabric edge precisely before the serger stitches are formed. This action creates a clean, professional finish and prevents fabric fraying. A sharp upper knife is critical for achieving consistent, high-quality serged seams.
- Ensure the knife is engaged when you want to trim fabric. Most sergers have a mechanism to disengage the knife if you only want to stitch without trimming.
- Always feed fabric smoothly towards the knife to prevent uneven cuts or damage to the blade.
Maintenance
Regular maintenance of your serger's cutting system, including the upper knife, will extend its lifespan and ensure optimal performance.
- Cleaning: After each use, or regularly depending on usage, use a small brush to remove lint and fabric fibers that accumulate around the knife area. Accumulated debris can hinder the knife's movement and cutting efficiency.
- Inspection: Periodically inspect the upper knife for signs of dullness, nicks, or damage. A dull knife will result in frayed edges or skipped cuts.
- Replacement: The upper knife is a consumable part and will eventually become dull with use. Replace the knife when you notice a decrease in cutting performance, even after cleaning. The frequency of replacement depends on the type and volume of fabric being cut.
- Storage: When not in use, ensure the serger is covered to protect the knife and other components from dust and environmental factors.
Troubleshooting
If you experience issues related to fabric cutting, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Frayed or uneven fabric edges | Dull upper knife, improper knife alignment, lint accumulation. | Replace upper knife, check knife alignment (refer to serger manual), clean knife area. |
| Fabric not cutting cleanly | Dull upper knife, knife disengaged, fabric too thick for current settings. | Replace upper knife, ensure knife is engaged, adjust differential feed or presser foot pressure. |
| Knife hitting other parts | Improper knife installation or alignment. | Re-install and align the upper knife carefully. If issue persists, consult a technician. |
Always ensure your serger is unplugged before inspecting or adjusting any internal components.
Specifications
- Brand: Baby Lock
- Model Number: 408-9101-01B
- Part Number: 408-9101-01B
- Item Weight: 16 ounces (approximate shipping weight)
- UPC: 616469482303
- Compatible Serger Models: BL3200, BL3-318, BL3-408, BL3-416, BL3-418, BL4-436, BL4-714, Simplicity SL800
Warranty and Support
Specific warranty information for this replacement part may vary depending on the retailer or manufacturer. Please retain your proof of purchase.
- Warranty: For warranty details, please contact the vendor from whom you purchased this upper knife or refer to the official Baby Lock website for general parts warranty policies.
- Technical Support: For technical assistance regarding your serger machine or the installation of this part, consult your serger's original instruction manual or contact Baby Lock customer support directly.
