HOFSTEIN Kasan Outdoor Floor Lamp Instruction Manual

1. Product Overview

The HOFSTEIN Kasan Outdoor Floor Lamp is a modern, elegant lighting solution designed for outdoor spaces. Constructed from weather-resistant stainless steel with a white plastic lampshade, it provides ambient lighting for entrances, garden beds, paths, verandas, or terraces. This lamp is equipped with an E27 socket, compatible with LED, eco-halogen, and energy-saving bulbs up to 60 watts. Its IP44 rating ensures protection against solid objects larger than 1mm and splashes of water from any direction.

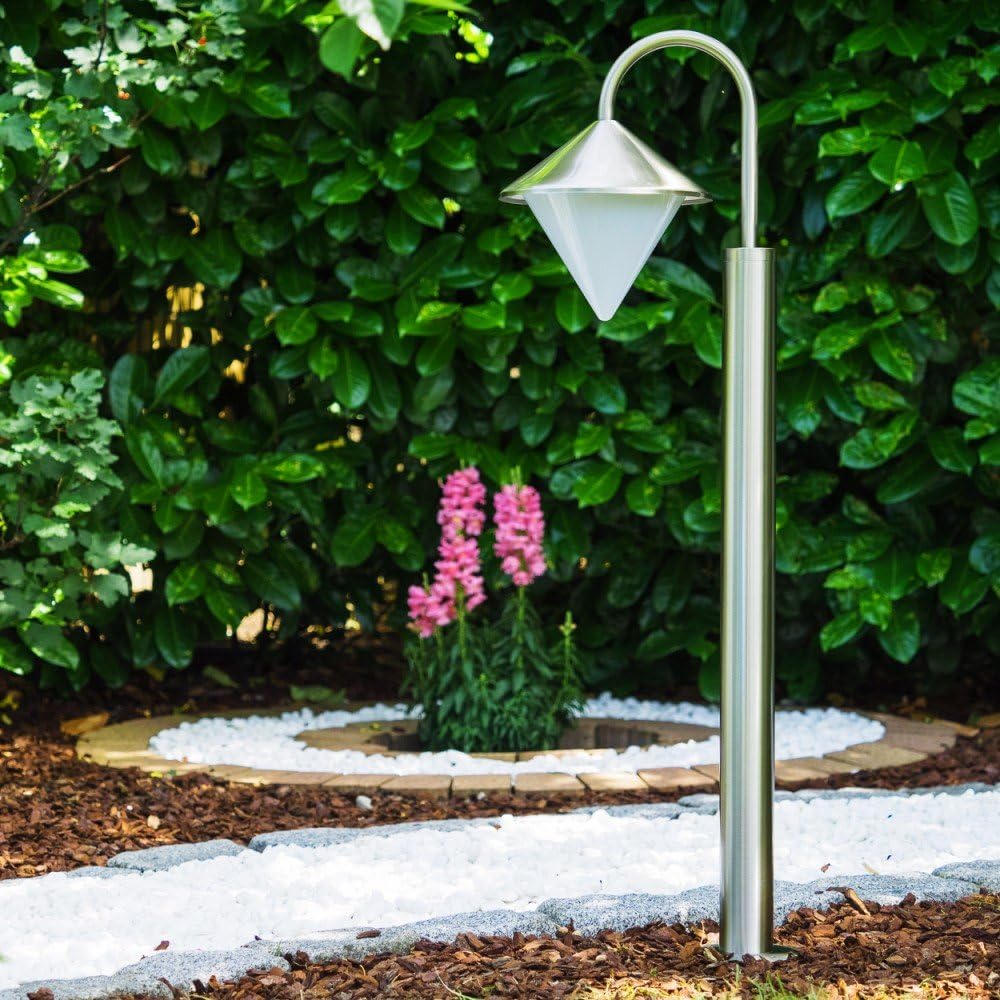

Image 1.1: The HOFSTEIN Kasan Outdoor Floor Lamp installed in a garden, showcasing its modern design and stainless steel finish.

2. Safety Information

• Always disconnect power before installation, maintenance, or bulb replacement.
• Installation should be performed by a qualified electrician in accordance with local wiring regulations.
• Ensure the lamp is securely mounted on a stable surface.
• Do not exceed the maximum wattage of 60W for the E27 bulb.
• This product is rated IP44 for outdoor use, protecting against splashing water. Do not submerge in water.
• Keep children and pets away from the installation area.

3. Package Contents

Verify that all components are present before beginning installation.

• 1 x HOFSTEIN Kasan Outdoor Floor Lamp unit (stainless steel pole, lampshade, E27 socket)
• Mounting hardware (screws, anchors) - Note: Specific mounting hardware may vary. Ensure suitability for your installation surface.
• Instruction Manual

Note: Light bulb is not included.

4. Setup and Installation

Follow these steps for proper installation of your outdoor floor lamp.

4.1 Tools Required (Not Included)

• Screwdriver
• Drill (if mounting to a solid surface)
• Wire strippers
• Electrical tape
• Measuring tape
• Pencil

4.2 Mounting the Lamp

1. Choose Location: Select a suitable outdoor location with access to a power supply. Ensure the surface is level and stable.
2. Mark Drilling Points: Place the lamp's base on the desired mounting spot. Use a pencil to mark the positions for the mounting screws.


   Image 4.1: The base of the lamp showing the two mounting holes, approximately 8.5 cm apart. This image helps in marking the correct drilling points for secure installation.
3. Drill Holes: Drill pilot holes at the marked points. Use an appropriate drill bit size for the provided anchors and screws.
4. Secure Base: Insert anchors into the drilled holes (if required for your surface). Position the lamp base over the holes and secure it firmly with the screws.

4.3 Electrical Connection

WARNING: Ensure power is OFF at the main circuit breaker before proceeding with electrical connections.

1. Prepare Wires: Carefully strip the insulation from the power supply wires and the lamp's internal wires, exposing approximately 1 cm of copper.
2. Connect Wires: Connect the live (brown/red), neutral (blue/black), and earth (green/yellow) wires from your power supply to the corresponding terminals inside the lamp's wiring compartment. Ensure connections are tight and secure.
3. Insulate Connections: Use electrical tape or appropriate connectors to insulate all exposed wire connections.
4. Close Compartment: Carefully tuck all wires into the wiring compartment and securely close the cover to maintain the IP44 rating.

4.4 Installing the Bulb

1. Select Bulb: Choose an E27 bulb with a maximum wattage of 60W. LED bulbs are recommended for energy efficiency.
2. Insert Bulb: Carefully screw the E27 bulb into the lamp's socket until it is snug. Do not overtighten.
3. Attach Lampshade: Secure the white plastic lampshade onto the lamp unit according to the design.


   Image 4.2: A detailed view of the lamp's upper section, highlighting the conical lampshade and the curved arm. This shows the area where the bulb is installed and the shade is secured.

5. Operating Instructions

Once installed and connected to power, the HOFSTEIN Kasan Outdoor Floor Lamp operates via your external power switch. There are no integrated switches on the lamp itself.

• Turning On/Off: Use the wall switch or external timer connected to the lamp's power supply to turn the light on or off.
• Bulb Replacement: Refer to Section 6.1 for instructions on replacing the light bulb.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your lamp.

6.1 Cleaning

• Disconnect Power: Always turn off the power supply before cleaning.
• Stainless Steel: Wipe the stainless steel parts with a soft, damp cloth. For stubborn dirt, use a mild stainless steel cleaner. Avoid abrasive cleaners or scouring pads, which can scratch the surface.
• Plastic Lampshade: Clean the plastic lampshade with a soft, damp cloth and mild soap solution. Rinse thoroughly and dry.
• Inspection: Periodically inspect the lamp for any signs of damage, loose connections, or wear.

6.2 Bulb Replacement

• Disconnect Power: Turn off the power supply to the lamp.
• Allow to Cool: If the lamp has been on, allow the bulb to cool completely before handling.
• Remove Lampshade: Carefully detach the plastic lampshade.
• Unscrew Old Bulb: Unscrew the old E27 bulb counter-clockwise.
• Insert New Bulb: Screw in a new E27 bulb (max 60W) clockwise until secure.
• Reattach Lampshade: Securely reattach the plastic lampshade.
• Restore Power: Turn the power supply back on.

7. Troubleshooting

8. Specifications

Image 8.1: The outdoor lamp with key dimensions: total height 100cm, lampshade diameter 23.5cm, and base diameter 13cm.

9. Warranty and Support

For warranty information and customer support, please refer to the retailer's policy or contact HOFSTEIN directly through their official channels. Keep your purchase receipt as proof of purchase.

HOFSTEIN is committed to providing high-quality lighting solutions and customer satisfaction. For further assistance, visit the HOFSTEIN store on Amazon or their official website.
