1. Introduction
Welcome and thank you for choosing the Kerbl Euroguard DUO NA 2300 electric fence energizer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your device. Please read these instructions carefully before use and retain them for future reference.
The Euroguard DUO NA 2300 is designed for normal fences, even with vegetation growth, suitable for horses, cattle, and sheep. It features the latest device technology, microprocessor control, optimized energy consumption, and deep discharge protection for 12V operation.
2. Safety Instructions
Important Safety Information
- Read all instructions before operating the device.
- Ensure proper grounding of the energizer.
- Do not connect the energizer to the mains supply and a 12V battery simultaneously.
- Keep children and animals away from the electric fence.
- Regularly inspect the fence and energizer for damage.
- Disconnect power before performing any maintenance or repairs.
- Use only original Kerbl accessories and spare parts.
- Avoid installing the energizer in damp or wet conditions unless specifically designed for outdoor use.
3. Product Features
Key Features
- Duo device for normal fences: 12 V and 230 V operation.
- Microprocessor controlled.
- Two power levels (high/low) for adaptable use.
- Optimized energy consumption.
- With deep discharge protection for 12 V operation.
4. Setup and Installation
4.1 Unpacking
Carefully remove all components from the packaging. Verify that all parts are present.
Figure 1: The Kerbl Euroguard DUO NA 2300 electric fence energizer unit, showing its green casing, control panel, and connection terminals.
4.2 Power Supply Connection
The Euroguard DUO NA 2300 can be operated with either 230V mains power or a 12V battery.
4.2.1 230V Mains Operation
Connect the provided 230V power adapter to the energizer's input port and then plug it into a standard wall outlet.
Figure 2: The 230V power adapter used to power the energizer from a standard electrical outlet.
4.2.2 12V Battery Operation
Use the supplied connection cables to connect the energizer to a 12V deep cycle battery. Ensure correct polarity: red to positive (+), black to negative (-).

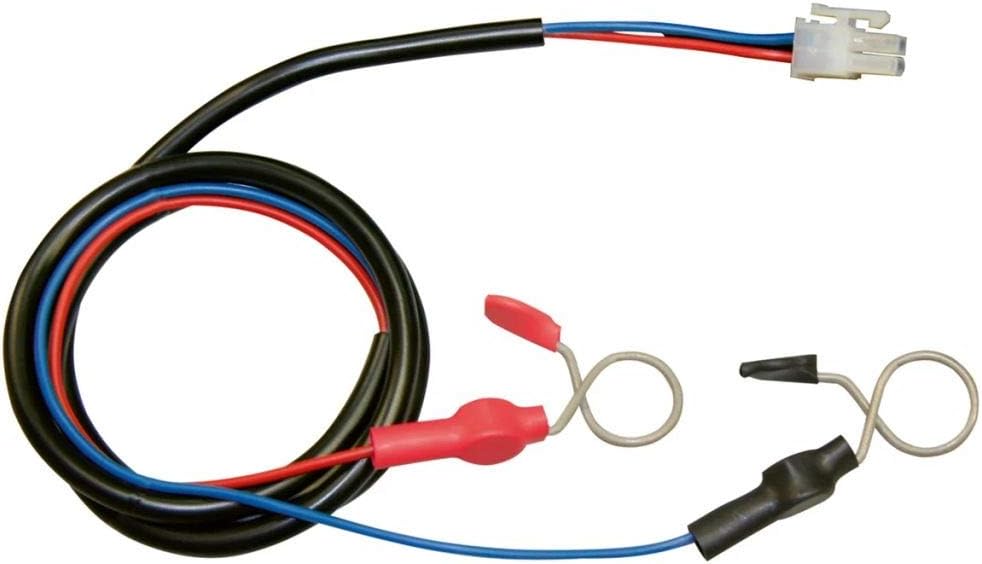

Figure 3: The red and blue connection cables with clips for connecting the energizer to a 12V battery.
4.3 Fence and Grounding Connections
Connect the fence line to the red terminal marked with a lightning bolt symbol. Connect the ground rod (not included) to the black terminal marked with a ground symbol. Ensure the ground rod is driven deep into moist soil for effective grounding.
5. Operating Instructions
5.1 Powering On/Off
Once connected to a power source, the energizer will automatically power on. To turn off, disconnect the power source.
5.2 Power Level Selection
The device features two power levels (high/low). Refer to the device's control panel or specific markings for selecting the desired power output. The optimal setting depends on fence length and vegetation.
5.3 Indicator Lights
Observe the indicator lights on the control panel for operational status:
- Green Light: Indicates normal operation and sufficient fence voltage.
- Red Light: May indicate a fault, low battery (for 12V operation), or insufficient fence voltage.
- Battery Symbol: (If present) Indicates battery status during 12V operation.
6. Maintenance
Care and Maintenance
- Regular Inspection: Periodically check the energizer, fence lines, and connections for any damage, corrosion, or loose parts.
- Cleaning: Keep the energizer clean and free from dust and debris. Use a dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- Battery Care (12V operation): If using a 12V battery, ensure it is regularly charged and maintained according to the battery manufacturer's instructions to prevent deep discharge. The energizer has built-in deep discharge protection.
- Winter Storage: If storing the energizer for an extended period, especially during winter, disconnect it from all power sources and store it in a dry, protected area.
7. Troubleshooting
Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/indicator lights off | No power supply; faulty connection; blown fuse (internal) | Check power adapter/battery connection; ensure outlet is live; contact service for fuse replacement. |
| Weak pulse/low fence voltage | Poor grounding; fence short circuit; heavy vegetation; low battery | Improve grounding; clear vegetation; check fence for breaks/shorts; recharge/replace battery. |
| Red indicator light on | Low battery (12V); fence fault; internal issue | Check battery charge; inspect fence for shorts; if problem persists, contact support. |
If the problem persists after attempting these solutions, please contact Kerbl customer support.
8. Specifications
Technical Specifications
| Feature | Detail |
|---|---|
| Manufacturer | Kerbl |
| Model Number | DUO NA 2300 |
| Reference Number | 4035738007348 |
| Power Supply | 12 V DC / 230 V AC |
| Input Energy | 3.2 Joules |
| Max. Voltage | 12,000 Volts |
| Package Dimensions | 35 x 25 x 11 cm |
| Weight | 2.07 Kilograms |
| Batteries Included | No |
| Batteries Required | No (for 230V operation) |
| ASIN | B00BIV2T2W |
9. Warranty and Support
Warranty Information
Kerbl products are manufactured to high-quality standards. For warranty details, please refer to the warranty card included with your product or visit the official Kerbl website.
Customer Support
For technical assistance, spare parts, or service inquiries, please contact your local Kerbl dealer or visit the official Kerbl website for contact information. When contacting support, please have your model number (DUO NA 2300) and reference number (4035738007348) available.
