SKF VKJC4872 Driveshaft Instruction Manual

1. Introduction

This manual provides essential information for the SKF VKJC4872 Driveshaft, a high-quality repair kit designed for specific Audi models. The driveshaft is a critical component of your vehicle's drivetrain, transmitting power from the transmission to the wheels. This SKF repair kit is engineered to meet Original Equipment (OE) specifications, ensuring a safe and durable repair.

For optimal performance and safety, it is crucial to follow all instructions outlined in this manual and any supplementary documentation provided by SKF or the vehicle manufacturer.

2. Safety Information

WARNING: Improper installation or handling of automotive components can lead to serious injury or vehicle damage. Always prioritize safety.

• Professional Installation Required: This product must be installed by a qualified mechanic with the appropriate tools and equipment.
• Follow Instructions: Strictly adhere to the installation instructions provided by SKF and the vehicle's assembly manual.
• Vehicle Safety: SKF places the highest priority on vehicle safety. Our high-quality parts are designed for safe and lasting repairs.
• Personal Protective Equipment (PPE): Always wear appropriate PPE, including safety glasses and gloves, during installation.
• Vehicle Support: Ensure the vehicle is securely supported on a lift or jack stands before beginning any work. Never work under a vehicle supported only by a jack.

3. Vehicle Compatibility

The SKF VKJC4872 Driveshaft is compatible with the following Audi A6 models. Please verify compatibility with your specific vehicle using the product search bar or by consulting your vehicle's service manual.

• Audi A6 Avant 2.5 TDI Quattro (1997 - 2005) 132 kW
• Audi A6 Avant 2.5 TDI (1997 - 2005) 120 kW
• Audi A6 Avant 2.5 TDI (1997 - 2005) 132 kW
• Audi A6 Avant 2.5 TDI (1997 - 2005) 110 kW
• Audi A6 Sedan 2.4 (1997 - 2005) 121 kW
• Audi A6 Avant 2.4 (1997 - 2005) 121 kW
• Audi A6 Avant 2.5 TDI (1997 - 2005) 114 kW
• Audi A6 Sedan 2.5 TDI (1997 - 2005) 110 kW
• Audi A6 Avant 3.0 Quattro (1997 - 2005) 162 kW
• Audi A6 Avant 2.8 Quattro (1997 - 2005) 142 kW

4. Installation and Setup

The SKF VKJC4872 is provided as a complete repair kit, ready for assembly. Installation of a driveshaft requires specialized knowledge and tools. It is imperative that this procedure is carried out by a qualified professional.

General Installation Guidelines:

1. Preparation: Ensure the vehicle is safely lifted and secured. Remove the wheel and any components obstructing access to the old driveshaft.
2. Removal of Old Driveshaft: Carefully disconnect the old driveshaft from both the transmission/differential and the wheel hub, following vehicle-specific procedures.
3. Inspection: Inspect surrounding components (e.g., seals, bearings, suspension parts) for wear or damage and replace as necessary.
4. Installation of New Driveshaft: Install the new SKF VKJC4872 driveshaft, ensuring proper alignment and secure fastening of all bolts and nuts to the manufacturer's specified torque settings.
5. Final Checks: After installation, perform a thorough check of all connections and ensure there is no interference with other vehicle components.
6. QR Code for Detailed Instructions: For comprehensive, step-by-step installation instructions and technical data, scan the QR code located on the product packaging label. This will provide access to SKF's official installation guides.

Figure 1: Complete SKF VKJC4872 Driveshaft assembly.

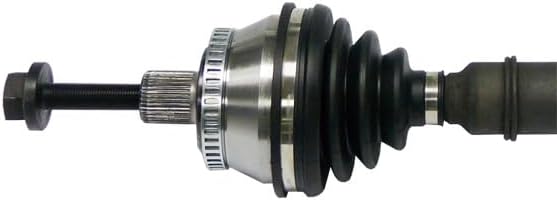

Figure 2: Detail of the outer Constant Velocity (CV) joint and splined shaft.

Figure 3: Alternative perspective of the outer CV joint, emphasizing boot integrity.

Figure 4: Detail of the inner CV joint with its mounting flange.

5. Operating Principles

Once correctly installed, the SKF VKJC4872 Driveshaft operates as an integral part of your vehicle's power transmission system. It is designed to transfer rotational power from the vehicle's transmission or differential to the wheel hub, allowing for smooth power delivery even during suspension travel and steering movements.

The Constant Velocity (CV) joints at each end of the driveshaft allow for changes in angle and length, accommodating the dynamic movements of the suspension and steering system without binding or loss of power.

A properly functioning driveshaft should operate quietly and without vibration. Any unusual noises, vibrations, or clunking sounds after installation or during vehicle operation may indicate an issue that requires immediate attention from a qualified mechanic.

6. Maintenance

The SKF VKJC4872 Driveshaft is designed for long-term durability and typically requires minimal maintenance beyond regular vehicle inspections. However, proactive checks can help identify potential issues early.

• Regular Visual Inspection: During routine vehicle maintenance (e.g., oil changes, tire rotations), visually inspect the driveshaft boots for any signs of cracks, tears, or leaks. Damaged boots can lead to grease loss and contamination of the CV joints, causing premature wear.
• Listen for Unusual Noises: Pay attention to any clicking, clunking, or popping sounds, especially when turning or accelerating, as these can be indicators of CV joint wear.
• Check for Vibrations: Unexplained vibrations, particularly at certain speeds, could also signal a driveshaft issue.
• Professional Assessment: If any signs of wear, damage, or unusual symptoms are observed, consult a qualified mechanic for a professional assessment and necessary repairs.

7. Troubleshooting

While the SKF VKJC4872 Driveshaft is a robust component, issues can sometimes arise, often related to installation or other vehicle systems. This section provides general troubleshooting guidance.

Common Symptoms and Potential Causes:

• Clicking or Popping Noise (especially when turning):
  • Potential Cause: Worn or damaged outer CV joint.
  • Action: Inspect the outer CV joint boot for tears and check for excessive play in the joint.
• Clunking Noise (during acceleration or shifting):
  • Potential Cause: Worn or damaged inner CV joint.
  • Action: Inspect the inner CV joint boot and check for play.
• Vibration (especially at highway speeds):
  • Potential Cause: Driveshaft imbalance, bent shaft, or worn CV joints.
  • Action: Check for physical damage to the shaft or boots. Ensure proper installation and torque of all fasteners.
• Grease Leaks from Boots:
  • Potential Cause: Damaged or improperly clamped CV joint boot.
  • Action: Replace the boot immediately to prevent joint contamination and failure.
• Product Does Not Fit (as per a customer review):
  • Potential Cause: Incorrect part selection for the specific vehicle model/year/engine, or manufacturing variance.
  • Action: Double-check the vehicle's exact specifications against the product's compatibility list and OEM part numbers. Contact the supplier or SKF support if discrepancies persist.

If you experience any of these symptoms, it is highly recommended to have your vehicle inspected by a certified mechanic. Attempting to drive with a faulty driveshaft can compromise vehicle safety and lead to further damage.

8. Specifications

9. Warranty and Support

For information regarding the warranty of your SKF VKJC4872 Driveshaft, please refer to the warranty documentation included with your purchase or visit the official SKF website. Warranty terms and conditions may vary by region and retailer.

If you require technical assistance, have questions about product compatibility, or need support with installation, please contact SKF customer service or your authorized SKF dealer. Contact information can typically be found on the SKF official website or on the product packaging.

SKF is committed to providing high-quality automotive parts and support to ensure your vehicle's safety and performance.
