Introduction
This manual provides instructions for the safe and effective use of the EZ RED BK520 Side Battery Lifter. Please read this manual thoroughly before operation and retain it for future reference to ensure proper handling and longevity of the tool.
Safety Information
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling batteries.
- Ensure the battery lifter is securely attached to the battery before attempting to lift.
- Lift batteries slowly and carefully, maintaining a stable grip and balanced posture.
- Avoid lifting batteries over your head or in awkward positions that could strain your back.
- Inspect the lifter for any damage, wear, or loose components before each use. Do not use if the tool appears compromised.
- Keep hands and fingers clear of all moving parts and potential pinch points during operation.
- Do not attempt to lift batteries that exceed the physical capacity or grip range of this tool.
Product Overview
The EZ RED BK520 Side Battery Lifter is a specialized tool designed to facilitate the safe and easy lifting and transportation of automotive batteries. Its robust construction and ergonomic design aim to reduce strain during battery handling tasks.
Key Features:
- Comfort Grip Anti-Slip Handle: Provides a secure and comfortable hold during lifting.
- Secure and Adjustable Grip: Adapts to various battery widths for a firm hold.
- Durable Design: Constructed from strong materials for long-lasting performance.
Image: The EZ RED BK520 Side Battery Lifter, highlighting its comfort grip anti-slip handle and secure, adjustable gripping mechanism.
Setup
The EZ RED BK520 Side Battery Lifter is designed for immediate use and requires no assembly. Before initial operation, ensure that the adjustable gripping mechanism moves freely and that all components are intact and undamaged.
Operating Instructions
- Adjust the Lifter: Position the adjustable side of the lifter to accommodate the width of the battery. The lifter is designed to securely hold batteries with widths typically ranging from 5 to 7 inches.
- Secure the Grip: Carefully place the lifter over the battery. Ensure that both gripping pads are firmly seated against the opposing sides of the battery. The design of the lifter utilizes the battery's weight to enhance the gripping action.
- Lift the Battery: Grasp the comfort grip handle firmly with one hand. Lift the battery slowly and steadily, keeping your back straight and engaging your leg muscles to perform the lift, rather than bending at the waist.
- Transport: With the battery securely held, carefully transport it to the desired location. Maintain a clear path and be mindful of your surroundings.
- Release the Battery: Once the battery is safely positioned on a stable surface, gently lower the lifter and disengage it from the battery.

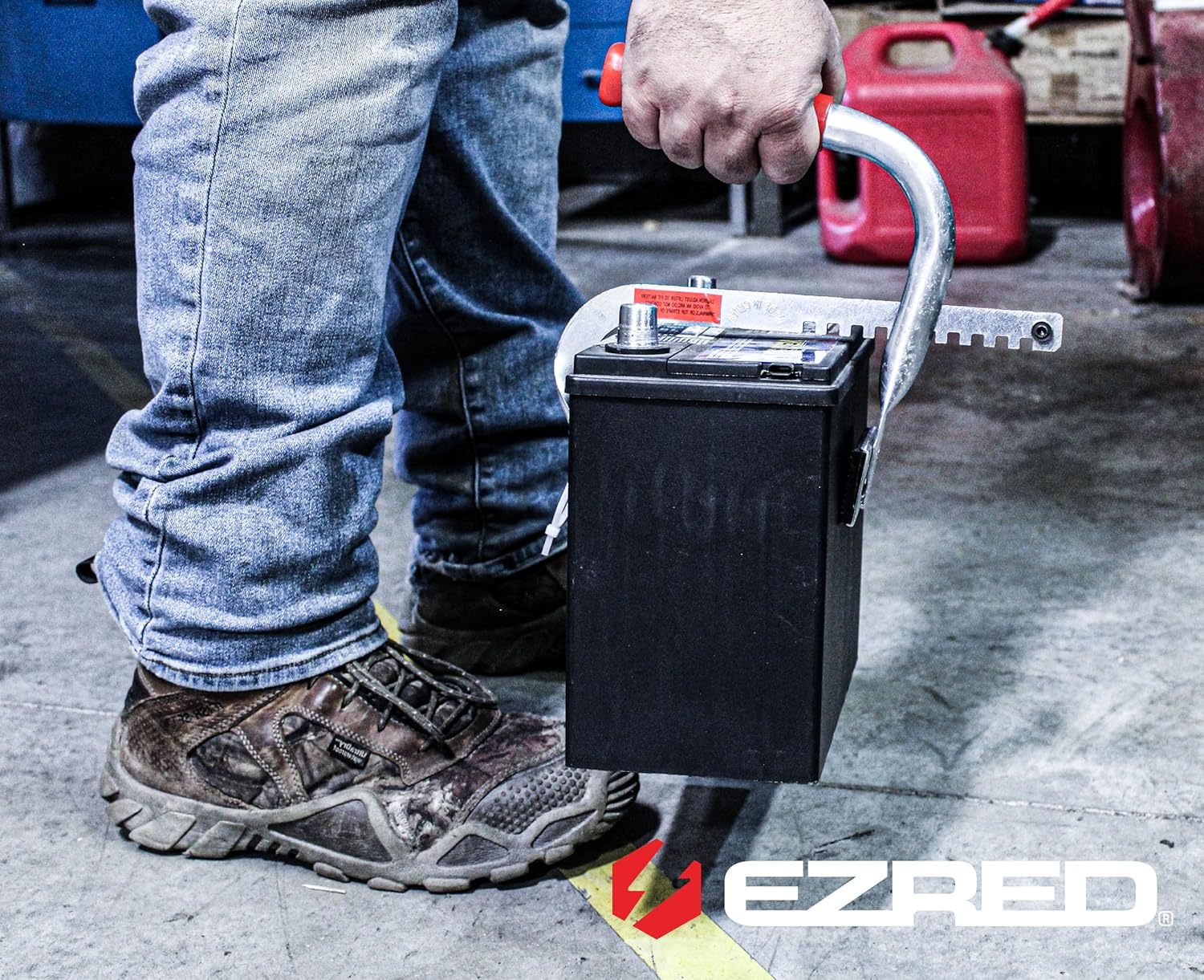

Image: A person demonstrating the proper technique for using the EZ RED BK520 Side Battery Lifter to safely carry a car battery.
Maintenance
- Cleaning: After each use, wipe the lifter clean with a damp cloth to remove any dirt, grime, or potential battery acid residue. Ensure it is dry before storage.
- Inspection: Periodically inspect all metal components for signs of corrosion, bending, or cracks. Check the vinyl hand grip and rubber gripping pads for wear, tears, or damage that could affect performance.
- Storage: Store the lifter in a dry, clean environment, away from direct sunlight, corrosive chemicals, and extreme temperatures.
- Lubrication: If the adjustable mechanism becomes stiff, apply a small amount of light lubricant to the moving parts to ensure smooth operation.
Troubleshooting
This section addresses common issues that may arise during the use of the EZ RED BK520 Side Battery Lifter.
Issue: The lifter does not securely grip the battery.
- Solution: Verify that the battery width falls within the lifter's specified gripping range (approximately 5-7 inches). Ensure that the gripping pads are clean and free of any debris, oil, or other substances that might reduce friction and prevent a secure hold.
Issue: The adjustable mechanism feels stiff or is difficult to move.
- Solution: Clean any accumulated dirt, dust, or grime from the adjustable sliding parts. Apply a small amount of light lubricant (e.g., silicone spray or light machine oil) to the moving components to restore smooth operation.
Specifications
| Feature | Detail |
|---|---|
| Model Number | BK520 |
| Brand | EZRED |
| Product Type | Side Battery Lifter |
| Material | Vinyl (handle grip), Metal (body) |
| Color | Red (handle) |
| Item Weight | 1.25 pounds (approx. 0.57 kg) |
| Product Dimensions | 7 x 9 x 3 inches (approx. 17.8 x 22.9 x 7.6 cm) |
| Country Of Origin | China |
Warranty and Support
For detailed warranty information or technical support regarding your EZ RED BK520 Side Battery Lifter, please contact EZRED directly. Specific warranty terms and conditions are typically provided with the product packaging or can be found on the manufacturer's official website.
You may also visit the official EZRED store for additional product information and support resources: EZRED Store
