Mannesmann Universal Tool Set (176 Pieces) Instruction Manual

1. Introduction

This manual provides essential instructions for the safe and effective use, maintenance, and storage of your Mannesmann Universal Tool Set, model M29086. Please read this manual thoroughly before using the tools to ensure proper operation and to prevent injury or damage.

Image 1.1: The Mannesmann Universal Tool Set (176 Pieces) displayed open, showing the organized arrangement of various hand tools, bits, and sockets within its protective case.

2. Safety Information

Always prioritize safety when using any tools. Failure to follow these safety guidelines may result in injury or damage to property.

• Wear appropriate personal protective equipment (PPE) such as safety glasses, gloves, and hearing protection when necessary.
• Keep your work area clean and well-lit. Cluttered or dark areas can lead to accidents.
• Do not operate tools while under the influence of drugs, alcohol, or medication.
• Store tools securely when not in use, out of reach of children and unauthorized persons.
• Use the correct tool for the job. Do not force small tools or attachments to perform tasks meant for heavy-duty tools.
• Inspect tools before each use. Do not use damaged or worn tools.
• Maintain a firm grip on tools during use to prevent slipping.

3. Package Contents

Your Mannesmann Universal Tool Set, model M29086, includes 176 pieces housed in a durable plastic case. The contents are designed for a wide range of household and workshop tasks.

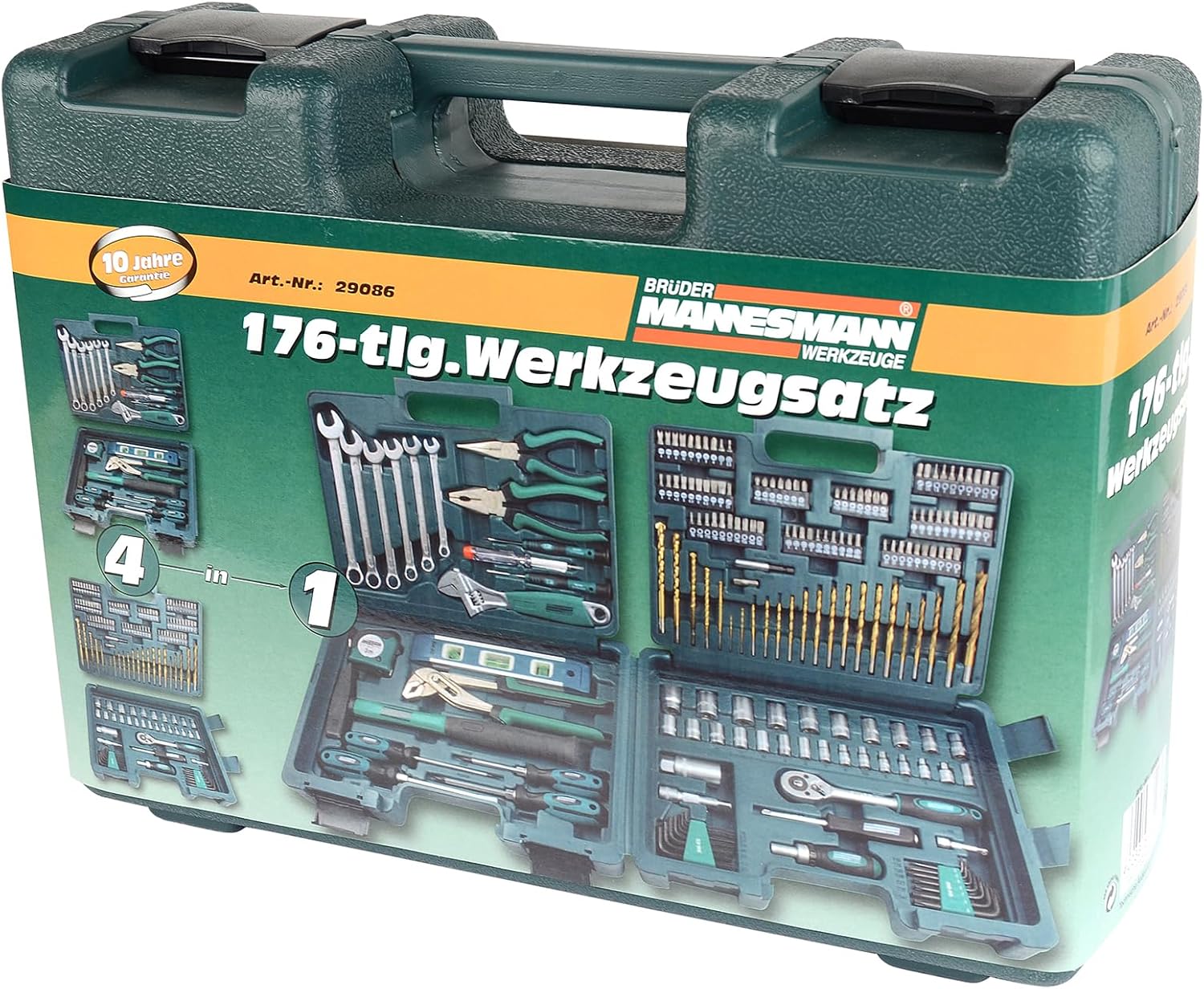

Image 3.1: The Mannesmann Universal Tool Set (176 Pieces) in its closed, green plastic case, with the product packaging sleeve visible, showing the brand and piece count.

Key Components:

• Combination Wrenches
• Pliers (various types, e.g., combination, long nose, water pump)
• Screwdrivers (slotted, Phillips, precision)
• Socket Wrenches and Ratchet Handle
• Hex Keys (Allen wrenches)
• Drill Bits (for wood, metal, masonry)
• Measuring Tape
• Hammer
• Adjustable Wrench
• Spirit Level
• Assorted Bits and Adapters
• Voltage Tester

4. Setup

The Mannesmann Universal Tool Set is designed for immediate use. No assembly is required for the tools themselves. The primary setup involves organizing and accessing the tools within the case.

1. Unlatch the Case: Locate the two black latches on the front of the tool case. Push them inwards or upwards to release the lid.
2. Open the Case: Gently open the case to reveal the two main compartments. The tools are securely held in molded inserts.
3. Familiarize Yourself: Take a moment to identify the different types of tools and their locations within the case. This will help you quickly find the right tool for your task and ensure proper return after use.

Image 4.1: Front view of the closed Mannesmann Universal Tool Set case, highlighting the latches and handle for transport.

5. Operating Instructions

This section provides general guidance on using common tools found in the set. Always refer to specific project requirements and safety practices for the task at hand.

5.1. Wrenches and Sockets

• Selection: Choose the correct size wrench or socket that fits snugly onto the fastener. An ill-fitting tool can strip the fastener or slip, causing injury.
• Application: Apply steady, even pressure. For tightening, turn clockwise; for loosening, turn counter-clockwise.
• Ratchet Use: Attach the appropriate socket to the ratchet. Adjust the direction switch on the ratchet head for tightening or loosening.

5.2. Screwdrivers and Bits

• Matching: Select the screwdriver or bit that matches the screw head type and size precisely.
• Engagement: Ensure the tip is fully engaged in the screw head before turning to prevent cam-out and damage to the screw or tool.
• Pressure: Apply downward pressure while turning to maintain engagement, especially with Phillips head screws.

5.3. Pliers

• Grip: Use pliers to grip, bend, or cut materials. Do not use pliers as a hammer or for prying.
• Cutting: When cutting wire, ensure the wire is not live and always wear eye protection.

5.4. Hammer

• Striking: Use the hammer for striking nails or other appropriate objects. Ensure a firm grip and clear swing path.
• Eye Protection: Always wear safety glasses when using a hammer to protect against flying debris.

5.5. Drill Bits

• Selection: Choose the correct drill bit type (wood, metal, masonry) and size for the material and desired hole diameter.
• Secure Workpiece: Always secure the material you are drilling to prevent it from moving.
• Speed and Pressure: Use appropriate drill speed and apply steady, even pressure. Avoid excessive force.

6. Maintenance

Proper maintenance extends the life of your tools and ensures their safe and effective operation.

• Cleaning: After each use, wipe tools clean of dirt, grease, and debris. A damp cloth can be used, followed by thorough drying to prevent rust.
• Lubrication: Periodically apply a light coat of machine oil to moving parts of pliers, ratchets, and adjustable wrenches to prevent rust and ensure smooth operation.
• Storage: Always return tools to their designated slots in the plastic case. This prevents damage, loss, and keeps them organized. Store the case in a dry environment, away from extreme temperatures and direct sunlight, to prevent rust and material degradation.
• Inspection: Regularly inspect tools for signs of wear, damage, or corrosion. Replace or repair damaged tools immediately. Do not attempt to use broken tools.

Image 6.1: Side view of the closed Mannesmann Universal Tool Set case, showcasing its compact and portable design for easy storage.

7. Troubleshooting

This section addresses common issues you might encounter with your tool set and provides potential solutions.

7.1. Tool Slipping from Fastener

• Cause: Incorrect tool size, worn tool, or improper application of force.
• Solution: Ensure the tool size matches the fastener exactly. Replace worn tools. Apply steady, even pressure, keeping the tool perpendicular to the fastener.

7.2. Rust Formation on Tools

• Cause: Exposure to moisture, improper storage, or lack of protective lubrication.
• Solution: Clean and dry tools thoroughly after use. Store in a dry environment. Apply a light coat of rust-preventative oil to metal surfaces periodically.

7.3. Difficulty Opening/Closing Case Latches

• Cause: Debris in the latch mechanism or misalignment of the case halves.
• Solution: Clear any debris from the latches. Ensure the case is properly aligned before attempting to close. Do not force the latches; check for obstructions.

8. Specifications

9. Warranty and Support

Mannesmann Tools Germany offers a 10-year warranty on this product, reflecting their commitment to quality and durability. This warranty covers manufacturing defects under normal use conditions.

For warranty claims, technical support, or inquiries regarding replacement parts, please refer to the contact information provided with your original purchase documentation or visit the official Mannesmann Tools website. Please retain your proof of purchase for all warranty-related matters.

Note: Warranty terms and conditions may vary by region. Please consult the specific warranty statement included with your product for full details.
