1. Introduction
This manual provides essential information for the proper setup, operation, and maintenance of your Redi-Remote replacement remote control. This remote is specifically designed to function with various Fisher audio system models, ensuring seamless control without the need for complex programming.
2. Product Overview

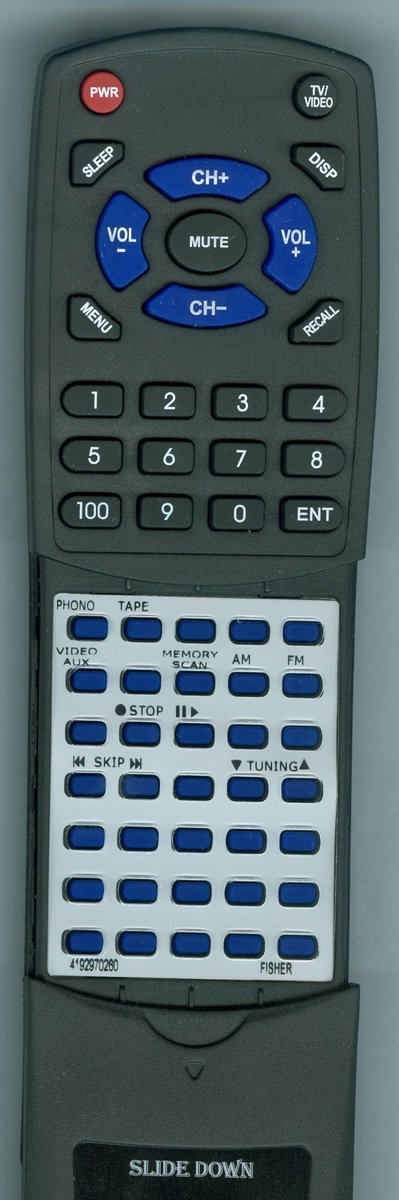

Image: The Redi-Remote replacement remote control, showing its ergonomic design and button layout.
The Redi-Remote replacement remote control is a custom-built unit designed to replace the original remote for specific Fisher audio systems. It provides full functionality for the compatible units listed below. This remote is not an original Fisher product but a high-quality replacement manufactured by Redi-Remote.
Key Features:
- No Programming Required: This remote is pre-programmed and ready to use directly out of the box.
- Direct Compatibility: Designed to work with Fisher models CA861, REM862, MC630, 4192970390, CA862A, and 4192970260.
- Compact Design: Measures approximately 7.5 inches (19 cm) in length, 2.25 inches (5.7 cm) in width, and 0.75 inches (1.9 cm) in thickness.
- Sliding Cover: Features a protective sliding cover over the lower half of the buttons to prevent accidental presses and reveal additional functions.
3. Setup
3.1 Battery Installation
Your Redi-Remote requires 4 AAA batteries for operation. These batteries are included with your purchase.
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards or press the latch (if present) to open the compartment.
- Insert 4 AAA batteries, ensuring that the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Replace the battery compartment cover, sliding it back into place until it clicks securely.
3.2 Initial Use (No Programming Required)
This Redi-Remote is designed for immediate use with your compatible Fisher audio system. No programming codes or setup procedures are required. Once batteries are installed, the remote is ready to control your device.
4. Operating Instructions
Point the remote control directly at the infrared sensor on your Fisher audio system. Ensure there are no obstructions between the remote and the device.
4.1 Basic Functions
The top section of the remote typically contains common functions such as power, volume control, and input selection. Press the corresponding buttons to perform these actions.
4.2 Accessing Additional Functions
The lower half of the remote control features a sliding cover. To access additional buttons and functions (e.g., menu navigation, playback controls, numerical input), gently slide this cover downwards. Once you have finished using these functions, you may slide the cover back up for protection.
5. Maintenance
- Cleaning: Use a soft, dry cloth to clean the remote control. Do not use liquid cleaners or abrasive materials, as they may damage the surface or internal components.
- Battery Replacement: If the remote's performance degrades (e.g., reduced range, unresponsive buttons), replace all 4 AAA batteries with new ones. Do not mix old and new batteries, or different types of batteries.
- Storage: Store the remote in a cool, dry place away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent leakage.
- Avoid Drops: Protect the remote from physical impact, as drops can damage internal circuitry.
6. Troubleshooting
- Remote is not working:
- Ensure batteries are inserted correctly with the correct polarity.
- Replace old batteries with fresh ones.
- Check if there are any obstructions between the remote and the Fisher audio system's infrared sensor.
- Ensure you are within the effective operating range and pointing the remote directly at the device.
- Some buttons are not responding:
- Check if the sliding cover is fully open to reveal all buttons.
- Clean the remote's surface, especially around the unresponsive buttons, to remove any dirt or debris.
7. Specifications
| Brand | Redi-Remote |
| Model Number | RT4192970260 |
| Compatible Devices | Fisher Stereo System (CA861, REM862, MC630, 4192970390, CA862A, 4192970260) |
| Connectivity Technology | Infrared |
| Max Number of Supported Devices | 1 |
| Special Feature | No Programming Required |
| Product Dimensions | 7 x 2.5 x 1 inches (17.78 x 6.35 x 2.54 cm) |
| Item Weight | 4.5 ounces (127.57 grams) |
| Batteries | 4 AAA batteries required (included) |
8. Warranty and Support
This Redi-Remote replacement remote control is manufactured to high standards. For any questions, concerns, or support regarding your remote control, please contact the seller, RemotesPro, directly through your purchase platform. They will be able to assist you with product-specific inquiries and troubleshooting.
