Mars 00212 115V CCW 1/15 HP 3.3 ECM Refrigeration ECM Motor User Manual

Introduction

This user manual provides essential information for the safe and efficient installation, operation, and maintenance of the Mars 00212 115V CCW 1/15 HP 3.3 ECM Refrigeration ECM Motor. This motor is designed as a replacement for various 3.3-inch motors up to 1/15 HP in refrigeration applications, featuring a unit bearing ECM design and operating at 115V with a counter-clockwise rotation at 1550 RPM.

Please read this manual thoroughly before attempting any installation or operation to ensure proper function and to prevent damage or injury.

Safety Precautions

Always observe the following safety guidelines:

• Disconnect all power to the appliance before installing, servicing, or removing the motor.
• Installation and wiring should only be performed by a qualified technician in accordance with all local and national electrical codes.
• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves.
• Ensure the motor is properly grounded.
• Do not operate the motor if it is damaged or if any wires are frayed or exposed.

Setup and Installation

The Mars 00212 motor is designed for straightforward replacement in compatible refrigeration units. Follow these general steps for installation:

1. Power Disconnection: Ensure the refrigeration unit is completely disconnected from its power source. Verify with a voltage tester.
2. Access: Gain access to the existing motor within the refrigeration unit. This may involve removing panels or covers.
3. Old Motor Removal: Carefully disconnect the wiring from the old motor. Note the wiring configuration if necessary. Unmount the old motor from its bracket or housing.
4. New Motor Mounting: Mount the Mars 00212 motor securely into the designated position. Ensure it is firmly seated and aligned.
5. Wiring Connection: Connect the new motor's wiring according to the appliance's wiring diagram. This motor operates at 115V and features a 90-degree Lyall Plug for connection. Ensure all connections are secure and insulated.
6. Verification: Double-check all connections and mounting points. Ensure no wires are pinched or exposed.
7. Reassembly: Reattach any panels or covers removed during the installation process.

Note: For specific wiring diagrams and mounting instructions, refer to the service manual of your refrigeration appliance.

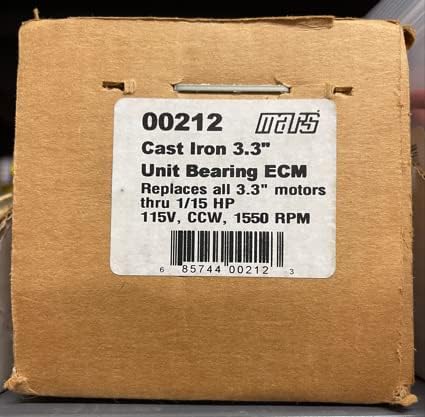

This image shows the brown cardboard packaging for the Mars 00212 ECM Refrigeration Motor. A white label affixed to the box displays key product information: '00212 Mars Cast Iron 3.3" Unit Bearing ECM Replaces all 3.3" motors thru 1/15 HP 115V, CCW, 1550 RPM'. A barcode is also visible below the text, with the numbers '6 85744 00212 3' printed beneath it, corresponding to the product's UPC 685744002123.

Operating Instructions

Once installed, the Mars 00212 motor operates automatically as part of the refrigeration system's fan assembly. It is designed for continuous duty within its specified parameters.

• Ensure the refrigeration unit is receiving the correct 115V power supply.
• The motor is designed for Counter-Clockwise (CCW) rotation when viewed from the shaft end. Verify proper airflow direction after installation.
• Listen for any unusual noises or vibrations during initial operation, which may indicate an installation issue.

Maintenance

The Mars 00212 ECM motor is a low-maintenance component. However, periodic inspection can help ensure its longevity and optimal performance.

• Cleaning: Periodically inspect the motor and fan blades for dust, dirt, or debris accumulation. Disconnect power before cleaning. Use a soft brush or compressed air to gently remove any buildup. Do not use liquid cleaners directly on the motor.
• Inspection: Check for any signs of wear, such as loose wiring, corrosion, or physical damage to the motor housing or fan.
• Lubrication: This unit bearing ECM motor is typically sealed and does not require external lubrication. Do not attempt to lubricate the bearings unless specifically instructed by the manufacturer.

Troubleshooting

If the motor is not functioning as expected, consider the following common issues:

For issues not listed or if troubleshooting steps do not resolve the problem, it is recommended to consult a qualified HVAC/R technician.

Specifications

Warranty Information

Mars products typically come with a manufacturer's warranty covering defects in materials and workmanship. The specific terms and duration of the warranty for the 00212 motor may vary. Please refer to the warranty documentation included with your purchase or visit the official Mars website for detailed information regarding warranty coverage, terms, and conditions.

Support

For technical assistance, replacement parts, or further inquiries regarding the Mars 00212 ECM Refrigeration Motor, please contact Mars customer support. Contact information can typically be found on the manufacturer's official website or on the product packaging.

When contacting support, please have your product model number (00212) and any relevant purchase information ready.
