Graham Field Liberty Half No Gap Bed Rail User Manual

Introduction

This manual provides essential instructions for the safe and effective use, installation, and maintenance of your Graham Field Liberty Half No Gap Bed Rail, Model GF6590BH-1. Please read this manual thoroughly before installation and use to ensure proper operation and user safety. This product is designed to assist individuals with mobility challenges by providing support and preventing accidental falls from the bed.

Safety Information

• Read All Instructions: Ensure all users and caregivers read and understand this manual completely before operating the bed rail.
• Proper Installation: The bed rail must be securely installed according to the instructions to prevent movement or detachment. Improper installation can lead to injury.
• No Gap Design: The "No Gap" feature is designed to minimize entrapment risks. Always ensure the rail is properly positioned against the mattress to maintain this safety feature.
• Regular Inspection: Periodically inspect the bed rail for any signs of wear, damage, or loose components. Do not use if damaged.
• Weight Capacity: Adhere to the maximum weight capacity specified by the manufacturer. Overloading can compromise safety.
• Supervision: Individuals requiring assistance should be supervised during use of the bed rail.
• Clear Area: Ensure the area around the bed rail is clear of obstructions that could interfere with its operation or cause injury.

Setup and Installation

The Graham Field Liberty Half No Gap Bed Rail is designed for straightforward installation. Ensure you have all components before beginning.

1. Unpack Components: Carefully remove all parts from the packaging and verify against the packing list.
2. Position Rail: Place the bed rail alongside the bed frame where it is intended to be installed. Ensure the "no gap" mechanism aligns correctly with the mattress edge.
3. Secure to Bed Frame: Attach the bed rail's mounting brackets to the bed frame. Use the provided hardware (bolts, nuts, washers) to secure it firmly. Tighten all fasteners securely, but do not overtighten.
4. Check Stability: After installation, gently push and pull on the bed rail to ensure it is stable and does not wobble. Re-tighten fasteners if necessary.
5. Verify No Gap: Confirm that there are no significant gaps between the bed rail and the mattress that could pose an entrapment risk. Adjust positioning if needed.
6. Connect Remote (if applicable): If your model includes an electric remote for adjustment, connect it to the designated port on the bed rail mechanism.

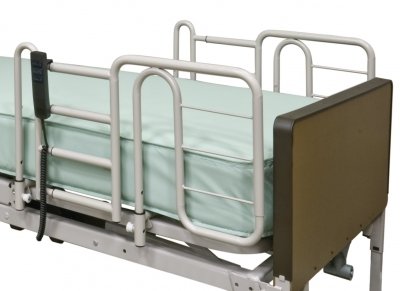

Image: The Graham Field Liberty Half No Gap Bed Rail attached to the side of a bed. The rail features a sturdy metal frame designed to prevent gaps, ensuring patient safety. A remote control is visible, indicating electric adjustment capabilities.

Operation

The Liberty Half No Gap Bed Rail is designed for ease of use while providing essential support.

• Raising/Lowering the Rail:
  • Manual Operation: If your model is manual, locate the release levers or buttons on the rail. Press or pull these mechanisms to disengage the lock, then gently raise or lower the rail to the desired position. Ensure it locks securely into place.
  • Electric Operation: If your model includes a remote control (as seen in the product image), use the designated buttons on the remote to raise or lower the bed rail. Follow the specific instructions provided with your remote for its functions.
• Patient Assistance: The rail provides a stable grip for individuals to assist with repositioning in bed or getting in and out of bed. Always ensure the rail is fully raised and locked when used for support.
• Entrapment Prevention: Always ensure the rail is positioned correctly to maintain the "no gap" feature, minimizing any space between the rail and the mattress where a user could become entrapped.

Maintenance

Proper maintenance ensures the longevity and safe operation of your bed rail.

• Cleaning: Clean the bed rail regularly with a mild detergent and water. Wipe dry immediately. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspection: Routinely check all bolts, nuts, and other fasteners for tightness. Inspect the rail frame for any bends, cracks, or damage. Examine moving parts for smooth operation.
• Lubrication: Moving parts may benefit from occasional lubrication with a silicone-based spray to ensure smooth operation. Avoid petroleum-based lubricants.
• Storage: If storing the bed rail, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight and extreme temperatures.
• Damaged Parts: Do not use the bed rail if any part is damaged or missing. Contact Graham-Field or your supplier for replacement parts.

Troubleshooting

This section addresses common issues you might encounter with your bed rail.

• Rail is Loose or Wobbly:

  Solution: Check all mounting bolts and fasteners. Ensure they are securely tightened to the bed frame. Verify that the bed rail is correctly seated in its brackets.
• Rail Does Not Lock in Position:

  Solution: Inspect the locking mechanism for any obstructions or damage. Ensure the rail is fully raised or lowered until the locking mechanism engages. If electric, check remote battery and connection.

• Remote Control Not Responding (Electric Models):

  Solution: Check the remote's battery (if applicable) and replace if necessary. Ensure the remote cable is securely plugged into the bed rail unit. Inspect the cable for any visible damage.

• Gaps Between Rail and Mattress:

  Solution: Re-adjust the bed rail's position on the bed frame to ensure it sits flush against the mattress. Confirm the mattress is properly centered on the bed frame.

If you encounter issues not listed here or if troubleshooting steps do not resolve the problem, contact Graham-Field customer support or your product supplier.

Specifications

Warranty and Support

For specific warranty information regarding your Graham Field Liberty Half No Gap Bed Rail, please refer to the documentation included with your purchase or visit the official Graham-Field website. For technical support, replacement parts, or further assistance, please contact Graham-Field customer service directly or the authorized dealer from whom you purchased the product.

Manufacturer: GF Health Products

Brand: Graham-Field

Note: Product specifications and warranty terms are subject to change without notice.
