EISL DX25 Washbasin Sprinkler User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your EISL DX25 Washbasin Sprinkler. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Safety Information

Always follow basic safety precautions when installing or maintaining plumbing fixtures. Ensure the water supply is turned off before beginning any installation or maintenance work. If you are unsure about any step, consult a qualified plumber.

Package Contents

Verify that all components are present before starting installation:

• Washbasin Sprinkler Head
• Flexible Hose (1500 mm)
• Adapter for faucet connection
• Wall Mount Bracket
• Mounting Hardware

Setup and Installation

1. Prepare the Faucet:

   Turn off the main water supply to the washbasin. Remove the existing aerator or mixer nozzle from your washbasin faucet by unscrewing it. Ensure the faucet is clean and free of debris.



   Image description: A close-up of a faucet with a mixer nozzle being unscrewed. Text overlays indicate "1. MISCHDÜSE ABDREHEN" (Unscrew mixer nozzle).
2. Install the Adapter:

   Screw the provided adapter onto the faucet. The adapter supports M22 external thread and M24 internal thread connections. Ensure a tight, leak-free fit. Use a wrench if necessary, but do not overtighten.



   Image description: The same image as above, showing the adapter being screwed onto the faucet. Text overlays indicate "2. ADAPTER DRAUF DREHEN" (Screw on adapter) and "ANSCHLUSSMASS M22 AUSSENGEWINDE X M24 INNENGEWINDE" (Connection size M22 external thread x M24 internal thread).

3. Connect the Hose and Sprinkler Head:

   Attach one end of the flexible hose to the adapter on the faucet and the other end to the washbasin sprinkler head. Hand-tighten first, then use a wrench for a secure connection, being careful not to damage the threads.
4. Mount the Sprinkler Head (Optional):

   Choose a suitable location near the washbasin for the wall mount bracket. Mark the drilling points, drill holes, insert wall plugs, and secure the bracket with screws. Place the sprinkler head into the bracket when not in use.

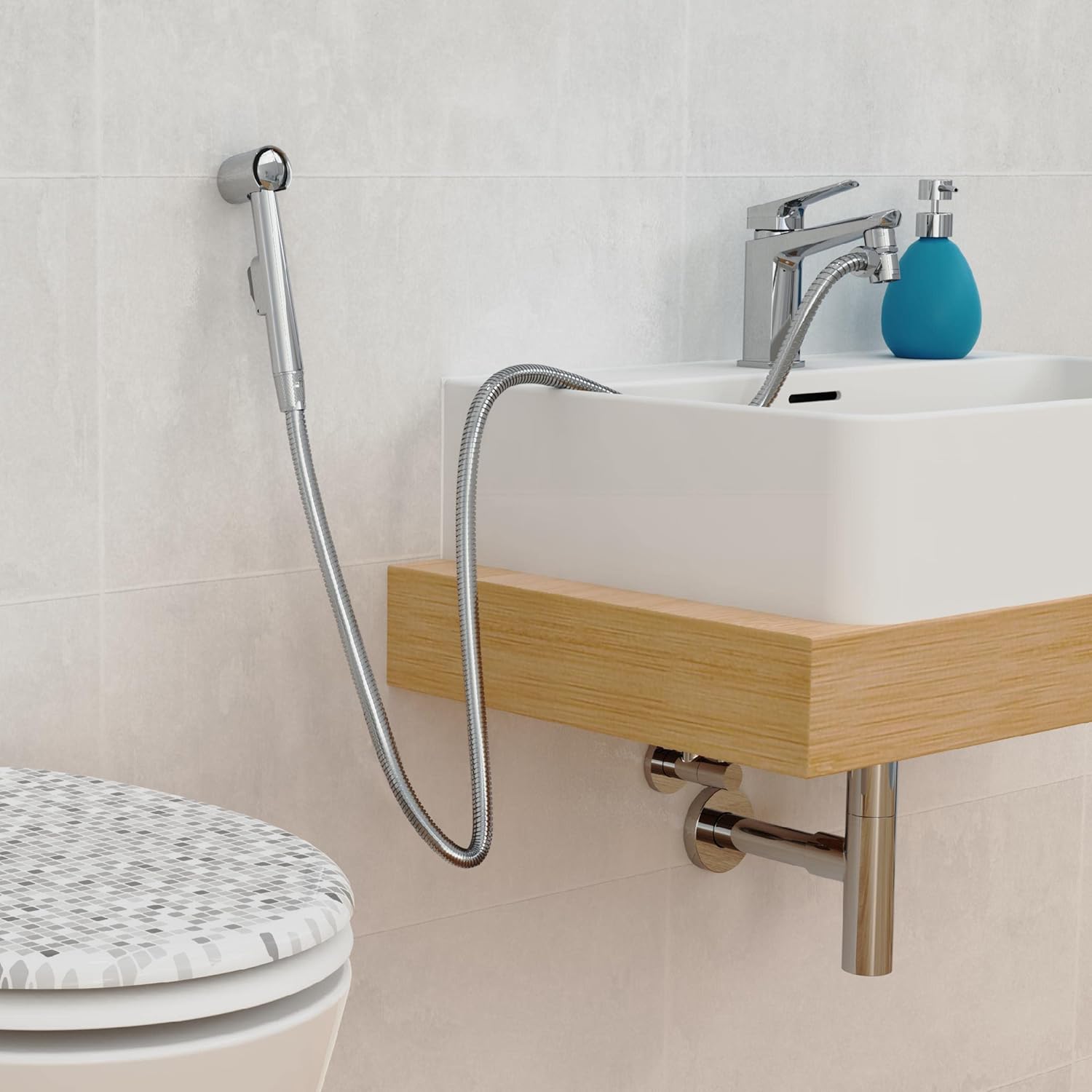

   Image description: The Eisl DX25 Washbasin Sprinkler installed next to a washbasin, showing the hose connected to the faucet and the sprinkler head resting in its wall-mounted holder.

5. Check for Leaks:

   Slowly turn on the main water supply. Check all connections for any leaks. If leaks are present, tighten the connections further. If leaks persist, disassemble and reassemble, ensuring all washers are correctly seated.

Operating Instructions

1. Activating the Sprinkler:

   Once installed, turn on your washbasin faucet. The water will flow through the faucet as usual. To divert water to the sprinkler head, press the button on the side of the adapter or the sprinkler head itself (depending on the model variant).



   Image description: A comparison showing water flowing from the faucet (left) and then diverted to the sprinkler head (right) by pressing a button. Text overlays indicate "WECHSEL AUF KNOPF-DRUCK" (Switch by button press).
2. Adjusting Water Flow:

   The sprinkler head features two settings: Massage and Rain. Rotate the head or press a button (if applicable) to switch between these spray patterns according to your preference.

3. Multiple Uses:

   The washbasin sprinkler is designed for various tasks, including washing hair, cleaning the washbasin, or filling buckets. Its flexible hose and adjustable spray make it versatile.



   Image description: The Eisl DX25 Washbasin Sprinkler being used to fill a red bucket in a utility sink setting, demonstrating its versatility.



   Image description: A close-up of the Eisl DX25 Washbasin Sprinkler connected to a faucet, with a blue circle overlay indicating "VIELSEITIG EINSETZBAR" (Versatile in use).

Maintenance

• Regular Cleaning:

  Clean the exterior of the sprinkler head and hose regularly with a soft cloth and mild soap. Avoid abrasive cleaners or harsh chemicals, as these can damage the chrome finish.
• Nozzle Cleaning:

  The sprinkler head features "Antitical balls" (anti-limescale nubs). Periodically rub these nubs to dislodge any mineral deposits and maintain optimal spray performance. For stubborn deposits, soak the head in a vinegar solution.

• Hose Inspection:

  Inspect the flexible hose periodically for any signs of wear, cracks, or leaks. Replace the hose if any damage is observed to prevent water damage.

Troubleshooting

Specifications

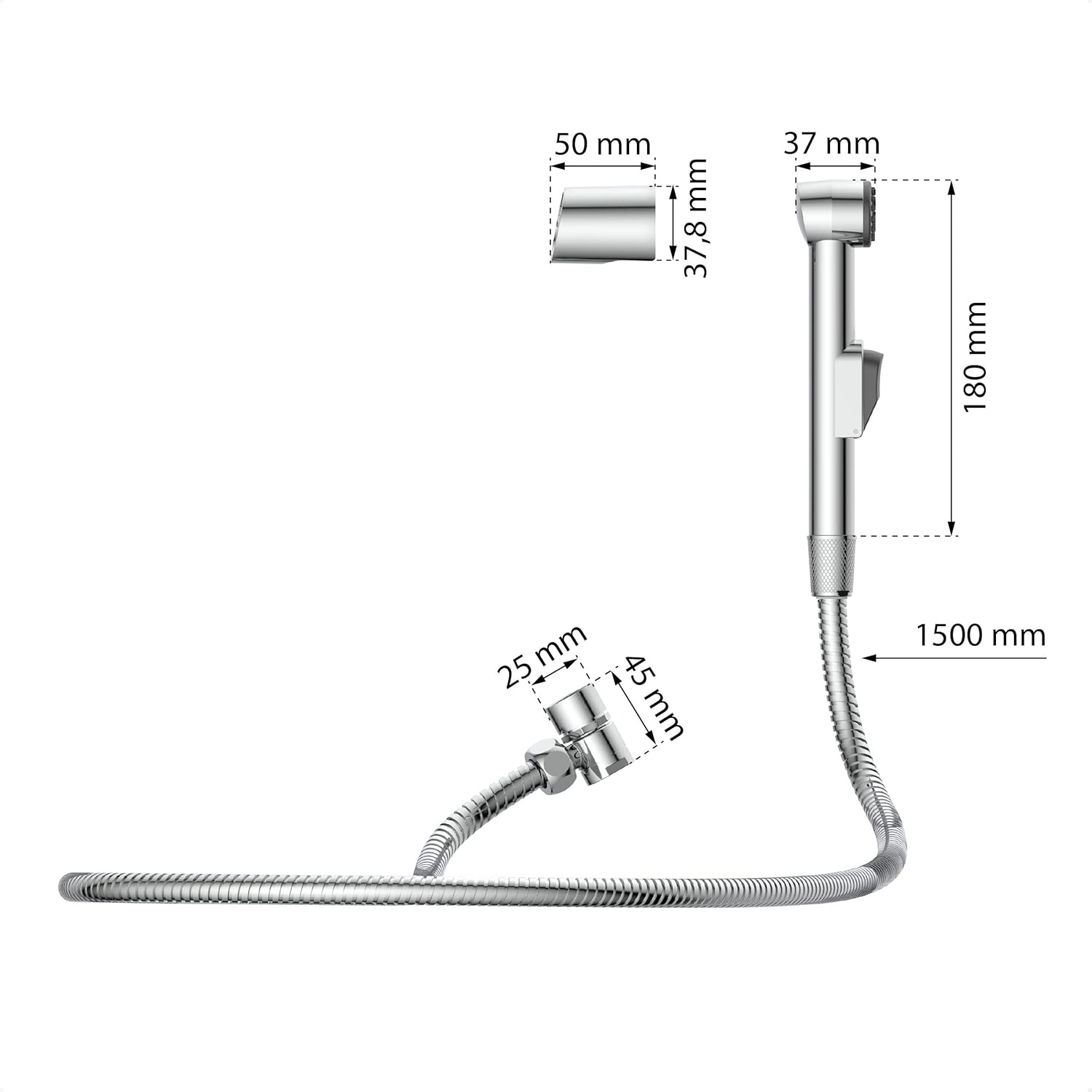

Image description: A technical diagram showing the dimensions of the sprinkler head, adapter, and hose in millimeters. Key measurements include 180 mm for the sprinkler head length and 1500 mm for the hose length.

Warranty Information

EISL products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty. Please retain your proof of purchase for any warranty claims. For specific warranty terms and conditions, refer to the documentation included with your purchase or visit the official EISL website.

Support and Contact

If you encounter any issues or have questions regarding your EISL DX25 Washbasin Sprinkler that are not covered in this manual, please contact EISL customer support. You can find contact information on the official EISL website or through your retailer.

• Manufacturer: EISL
• Website: www.eisl.de (Example, actual link may vary)
