Introduction
This instruction manual provides comprehensive guidance for the EISL NI182SCR Speed Kitchen Sink Faucet. It covers essential information regarding product features, installation procedures, operating instructions, maintenance tips, troubleshooting common issues, and detailed technical specifications. Please read this manual thoroughly before installation and use to ensure safe and efficient operation of your faucet.
Product Overview
The EISL NI182SCR Speed Kitchen Sink Faucet is designed for functionality and durability in your kitchen. Key features include:
- 360° Swivel Spout: The faucet's spout can rotate a full 360 degrees, providing maximum flexibility for cleaning and filling tasks, especially suitable for double sinks.
- High-Quality Cartridge: Equipped with a low-noise, high-quality cartridge featuring durable ceramic seals for reliable performance and easy replacement if needed.
- Uniform Water Stream: An integrated aerator from a reputable manufacturer ensures a consistent and splash-free water flow.
- Complete Installation Kit: Includes all necessary components for installation, such as corrosion-resistant flexible hoses (400 mm) suitable for drinking water systems, and a multilingual, illustrated installation guide.
Setup and Installation
Before beginning installation, ensure you have all necessary tools and that the water supply is turned off. Refer to the included installation manual for detailed, step-by-step instructions and diagrams.
The package includes the faucet, flexible connection hoses, mounting hardware, and a detailed instruction manual.
An illustration demonstrating the proper method for mounting the faucet to your kitchen sink.
- Prepare the sink hole for the faucet.
- Connect the flexible hoses to the faucet base.
- Insert the faucet into the sink hole.
- Secure the faucet from underneath the sink using the provided mounting kit.
- Connect the flexible hoses to your hot and cold water supply lines.
- Check for leaks by slowly turning on the water supply.
Operating Instructions
The EISL NI182SCR faucet features a single lever for controlling both water temperature and flow.

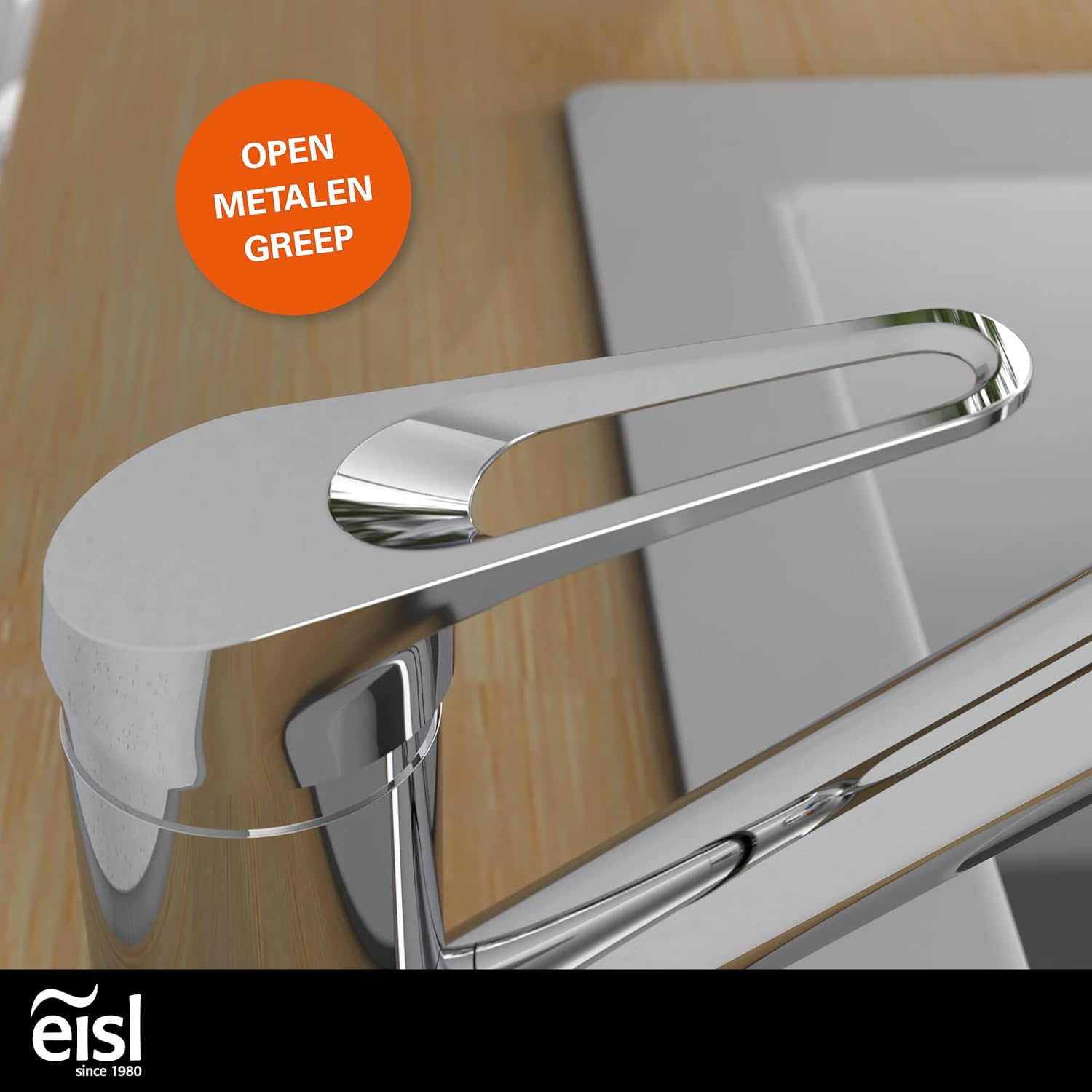

The ergonomic metal handle provides comfortable and precise control over water temperature and flow.
- Water Flow Control: Lift the lever to increase water flow. Push it down to decrease or stop the flow.
- Temperature Control: Move the lever to the left for hot water and to the right for cold water. Adjust the position to achieve the desired temperature.
- Swivel Spout: The spout can be rotated 360 degrees to direct water to different areas of the sink or to move it out of the way when not in use.
The faucet's spout can rotate 360 degrees, offering flexibility for various sink tasks.
The faucet is designed for a quiet water flow, ensuring a peaceful kitchen environment.
The faucet's sleek chrome design complements modern kitchen aesthetics.
Maintenance
Regular maintenance will help preserve the appearance and functionality of your EISL faucet.
- Cleaning: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the chrome finish.
- Aerator Cleaning: If water flow becomes restricted or uneven, the aerator may be clogged. Unscrew the aerator from the spout, clean any debris or mineral deposits, and reattach it.
- Cartridge Replacement: In case of persistent drips or difficulty controlling temperature, the ceramic cartridge may need replacement. This is a standard component and can be replaced by a qualified plumber or experienced DIY enthusiast.
Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water flow | Clogged aerator or supply lines | Clean the aerator. Check for kinks in supply hoses or blockages in shut-off valves. |
| Leaking from spout | Worn cartridge | Replace the ceramic cartridge. |
| Leaking from base | Loose mounting nuts or damaged O-rings | Tighten mounting nuts. Inspect and replace O-rings if damaged. |
| Difficulty adjusting temperature | Worn cartridge or mineral buildup | Replace the ceramic cartridge. Flush hot and cold water lines. |
Specifications
This diagram illustrates the faucet's dimensions, including height, spout reach, and base diameter.
| Feature | Detail |
|---|---|
| Model Number | NI182SCR |
| Brand | EISL |
| Product Dimensions (L x W x H) | 25 x 4.5 x 15 cm |
| Weight | 840 grams |
| Material | Brass |
| Color | Chrome |
| Finish Type | Chrome |
| Mounting Type | Deck Mount (Single Hole) |
| Number of Handles | 1 (Lever) |
| Valve Type | Cartridge Valve |
| Special Feature | 360° Swivel Spout |
| Spout Height | 120 Millimeters |
| Spout Reach | 210 Millimeters |
| Hose Length | 400 Millimeters |
| Country of Origin | China |
Warranty Information
The EISL NI182SCR Speed Kitchen Sink Faucet comes with a 3 Years Manufacturer's Warranty. Please retain your proof of purchase for any warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact EISL customer support.
Customer Support
If you encounter any issues not covered in this manual or require further assistance, please contact EISL customer support. Have your product model number (NI182SCR) and proof of purchase ready when contacting support.
For more information, you may visit the official EISL website or refer to the contact details provided in your product packaging.
