Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Lil' Rider 6V Battery-Powered 4-Wheeler, Model 80-A6303. Please read all instructions carefully before use and retain this manual for future reference. This electric ride-on toy is designed for children aged 3 to 6 years, with a maximum speed of 2.17 mph.
Image: The Lil' Rider 6V Battery-Powered 4-Wheeler, Model 80-A6303, featuring a pink body with princess decals, purple seat, and black wheels.
Safety Information
- WARNING: CHOKING HAZARD – Small parts. Not for children under 3 years.
- Adult supervision is required at all times during operation.
- Ensure the child wears appropriate safety gear, such as a helmet, when operating the vehicle.
- Do not operate the vehicle near streets, cars, steep inclines, swimming pools, or other bodies of water.
- Only use on smooth, flat surfaces. Avoid loose dirt, sand, gravel, or wet areas.
- Do not exceed the maximum weight capacity of 55 lbs (25 kg).
- Keep hands, hair, and clothing away from moving parts.
- The vehicle is designed for one rider only.
- Always ensure the battery is charged according to instructions to prevent damage or injury.
Package Contents
Verify that all components are present before beginning assembly:
- Lil' Rider 6V Battery-Powered 4-Wheeler (Main Body)
- 6V 4.5Ah Rechargeable Battery
- Battery Charger
- Assembly Hardware (screws, washers, etc.)
- Instruction Manual
Setup and Assembly
1. Initial Assembly
The Lil' Rider 4-Wheeler requires some assembly. Please refer to the detailed diagrams and step-by-step instructions provided in the separate assembly guide included in your package. Ensure all parts are securely fastened before proceeding.
- Attach the wheels and axles as per the assembly guide.
- Connect the steering mechanism.
- Secure the seat. Note: Some components, such as the gear crank, may be located under the seat for shipping. Unscrew the seat to access these parts if necessary during assembly.
2. Battery Charging
Before first use, the 6V 4.5Ah rechargeable battery must be fully charged. This typically takes 8-12 hours. Do not overcharge the battery.
- Locate the charging port on the vehicle.
- Connect the charger to the charging port.
- Plug the charger into a standard wall outlet.
- Allow the battery to charge for the recommended 8-12 hours.
- Disconnect the charger once charging is complete.
Image: A young child riding the pink Lil' Rider 4-Wheeler outdoors, demonstrating its safe and durable construction, forward/reverse capability, and easy speed control.
Operating Instructions
Once assembled and the battery is fully charged, the 4-Wheeler is ready for use under adult supervision.
- Power On: Locate the power switch (if applicable) and turn the vehicle ON.
- Direction Control: Use the forward/reverse switch to select the desired direction of travel.
- Acceleration: Press the foot pedal to engage the motor and move the vehicle. Release the pedal to stop.
- Steering: Use the handlebars to steer the vehicle left or right.
Image: A child on the Lil' Rider 4-Wheeler, highlighting features like built-in headlights and decorative princess decals.

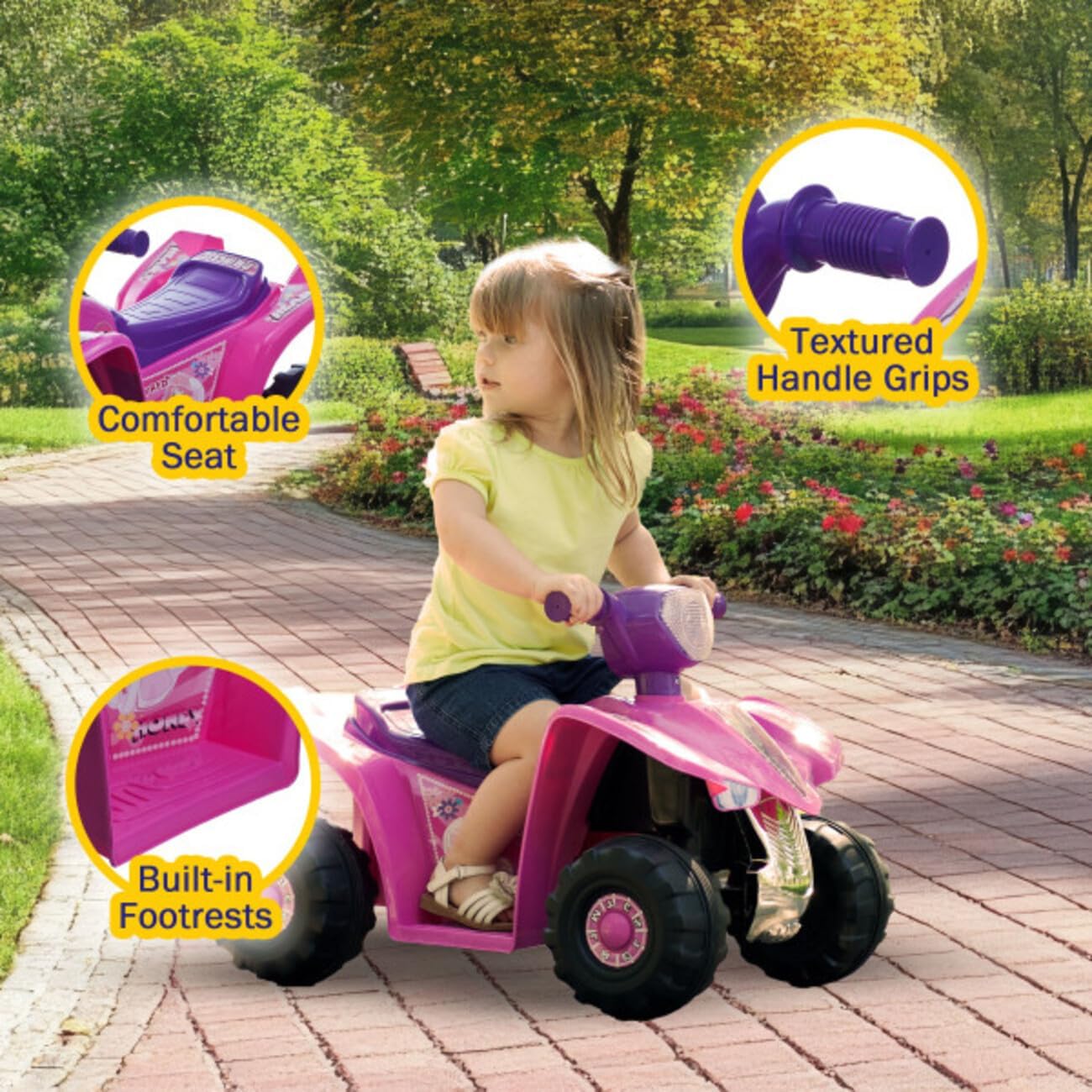

Image: A child operating the Lil' Rider 4-Wheeler, illustrating the comfortable seat, textured handle grips for better control, and integrated footrests.
Image: The Lil' Rider 4-Wheeler shown with examples of suitable operating surfaces, including cement, brick, decking, and asphalt, indicating its versatility for indoor and outdoor use.
Maintenance
- Cleaning: Wipe the vehicle with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Do not spray with water or immerse in water.
- Battery Care:
- Recharge the battery after each use.
- If storing for extended periods, charge the battery fully every 30 days to prolong its lifespan.
- Do not store the battery in extreme temperatures.
- Inspection: Regularly check all nuts, bolts, and fasteners to ensure they are tight. Inspect wheels and tires for wear.
- Storage: Store the vehicle in a dry, cool place away from direct sunlight and moisture.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Vehicle does not move. | Battery is low or not charged. Power switch is off. Loose battery connection. Foot pedal malfunction. |
Charge the battery for 8-12 hours. Turn the power switch ON. Check battery terminals for secure connection. Contact customer support if pedal is faulty. |
| Vehicle moves slowly. | Battery is low. Overloaded vehicle. Operating on an unsuitable surface. |
Recharge the battery. Ensure rider weight is within 55 lbs limit. Use on smooth, flat surfaces. |
| Missing or misplaced assembly part (e.g., gear crank). | Part may be stored within the vehicle for shipping. | Carefully check all packaging materials. For parts like the gear crank, unscrew and lift the seat to check for components stored underneath. |
| Vehicle makes unusual noises. | Loose components. Debris in moving parts. |
Inspect all connections and tighten if loose. Clear any obstructions from wheels or motor area. |
Specifications
- Model Number: 80-A6303
- Brand: Lil' Rider
- Materials: Plastic, Metal
- Dimensions (L x W x H): 25.5" x 17.25" x 16.75" (64.8 cm x 43.8 cm x 42.5 cm)
- Weight Capacity: 55 lbs (25 kg)
- Battery: 6V 4.5Ah Rechargeable
- Charge Time: 8-12 Hours (for full charge)
- Maximum Speed: 2.17 mph (3.5 km/h)
- Recommended Age: 3-6 Years (36-60 months)
- UPC: 886511094567
Image: A diagram illustrating the product dimensions of the Lil' Rider 4-Wheeler, including its length, width, and height.
Official Product Video
Video: An official product video from Trademark GLB (Lil' Rider's manufacturer) showcasing the Lil' Rider 6V Four Wheeler for Kids, highlighting its features and use.
Warranty and Support
This Lil' Rider 4-Wheeler is covered by a 30-day warranty against manufacturer defects from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical assistance, or to inquire about replacement parts, please contact Lil' Rider customer support. Keep your proof of purchase and model number (80-A6303) ready when contacting support.
