Necchi Serger Upper Looper Instruction Manual

Introduction

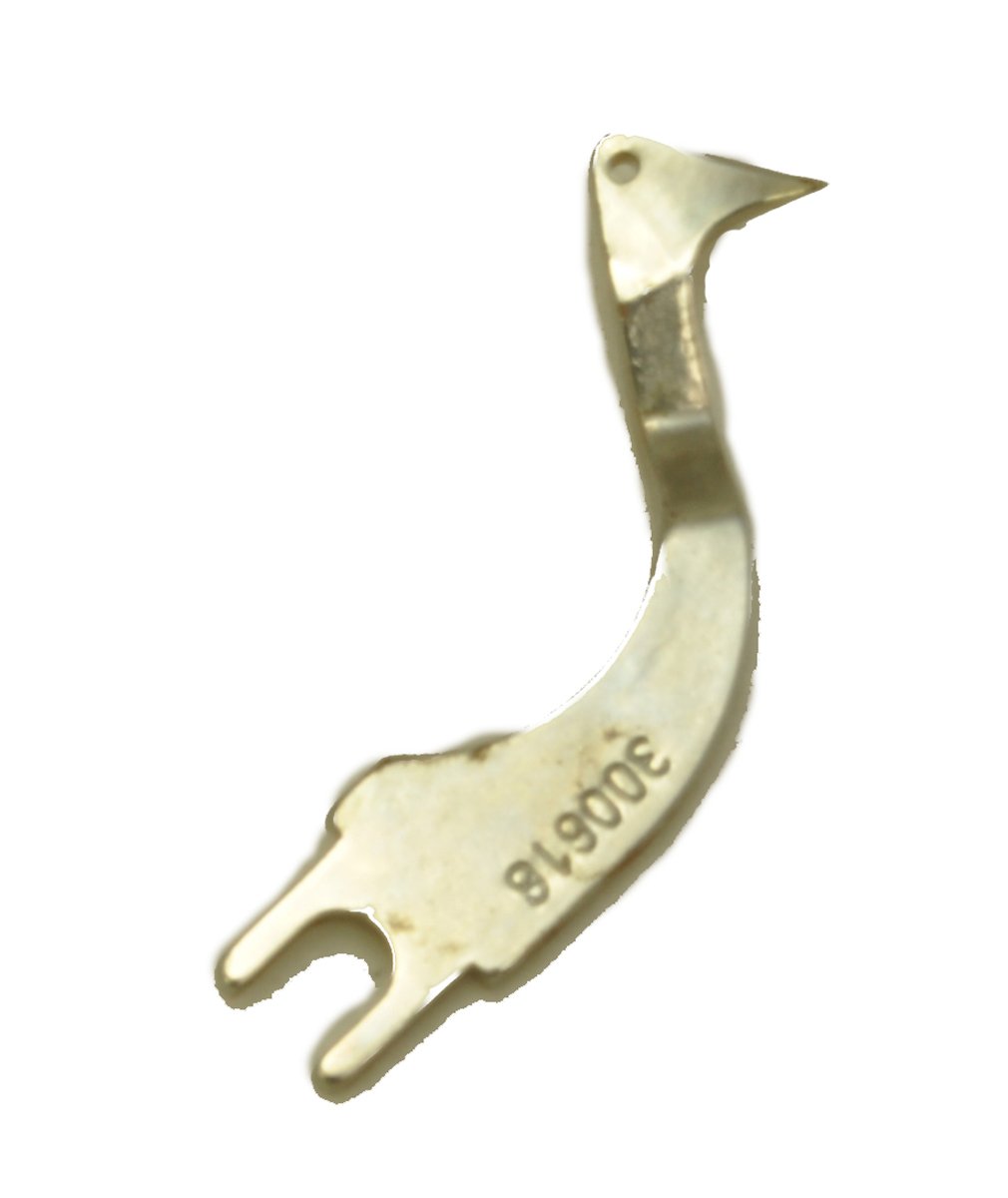

This manual provides essential information for the installation, operation, and maintenance of the Necchi Serger Upper Looper, Model 300616. This component is compatible with various serger machines, including Necchi, Consew, MammyLock, and TuffyLoc models 94, NL4, and ML4. Please read these instructions carefully before attempting installation or use to ensure proper function and longevity of the part.

Safety Information

• Always disconnect your serger machine from the power source before installing, removing, or performing any maintenance on parts.
• Use caution when handling sharp components of the serger.
• Ensure all parts are correctly seated and secured before reconnecting power and operating the machine.
• If you are unsure about any step, consult a qualified sewing machine technician.

Setup and Installation

The upper looper is a critical component in forming the overlock stitch on your serger. Proper installation is essential for correct stitch formation.

1. Preparation: Disconnect the serger from the power outlet. Open the front and side covers of your serger to access the looper area.
2. Remove Old Looper (if applicable): Carefully identify the existing upper looper. Loosen any screws holding it in place and gently remove it. Note its orientation for reference.
3. Install New Looper: Position the new Necchi Serger Upper Looper (Model 300616) into its designated slot. Ensure it aligns correctly with the looper shaft and other components.
4. Secure Looper: Tighten the retaining screw(s) to secure the upper looper firmly in place. Do not overtighten.
5. Check Movement: Manually turn the handwheel to observe the looper's movement. It should move smoothly without obstruction and interact correctly with the lower looper and needles.
6. Close Covers: Once confirmed, close all machine covers.

Operating Principles

The upper looper works in conjunction with the lower looper and the machine's needles to create the characteristic overlock stitch. As the needles penetrate the fabric, the upper looper moves to catch the needle thread, forming a loop. The lower looper then interlocks with this loop, and as the fabric feeds, a secure and finished edge is created. Proper tension settings for all threads are crucial for optimal stitch quality.

Maintenance

Regular maintenance ensures the longevity and performance of your upper looper and serger machine.

• Cleaning: Periodically remove lint and thread debris from around the looper area using a small brush or vacuum cleaner. Accumulation of lint can impede looper movement and affect stitch quality.
• Inspection: Visually inspect the upper looper for any signs of wear, bending, or damage. A damaged looper can cause skipped stitches or thread breakage. Replace if damage is observed.
• Lubrication: Refer to your serger machine's main instruction manual for specific lubrication points and frequency. Ensure no oil comes into contact with the thread paths or tension discs.

Troubleshooting

If you encounter issues after installing the upper looper, consider the following common problems and solutions:

• Skipped Stitches:
  • Ensure the upper looper is installed correctly and securely.
  • Check for bent or dull needles; replace if necessary.
  • Verify thread tension settings.
• Thread Breakage:
  • Inspect the looper for burrs or rough spots that could snag thread.
  • Ensure the thread path is clear and free of obstructions.
  • Check thread quality and tension.
• Uneven Stitches:
  • Confirm the looper is not bent or damaged.
  • Adjust thread tensions for all threads.
  • Ensure the machine is clean and free of lint.

If problems persist, consult your serger machine's comprehensive manual or seek professional assistance.

Specifications

Warranty Information

Specific warranty details for this Necchi Serger Upper Looper (Model 300616) are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please contact the original seller or the manufacturer directly. Retain your proof of purchase for any warranty claims.

Support

For further assistance, technical support, or inquiries not covered in this manual, please reach out to the retailer from whom you purchased this product or contact the Necchi customer support services. Always provide the model number (300616) and your serger machine's model number when seeking support.
