Necchi 521 / White 1477 Sewing Machine Gear 640013008 User Manual

Introduction

This manual provides essential information for the installation, function, and maintenance of the Necchi 521 / White 1477 Sewing Machine Hook Shaft Shuttle Gear, part number 640013008. This component is a critical part of your sewing machine's mechanism, ensuring proper operation.

Product Overview

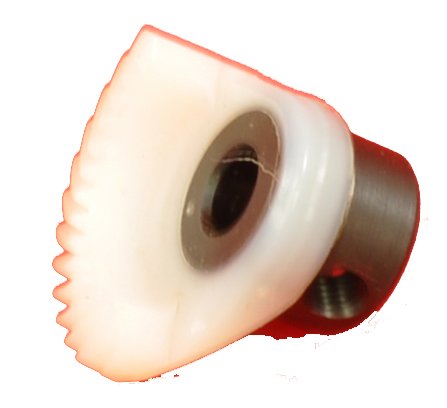

Image: Necchi 640013008 Sewing Machine Hook Shaft Shuttle Gear. This image displays the gear component, typically made of durable plastic or metal, designed to fit specific sewing machine models.

The 640013008 gear is a replacement part designed to restore the functionality of your sewing machine's hook shaft shuttle mechanism. It is engineered for precise fit and reliable performance within compatible models.

Compatibility

This gear is compatible with the following sewing machine models:

• Necchi: 521, 520, FA534, 535
• New Home: 624, 641, 642, 643, 644, 645, 646, 300, Combi 10, 656, 657
• Tacony: 793, FA793
• White: 1477

Always verify your sewing machine's model number before purchasing or installing replacement parts to ensure proper fit and function.

Installation Instructions

Safety First: Before beginning any installation or repair, ensure your sewing machine is unplugged from the power outlet to prevent electrical shock or accidental operation.

1. Access the Gear Mechanism: Depending on your specific sewing machine model, you may need to remove the machine's outer casing or access panels to reach the hook shaft shuttle gear. Refer to your sewing machine's original service manual for precise instructions on accessing internal components.
2. Identify the Old Gear: Locate the existing hook shaft shuttle gear. It is typically connected to the hook shaft and plays a role in the timing of the needle and bobbin.
3. Remove the Old Gear: Carefully remove any screws, clips, or retaining pins holding the old gear in place. Note the orientation and position of the old gear before removal, as this will be crucial for installing the new one correctly. Some gears may be press-fit and require gentle prying.
4. Clean the Area: Before installing the new gear, clean any accumulated lint, dust, or old lubricant from the surrounding mechanism.
5. Install the New Gear: Position the new Necchi 640013008 gear in the exact orientation as the old one. Secure it with the original screws, clips, or pins. Ensure it rotates freely without binding.
6. Check Timing (If Applicable): For some sewing machines, replacing a gear may affect the machine's timing. If your machine requires timing adjustments after gear replacement, consult your sewing machine's service manual or a qualified technician.
7. Reassemble the Machine: Once the new gear is securely installed and timing is verified (if necessary), reattach any removed panels or casings.
8. Test Operation: Plug in the sewing machine and perform a test run at a slow speed without thread to ensure all components move smoothly. Then, test with fabric and thread.

If you are unsure about any step, it is recommended to consult a professional sewing machine technician.

Function and Purpose

The hook shaft shuttle gear is an integral part of the sewing machine's lower mechanism. Its primary function is to transmit rotational motion, ensuring the precise movement of the hook and shuttle assembly. This synchronized movement is essential for forming consistent stitches by catching the needle thread and looping it around the bobbin thread.

Maintenance

Proper maintenance of your sewing machine's internal gears can extend its lifespan and ensure smooth operation.

• Cleaning: Periodically remove lint and debris from around the gear mechanism using a small brush or compressed air.
• Lubrication: Apply a small amount of high-quality sewing machine oil to moving parts as recommended by your sewing machine's manufacturer. Avoid over-lubrication, which can attract dust.
• Inspection: Regularly inspect the gear for signs of wear, cracks, or missing teeth. Replace the gear if any damage is observed.

Troubleshooting

If you encounter issues after installing the new gear, consider the following:

• Machine Not Moving: Ensure the gear is correctly seated and not binding against other components. Check for any obstructions.
• Unusual Noises: Grinding or clicking sounds may indicate improper installation, misalignment, or a damaged gear. Re-inspect the installation.
• Stitch Problems: If the machine is skipping stitches or forming irregular stitches, the timing might be off. This is a common issue after replacing gears. Consult your sewing machine's service manual for timing adjustment procedures or seek professional assistance.
• Gear Does Not Fit: Double-check the compatibility list and your sewing machine's model number. Ensure you have the correct part.

Specifications

Warranty and Support

Information regarding specific warranty terms for this replacement part is typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation for details.

For technical support or further assistance, please contact the retailer or the Necchi customer service department. Always provide your product's model number and the part number (640013008) when seeking support.
