1. Product Overview

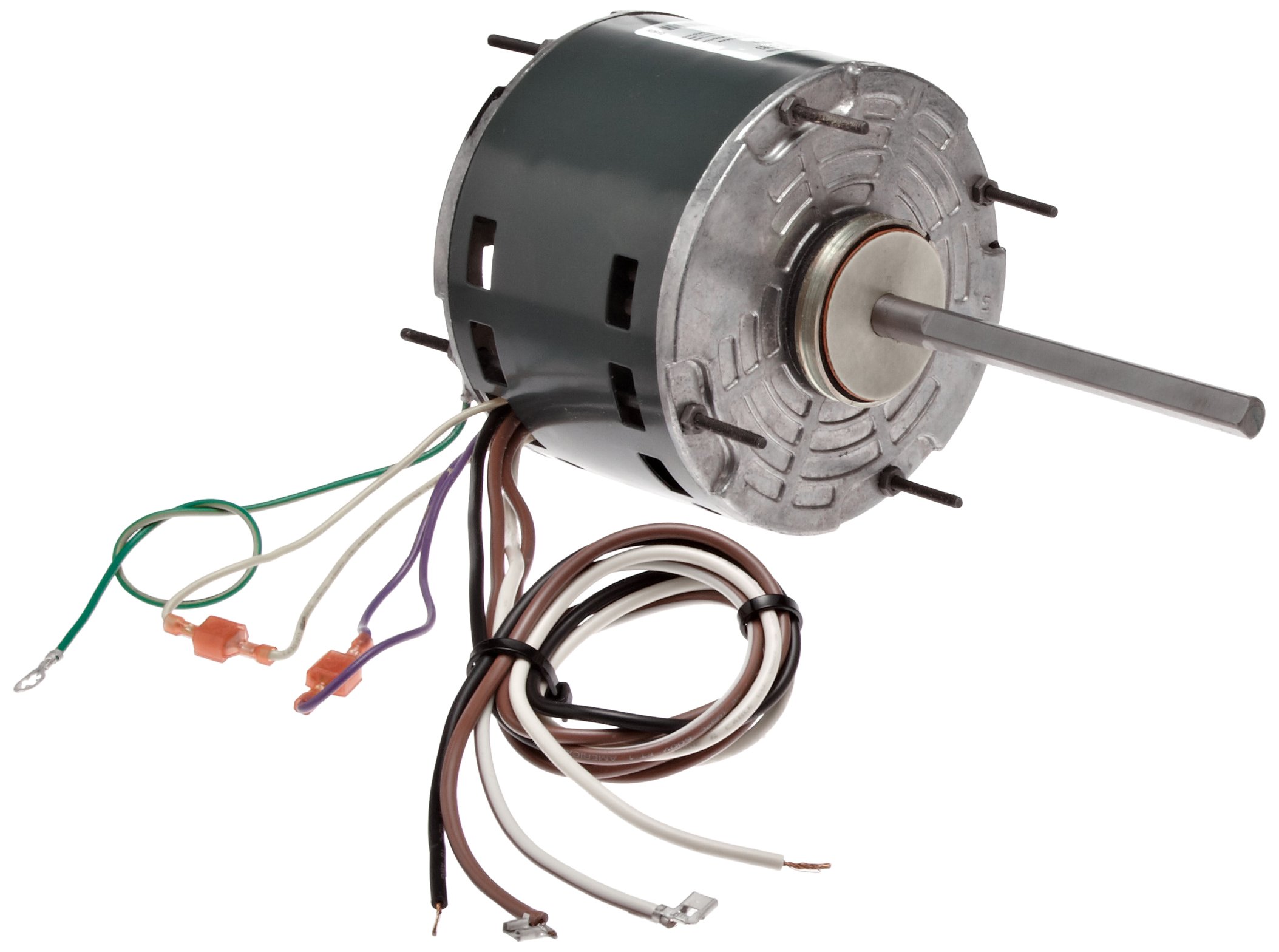

The Fasco D783 is a 5.6-inch frame, totally enclosed permanent split capacitor motor designed for use as a window A/C condenser fan and direct drive blower motor. It features a sleeve bearing and is thermally protected for enhanced safety and durability. This motor is UL recognized and CSA or ULc certified, ensuring compliance with safety standards. It offers reversible rotation for flexible application.
Important Note: This motor should not be used as a replacement where the original motor is rated below 1500 RPM.
Key Features:
- Thermally protected for safety.
- UL recognized; CSA or ULc certified.
- Reversible rotation for versatile installation.
- Designed for window A/C condenser fan and direct drive blower applications.
- Equipped with a durable sleeve bearing.
2. Safety Information
Read and understand all instructions before installing or operating this motor. Failure to follow these instructions may result in electric shock, fire, serious injury, or death.
- Electrical Hazard: Always disconnect power at the circuit breaker or fuse box before attempting any installation, maintenance, or repair.
- Qualified Personnel: Installation and wiring should only be performed by a qualified electrician or HVAC technician in accordance with all local and national electrical codes.
- Proper Grounding: Ensure the motor is properly grounded to prevent electrical shock.
- Thermal Protection: The motor is thermally protected. If the motor overheats, it will shut off automatically and restart once it cools down. Investigate the cause of overheating if this occurs frequently.
- Capacitor: Use only the specified capacitor type and rating for this motor. Incorrect capacitors can lead to motor damage or failure.
- Moving Parts: Keep hands, tools, and clothing clear of moving parts during operation.
3. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | D783 |
| Frame Size | 5.6 inches |
| Motor Type | Permanent Split Capacitor (PSC) |
| Enclosure Type | Totally Enclosed |
| Horsepower (HP) | 1/4 HP (0.25 HP) |
| Revolutions Per Minute (RPM) | 1625 RPM |
| Number of Speeds | 1 Speed |
| Voltage | 208-230 Volts |
| Frequency | 60 Hz |
| Amperage | 1.5 Amps |
| Shaft Diameter | 1/2 inch |
| Shaft Length | 6 inches |
| Motor Length | 4 inches |
| Bearing Type | Sleeve Bearing |
| Protection | Thermally Protected |
| Certifications | UL recognized; CSA or ULc certified |
| Material Type | Copper |
4. Installation Instructions
Proper installation is critical for the safe and efficient operation of the Fasco D783 motor. Always prioritize safety and consult a qualified professional if you are unsure about any step.
- Disconnect Power: Before beginning any work, ensure that the power supply to the equipment (e.g., window A/C unit) is completely disconnected at the main circuit breaker or fuse box. Verify with a voltage tester.
- Remove Old Motor: Carefully disconnect the wiring from the old motor, noting the connections (take photos if necessary). Remove any mounting hardware and extract the old motor.
- Inspect Mounting Area: Clean the mounting area and ensure it is free from debris or corrosion.
- Mount New Motor: Position the Fasco D783 motor in the mounting bracket. Secure it firmly using appropriate hardware. Ensure the motor is stable and does not vibrate excessively when manually rotated.
- Connect Wiring: Refer to the wiring diagram provided with your specific application or the motor's label. Connect the electrical wires to the motor terminals. Ensure all connections are secure and insulated. This motor features reversible rotation; consult your application's requirements for correct rotation direction.
- Install Capacitor: If replacing the motor, it is often recommended to replace the capacitor as well. Connect the new capacitor according to the wiring diagram. Ensure the capacitor's specifications match the motor's requirements.
- Attach Fan Blade/Blower Wheel: Securely attach the fan blade or blower wheel to the motor shaft. Ensure it is properly balanced and has adequate clearance from surrounding components. The shaft measures 1/2" diameter by 6" length.
- Restore Power and Test: Once all connections are secure and verified, restore power to the unit. Observe the motor's operation for any unusual noises, vibrations, or overheating.
5. Operation
The Fasco D783 motor is designed for continuous operation within its specified voltage and current ratings. Once installed and powered, it will drive the connected fan or blower wheel to circulate air.
- Normal Operation: The motor should run smoothly with a consistent speed of 1625 RPM.
- Sound: A slight hum is normal during operation. Any loud grinding, squealing, or excessive vibration indicates a potential issue.
- Temperature: The motor will generate heat during operation. The thermal protection will activate if the motor's internal temperature exceeds safe limits, temporarily shutting it down.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your Fasco D783 motor.
- Power Disconnection: Always disconnect power before performing any maintenance.
- Cleaning: Periodically clean the exterior of the motor to remove dust, dirt, and debris. Accumulated dirt can hinder heat dissipation and lead to overheating. Use a soft brush or compressed air.
- Shaft and Bearings: Inspect the motor shaft and sleeve bearings for any signs of wear or damage. While sleeve bearings are often self-lubricating, excessive noise or resistance may indicate a need for professional inspection or replacement.
- Wiring Connections: Annually check all electrical connections for tightness and signs of corrosion. Loose connections can cause overheating and intermittent operation.
- Fan Blade/Blower Wheel: Ensure the fan blade or blower wheel is clean and free of obstructions. An unbalanced or dirty wheel can cause excessive vibration and stress on the motor.
7. Troubleshooting
If you encounter issues with your Fasco D783 motor, refer to the following troubleshooting guide. Always disconnect power before inspecting the motor.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power supply Faulty wiring Defective capacitor Thermal overload activated Seized bearings | Check circuit breaker/fuse Verify all wiring connections Test and replace capacitor Allow motor to cool; check for obstructions Inspect and replace motor if seized |
| Motor runs, but makes unusual noise (e.g., grinding, squealing) | Worn or dry bearings Fan blade/blower wheel hitting housing Loose mounting hardware Unbalanced fan blade/blower wheel | Inspect bearings; professional service may be required Check clearances and adjust Tighten all mounting bolts Clean and balance fan/wheel |
| Motor overheats and shuts off | Restricted airflow Excessive load Low voltage Defective capacitor Worn bearings | Clean air filters and coils; ensure proper ventilation Verify correct fan/blower size for motor Check voltage supply Test and replace capacitor Inspect bearings |
| Motor vibrates excessively | Loose mounting Unbalanced fan blade/blower wheel Bent shaft | Tighten mounting bolts Clean and balance fan/wheel Motor replacement may be necessary |
If troubleshooting steps do not resolve the issue, contact Fasco customer support or a qualified service technician.
8. Warranty and Support
The Fasco D783 motor is covered by a Manufacturer Warranty. For specific details regarding the warranty period, coverage, and claims process, please refer to the documentation included with your purchase or visit the official Fasco website.
For technical assistance, replacement parts, or warranty inquiries, please contact Fasco customer support directly. Have your motor model number (D783) and purchase information ready when contacting support.
