1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Fasco D727 5.6-Inch Direct Drive Blower Motor. This motor is designed for use in various applications, including furnaces and air conditioners, and features a 1/3 HP, 115 Volts, 1075 RPM, 3-speed design with an OAO enclosure, reversible rotation, and sleeve bearings. Please read this manual thoroughly before proceeding with installation or operation.
2. Safety Information
WARNING: Electrical shock hazard. Disconnect power before servicing. Installation and servicing should be performed by qualified personnel only.
- Always disconnect power at the main service panel before installing or performing maintenance on the motor.
- Ensure all wiring connections comply with local and national electrical codes.
- Use appropriate personal protective equipment (PPE) such as safety glasses and insulated gloves.
- Verify the motor's voltage and current ratings match the power supply.
- Do not operate the motor if it is damaged or if any components are missing.
- This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
3. Product Features
The Fasco D727 motor is engineered for reliable performance in demanding applications. Key features include:
- Horsepower: 1/3 HP
- Voltage: 115 Volts
- Speed: 1075 RPM (3-speed operation)
- Amperage: 5.9 Amps
- Enclosure: OAO (Open Air Over)
- Rotation: Reversible
- Bearings: Sleeve Bearing
- Shaft: 1/2-Inch x 5-1/4-Inch
- Application: Ideal for blowers and fans in furnaces and air conditioners.
4. Setup and Installation
Proper installation is critical for the motor's longevity and safe operation. Refer to the equipment manufacturer's instructions for specific mounting details.
- Power Disconnection: Ensure all power to the equipment is disconnected at the circuit breaker or fuse box before beginning installation.
- Mounting: Securely mount the motor using appropriate hardware. This motor supports all-angle mount bearings. Ensure the motor is firmly seated and aligned to prevent vibration.
- Capacitor Installation: A 5mfd/370V capacitor is required for operation (not included). Connect the capacitor according to the wiring diagram provided with your equipment or the motor's label.
- Wiring Connections:
- Connect the motor's power leads to the equipment's electrical supply, ensuring correct voltage and phase.
- Connect the ground wire to a suitable ground point.
- Verify all connections are tight and insulated.
- This motor features 3 speeds. Consult your equipment's wiring diagram to select the appropriate speed tap.
- The motor has reversible rotation. Adjust wiring as needed to achieve the desired rotation direction for your application.
- Shaft Connection: Connect the blower wheel or fan blade to the motor shaft (1/2-Inch x 5-1/4-Inch) using appropriate fasteners. Ensure the fan is balanced and securely attached.
- Final Check: Before restoring power, double-check all connections and ensure no tools or debris are left inside the equipment.

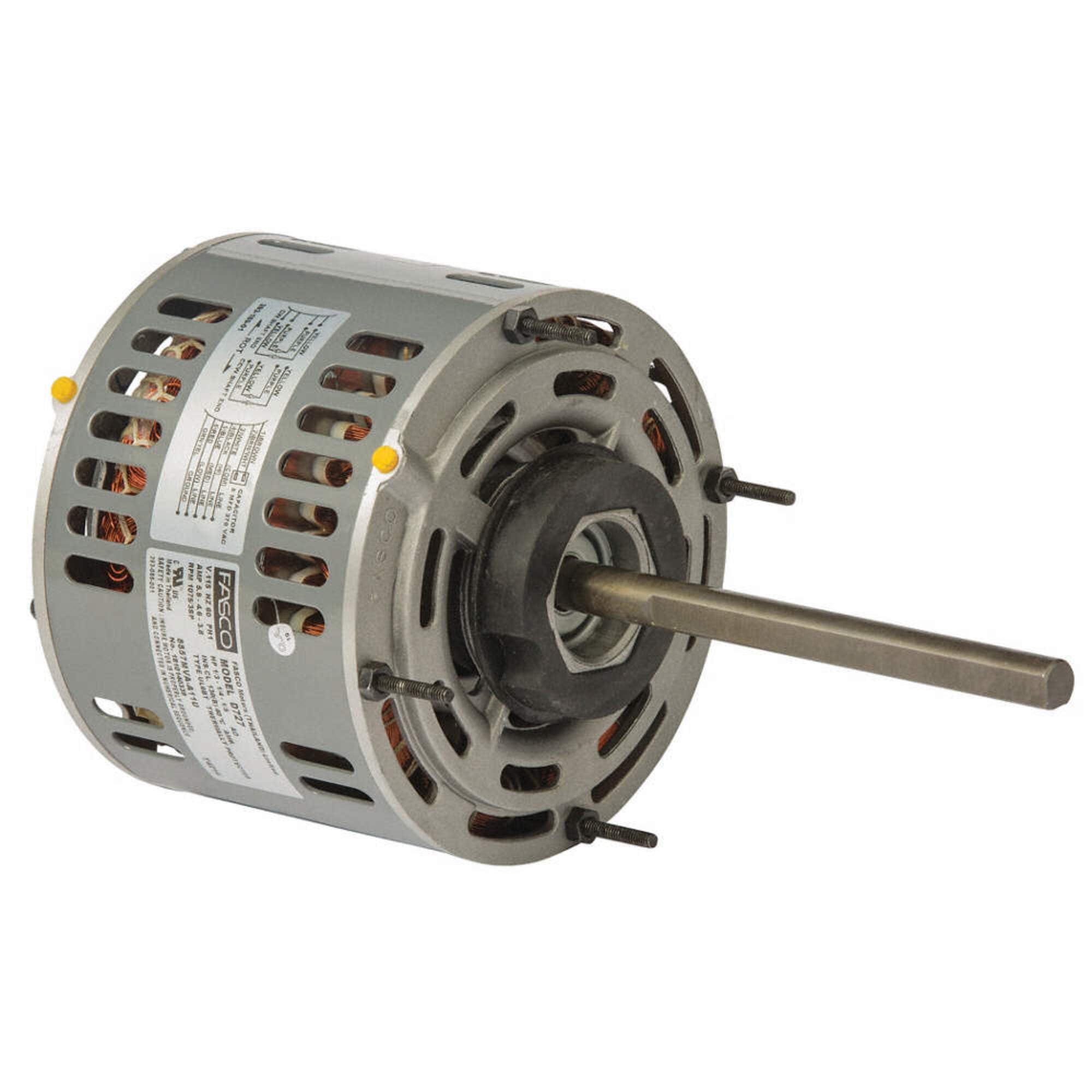

Image 1: Fasco D727 5.6-Inch Direct Drive Blower Motor. This image shows the overall view of the motor, highlighting its compact design and electrical connections. The motor features a robust housing and a visible shaft for fan attachment.
5. Operating Instructions
Once installed, the Fasco D727 motor operates in conjunction with your heating, ventilation, and air conditioning (HVAC) system controls.
- Initial Start-up: After installation and verification of all connections, restore power to the equipment. Initiate a test cycle through your HVAC system's thermostat or control panel.
- Monitoring: Observe the motor during its initial operation for any unusual noises, vibrations, or overheating. The motor should run smoothly and quietly.
- Speed Selection: The motor's 3-speed capability allows for adjustment of airflow. The selected speed is typically controlled by the HVAC system's wiring. Ensure the chosen speed provides adequate airflow for your application without excessive noise or strain on the motor.
- Continuous Operation: The motor is designed for continuous duty within its specified ratings. Avoid operating the motor outside of its voltage, current, and temperature limits.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your Fasco D727 blower motor.
- Power Disconnection: Always disconnect power before performing any maintenance.
- Cleaning: Periodically inspect the motor for dust and debris accumulation. Clean the exterior of the motor with a soft, dry cloth. Ensure the motor's ventilation openings are clear to prevent overheating.
- Bearings: This motor uses sleeve bearings. These are typically pre-lubricated and sealed for life, requiring no additional lubrication under normal operating conditions. If unusual noise or friction is detected, consult a qualified technician.
- Connections: Annually inspect electrical connections for tightness and signs of corrosion.
- Vibration Check: Check for excessive vibration, which can indicate an unbalanced fan, loose mounting, or worn bearings. Address any issues promptly.
7. Troubleshooting
Refer to this section for common issues and their potential solutions. Always disconnect power before attempting any troubleshooting or repairs.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power, faulty wiring, defective capacitor, seized bearings. | Check power supply, verify wiring connections, test/replace capacitor, inspect shaft for free rotation. |
| Motor runs hot | Insufficient airflow, overloaded, incorrect voltage, bearing issues. | Ensure clear ventilation, check for obstructions in blower, verify voltage, inspect bearings. |
| Excessive noise or vibration | Unbalanced fan, loose mounting, worn bearings. | Inspect fan for balance and damage, tighten mounting bolts, check bearings for wear. |
| Motor hums but does not turn | Defective capacitor, seized motor shaft. | Test/replace capacitor, ensure shaft rotates freely. |
If troubleshooting steps do not resolve the issue, contact a qualified service technician.
8. Specifications
| Parameter | Value |
|---|---|
| Brand | Fasco |
| Model | D727 |
| Horsepower (HP) | 1/3 HP (0.33 hp) |
| Voltage | 115 Volts |
| RPM | 1075 rpm |
| Speed | 3 Speed |
| Amperage | 5.9 Amps |
| Enclosure Type | OAO (Open Air Over) |
| Rotation | Reversible |
| Bearing Type | Sleeve Bearing |
| Shaft Dimensions | 1/2-Inch x 5-1/4-Inch |
| Item Weight | 14 pounds |
| Material Type | Copper |
| Required Capacitor | 5mfd/370V (Not Included) |
9. Warranty and Support
This Fasco D727 Blower Motor is covered by a Manufacturer Warranty. For specific details regarding warranty coverage, duration, and claims, please refer to the documentation included with your purchase or contact Fasco customer support directly.
For technical assistance, parts, or service inquiries, please contact Fasco customer support. Contact information can typically be found on the manufacturer's official website or on the product packaging.
