Gecko Alliance Overlay: K-8 8 Button Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Gecko Alliance K-8 8-Button Spa Control Panel Overlay, Model 9916-100130. This overlay is designed to replace an existing worn or damaged overlay on compatible Gecko spa control panels, restoring functionality and appearance.

Product Overview

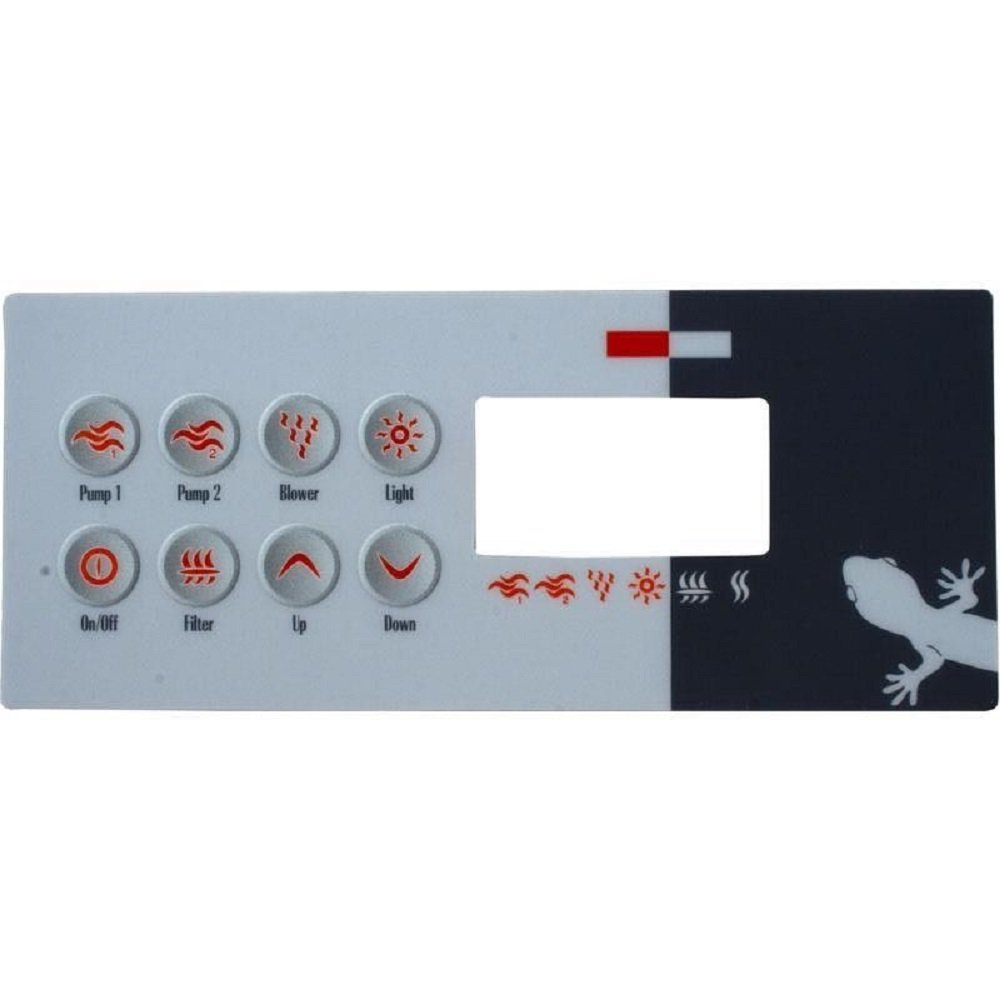

Image: Gecko Alliance K-8 8-Button Spa Control Panel Overlay. This image displays the rectangular overlay, divided into a lighter grey section on the left with eight circular buttons and a darker grey section on the right. The buttons are labeled "Pump 1", "Pump 2", "Blower", "Light", "On/Off", "Filter", "Up", and "Down". A blank rectangular display area is visible on the right side of the button section. The darker section features stylized wave, blower, light, and filter icons, along with a Gecko logo in the bottom right corner.

The Gecko Alliance K-8 overlay features 8 distinct buttons for controlling various spa functions. These include controls for two pumps, a blower, lighting, power on/off, filtration cycles, and temperature adjustment (Up/Down). It is designed for specific Gecko TSC-8 series control panels.

Setup and Installation

Proper installation ensures optimal performance and longevity of the overlay. Follow these steps carefully:

1. Power Off: Before beginning any installation, ensure the spa's main power supply is completely disconnected to prevent electrical hazards.
2. Remove Old Overlay: Carefully peel off the old control panel overlay. If the old overlay is stubborn, gentle heat from a hairdryer can help loosen the adhesive.
3. Clean Surface: Thoroughly clean the control panel surface. Remove all adhesive residue, dirt, and grime. Use an appropriate cleaner that will not damage the panel material. The surface must be completely dry and free of any contaminants before proceeding.
4. Align New Overlay: Carefully align the new Gecko K-8 overlay with the buttons and display window on the control panel. Do not remove the adhesive backing yet. Ensure a perfect fit.
5. Apply Overlay: Once aligned, peel a small section of the adhesive backing from one edge of the new overlay. Press this section firmly onto the control panel. Slowly peel away the rest of the backing while progressively pressing the overlay onto the panel, working from one side to the other to avoid air bubbles.
6. Secure: Apply firm, even pressure across the entire surface of the new overlay, paying special attention to the edges and around the buttons, to ensure a strong bond.
7. Power On: Once the overlay is securely in place, reconnect the spa's main power supply.
8. Test Functions: Test all buttons and the display to ensure proper operation.

Operating Instructions

The Gecko K-8 overlay provides intuitive control over your spa's functions. Refer to your spa's main control system manual for detailed programming instructions.

• On/Off: Press this button to power the spa control system on or off.
• Pump 1: Activates or cycles through speeds (if applicable) for Pump 1. Press once for low speed, twice for high speed, a third time to turn off.
• Pump 2: Activates or cycles through speeds (if applicable) for Pump 2. Press once for low speed, twice for high speed, a third time to turn off.
• Blower: Controls the spa's air blower. Press to turn on/off or cycle through speeds.
• Light: Turns the spa's lights on or off. Multiple presses may cycle through different light modes or colors, depending on your spa's system.
• Filter: Initiates or adjusts the filtration cycle settings. Consult your spa's main manual for specific filter programming.
• Up: Increases the desired temperature setting or navigates menu options upwards.
• Down: Decreases the desired temperature setting or navigates menu options downwards.

Maintenance

To ensure the longevity and appearance of your Gecko K-8 overlay, follow these simple maintenance guidelines:

• Cleaning: Wipe the overlay regularly with a soft, damp cloth. Use mild, non-abrasive cleaners if necessary. Avoid harsh chemicals, solvents, or abrasive materials, as these can damage the overlay's surface and graphics.
• Protection: Protect the control panel from direct, prolonged sunlight exposure when the spa is not in use, as UV rays can degrade the material over time.
• Inspection: Periodically inspect the overlay for any signs of peeling or damage. Address minor peeling promptly to prevent further deterioration.

Troubleshooting

If you encounter issues with your Gecko K-8 overlay, consider the following common solutions:

• Buttons Not Responding:
  • Ensure the overlay is properly seated and adhered to the control panel. Air pockets or improper alignment can prevent button presses from registering.
  • Check if the spa's main power is on.
  • If the issue persists, the underlying control panel may have a fault. Consult a qualified spa technician.
• Overlay Peeling:
  • If minor peeling occurs, carefully re-adhere the section using a suitable adhesive designed for plastics, ensuring it does not interfere with button function.
  • Significant peeling may indicate improper initial installation or material degradation, requiring replacement.
• Display Issues:
  • The overlay itself does not control the display. If the display is blank or malfunctioning, the issue lies with the spa's main control system or display unit. Refer to your spa's primary manual or contact a technician.

Specifications

Note: The "Material" and "Item Dimensions" listed in product specifications often refer to the overall product or packaging, not solely the thin overlay itself. The overlay is typically a durable, adhesive-backed vinyl or plastic film.

Customer Support

For further assistance, technical support, or warranty inquiries regarding your Gecko Alliance K-8 8-Button Overlay, please contact Gecko Alliance customer service or your authorized dealer. Ensure you have your product model number (9916-100130) available when contacting support.

You can often find contact information on the official Gecko Alliance website or through the retailer where the product was purchased.
