Introduction
This manual provides essential instructions for the setup, operation, maintenance, and troubleshooting of your RCA RE20QP29 Remote Control. This remote is designed as a direct replacement for specific RCA television models.
Product Overview

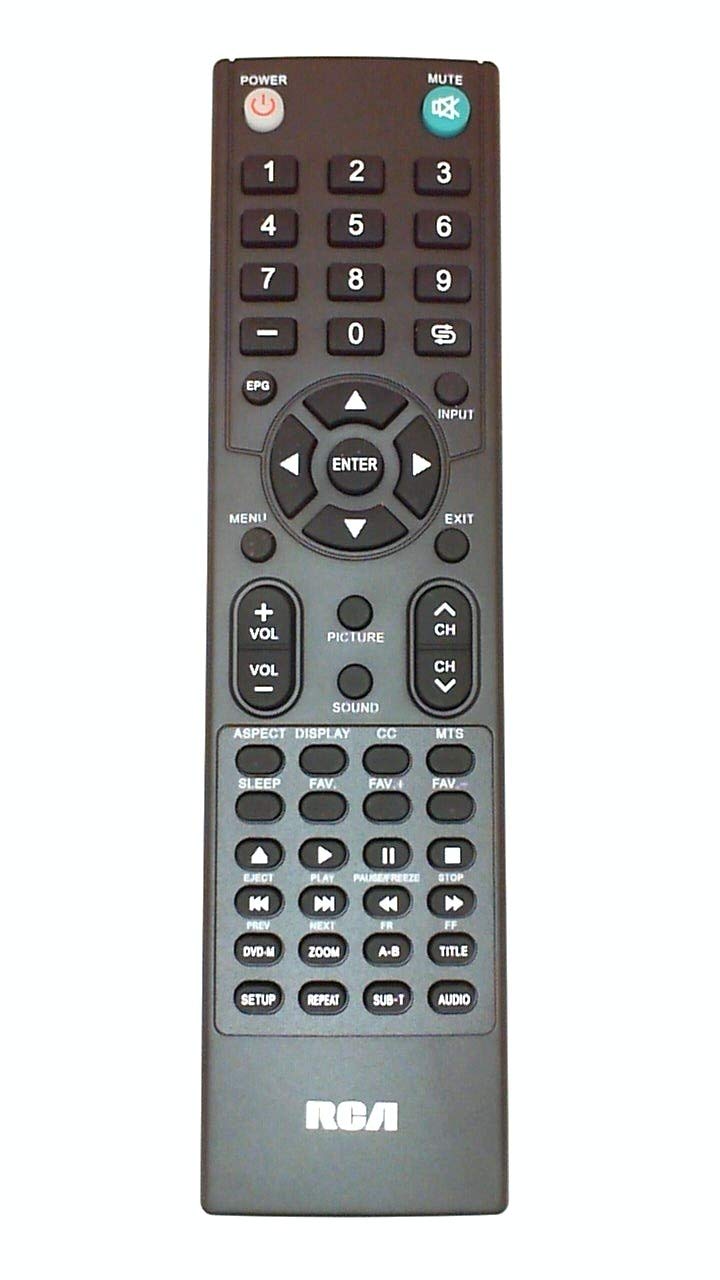

Image of the RCA RE20QP29 remote control, showing its general layout and buttons.
The RCA RE20QP29 is an infrared remote control featuring a button control interface. It is designed to be an ergonomic replacement or spare for compatible RCA television models.
Compatibility
The RE20QP29 remote control is compatible with the following RCA television models:
- RCA 19LA30RQ
- RCA 22LA30RQ
- RCA 22LA45RQ
- RCA 22LA45RQD
- RCA RXV6774
This remote may also be a substitute for part number OARC04G. To ensure compatibility, always verify the part number RE20QP29 matches your original remote or the required part for your television model.
Setup
1. Battery Installation
- Locate the battery compartment on the back of the remote control.
- Slide the battery compartment cover downwards or in the direction indicated by an arrow to open it.
- Insert two new AAA batteries (not included), ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Replace the battery compartment cover, sliding it back into place until it clicks securely.
2. Initial Use
The RCA RE20QP29 remote control is designed for immediate use with compatible RCA television models. No programming or pairing is typically required. Once batteries are installed, point the remote at your television and press the Power button to test functionality.
Operating Instructions
The remote control features standard television control buttons. While the exact layout may vary slightly, common functions include:
- Power: Turns the television on or off.
- Channel Up/Down: Changes the television channel.
- Volume Up/Down: Adjusts the audio volume.
- Mute: Silences the television audio.
- Input/Source: Selects different video input sources (e.g., HDMI, AV).
- Menu: Accesses the television's on-screen menu.
- Navigation Buttons (Arrow Keys, OK/Enter): Used to navigate through menus and confirm selections.
- Number Pad: Directly enters channel numbers.
For specific button functions and their corresponding actions, refer to your television's user manual.
Maintenance
Cleaning
To clean the remote control, use a soft, dry cloth. For stubborn dirt, lightly dampen the cloth with water or a mild, non-abrasive cleaner. Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the remote's surface or internal components.
Battery Replacement
Replace batteries when the remote's response becomes sluggish or stops working. Always replace both batteries at the same time with new ones of the same type (AAA). Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or damage.
Storage
If the remote control will not be used for an extended period, remove the batteries to prevent potential leakage and damage. Store the remote in a cool, dry place away from direct sunlight and extreme temperatures.
Troubleshooting
- Remote not responding:
- Check if the batteries are inserted correctly with the correct polarity.
- Replace old batteries with new ones.
- Ensure there is a clear line of sight between the remote's infrared emitter and the television's IR receiver. Obstructions can block the signal.
- Move closer to the television.
- Some buttons not working:
- This could indicate a specific button malfunction or a compatibility issue with that particular function on your TV.
- Ensure the remote is clean and there is no debris under the buttons.
- Remote works intermittently:
- Weak batteries are a common cause. Replace them.
- Ensure no strong light sources (like direct sunlight or fluorescent lights) are interfering with the IR signal.
If troubleshooting steps do not resolve the issue, contact customer support for further assistance.
Specifications
| Feature | Detail |
|---|---|
| Model Number | RE20QP29 |
| Brand | RCA |
| Connectivity Technology | Infrared |
| Controller Type | Button Control |
| Special Feature | Ergonomic |
| Item Weight | Approximately 1.5 pounds (0.68 kg) |
| Power Source | 2 x AAA Batteries (not included) |
Warranty Information
This RCA RE20QP29 Remote Control comes with a 180-day warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.
Customer Support
For further assistance, technical support, or warranty inquiries, please contact the seller or RCA customer service. Provide your product model number (RE20QP29) and details of your issue for efficient support.
