SCHÜTTE 52425 Vita Thermostatic Shower Mixer Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your SCHÜTTE 52425 Vita Thermostatic Shower Mixer. Please read these instructions carefully before installation and use to ensure proper function and safety.

The SCHÜTTE 52425 Vita Thermostatic Shower Mixer in chrome finish, shown with its packaging.

2. Safety Information

Important Safety Instructions:

• Ensure water supply is turned off before installation.
• The mixer features a Cool Touch function, where an internal cooling channel prevents the surface from heating up, reducing the risk of burns.
• A safety lock at 38°C minimizes the risk of scalding, providing safety for all users, especially children. To exceed 38°C, the safety button must be pressed.
• Always test water temperature before use.

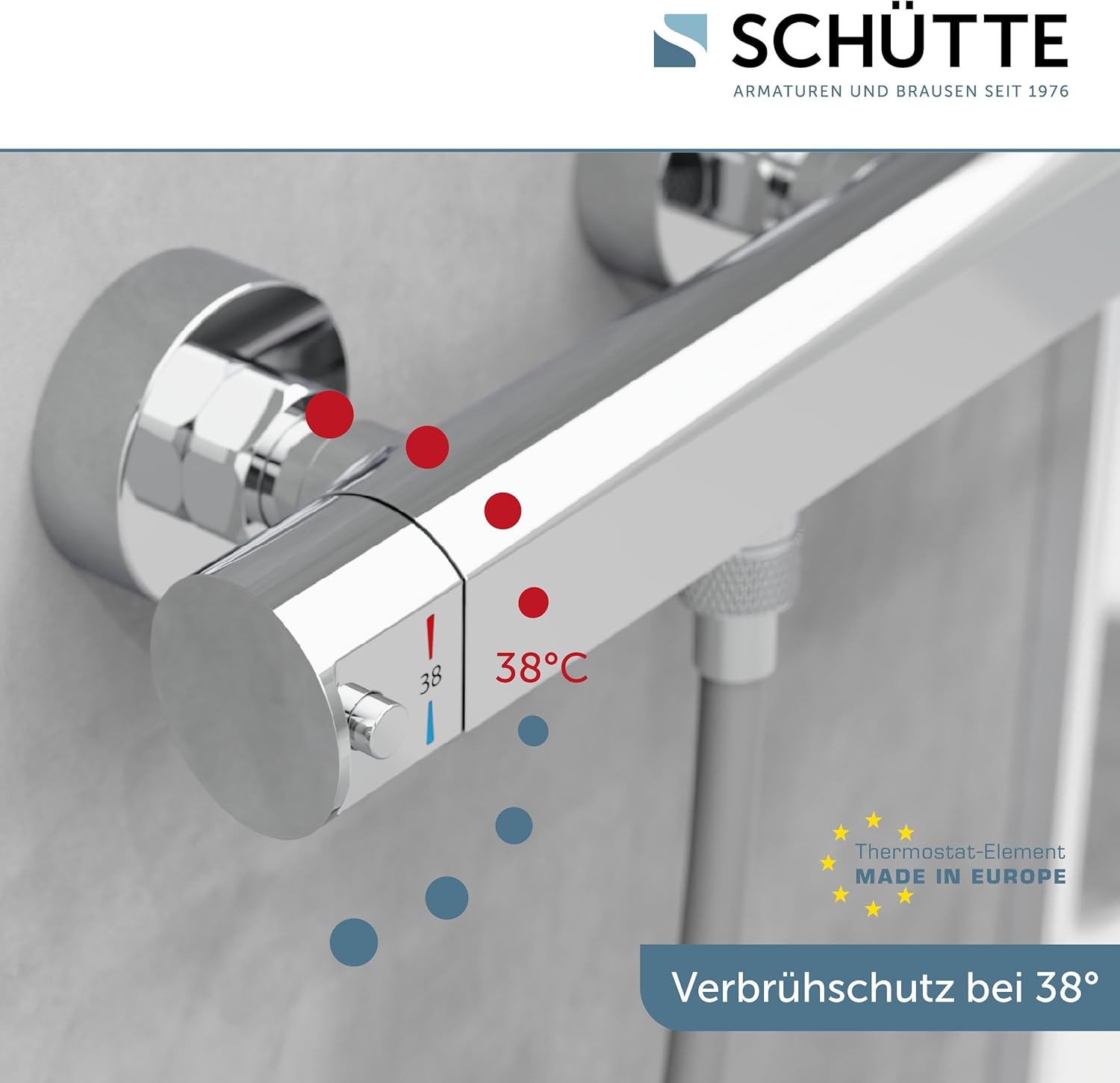

Close-up of the SCHÜTTE Vita Thermostatic Shower Mixer showing the 38°C safety lock feature, designed to prevent scalding.

3. Package Contents

Verify that all components are present before beginning installation:

• Thermostatic Shower Mixer
• Mounting Kit (includes 2 S-connectors and 2 wall rosettes)
• Installation Instructions (this manual)

All components included with the SCHÜTTE Vita Thermostatic Shower Mixer: the mixer unit, S-connectors, wall rosettes, and the instruction manual.

4. Setup and Installation

The SCHÜTTE 52425 Vita Thermostatic Shower Mixer is designed for wall mounting.

Installation Steps:

1. Preparation: Turn off the main water supply. Ensure the wall connections are clean and properly spaced.
2. Mounting S-connectors: Screw the S-connectors into the wall water outlets. Adjust them to ensure the correct distance for the mixer (approximately 150 mm center-to-center). Use sealing tape if necessary.
3. Attach Wall Rosettes: Place the wall rosettes over the S-connectors.
4. Mount the Mixer: Carefully attach the thermostatic mixer to the S-connectors. Tighten the nuts evenly to ensure a secure and watertight seal.
5. Connect Shower Hose: Connect your shower hose to the bottom outlet of the mixer.
6. Test: Turn on the main water supply and check for leaks. Test the temperature and flow functions.

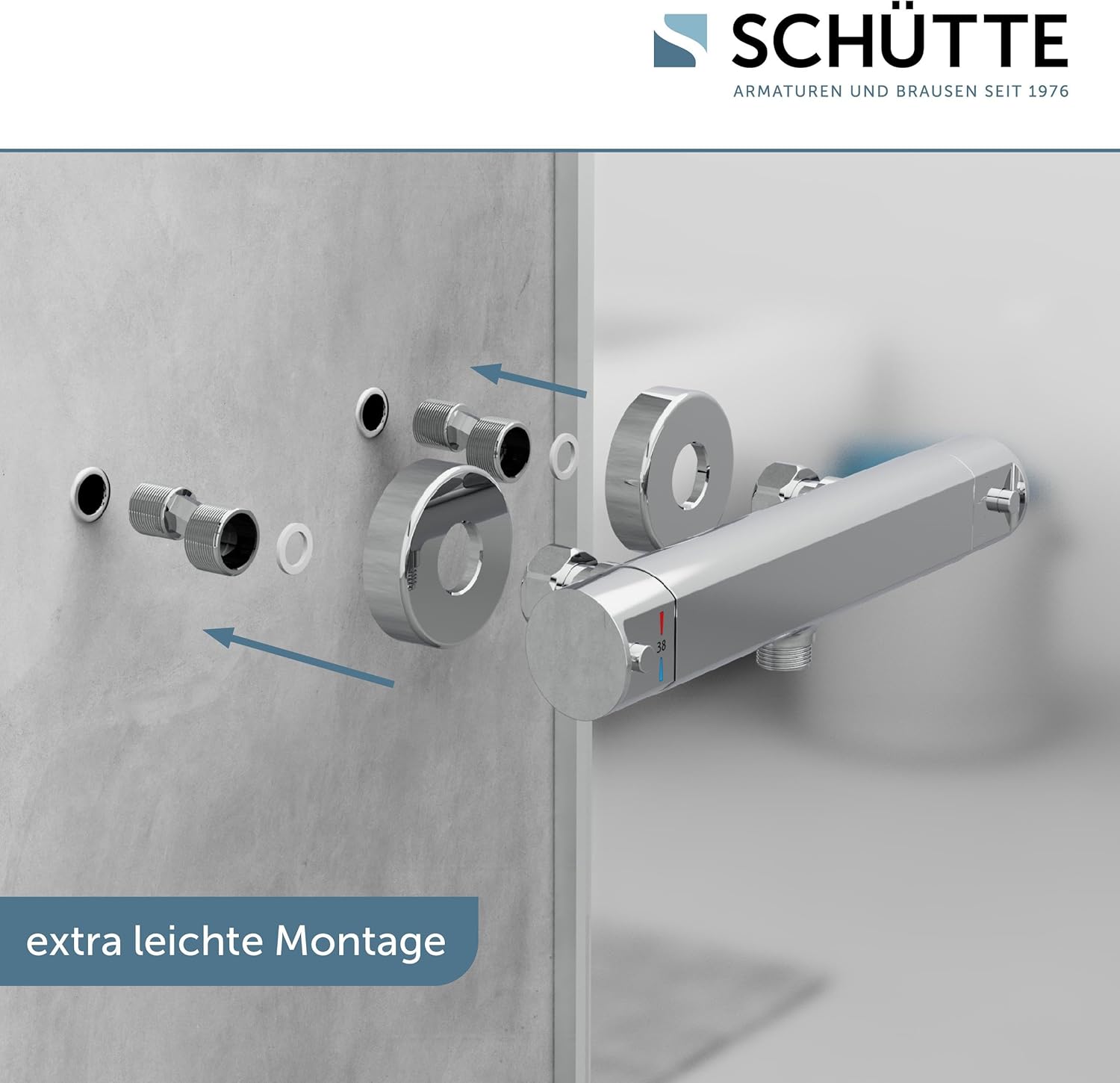

Diagram illustrating the easy installation process of the SCHÜTTE Vita Thermostatic Shower Mixer, showing the S-connectors and wall rosettes.

5. Operating Instructions

The SCHÜTTE Vita Thermostatic Shower Mixer offers precise temperature control and water-saving features.

Temperature Regulation:

The left handle controls the water temperature. Rotate the handle to adjust the temperature. The integrated temperature scale allows for uniform and comfortable temperature regulation. The 38°C safety lock prevents accidental scalding. To select temperatures above 38°C, press the safety button on the handle and continue rotating.

Water Flow Control and Eco-Stop Function:

The right handle controls the water flow. Rotate the handle to increase or decrease the water volume. The mixer includes an Eco-Stop function, which can save up to 50% water. This function provides a pre-set water flow limit. To exceed this limit for higher flow, press the button on the handle and continue rotating.

Close-up of the SCHÜTTE Vita Thermostatic Shower Mixer highlighting the water-saving function on the flow control handle.

6. Maintenance

To ensure the longevity and optimal performance of your thermostatic shower mixer, follow these maintenance guidelines:

• Cleaning: Clean the chrome surfaces regularly with a soft cloth and mild, non-abrasive cleaning agents. Avoid harsh chemicals, scouring pads, or acidic cleaners, as these can damage the finish.
• Limescale Removal: In areas with hard water, limescale deposits may form. Use a descaling agent specifically designed for bathroom fixtures, following the manufacturer's instructions.
• Thermostatic Element: The high-quality thermostatic element is replaceable. If you experience issues with temperature stability, consult a qualified plumber for inspection or replacement.

7. Troubleshooting

If you encounter issues with your SCHÜTTE Vita Thermostatic Shower Mixer, consider the following:

• No Water Flow or Low Pressure: Check if the main water supply is fully open. Inspect the S-connectors and shower hose for blockages or kinks.
• Inconsistent Temperature: Ensure the hot and cold water supplies are correctly connected. Limescale buildup can affect the thermostatic element; try cleaning or consult a professional.
• Leaks: Check all connections for proper tightening. Replace seals if necessary.

For persistent problems, please contact a qualified plumber or SCHÜTTE customer support.

8. Specifications

Technical drawing showing the approximate dimensions of the SCHÜTTE Vita Thermostatic Shower Mixer, including overall length (280mm), connection distance (150mm), and height (45mm).

9. Warranty and Support

For warranty information or technical support, please refer to the official SCHÜTTE website or contact your retailer. Keep your proof of purchase for any warranty claims.
