Dritz Sew You Adjustable Dress Form (Model 20421)

1. Product Overview

The Dritz Sew You Adjustable Dress Form is a tool for garment creation, fitting, and alteration. It provides a customizable body shape to assist with sewing projects, ensuring a precise fit. The form features multiple adjustment points for various body measurements and a stable base for ease of use.

Image: The Dritz Sew You Adjustable Dress Form, Medium size, in Opal Green.

2. Setup and Assembly

Assembly of the Dritz Sew You Dress Form is designed to be straightforward and requires no additional tools. Follow these steps to set up your dress form:

1. Assemble the Base: Connect the four plastic legs to the central pole bracket. Ensure they are securely attached to provide stability.
2. Adjust Pole Height: Extend the height-adjustable center pole to your desired working height. Secure it by tightening the knob on the pole.
3. Attach Dress Form Torso: Carefully place the dress form torso onto the top of the assembled pole. Ensure it is firmly seated and stable.
4. Secure Torso: Tighten the screw located underneath the dress form torso to secure it to the pole.
5. Attach Hem Marker: The 360-degree adjustable hem marker can be attached to the center pole at the desired height for accurate hemming.

Video: Official Dritz video demonstrating the assembly and basic adjustments of the Sew You Dress Form.

3. Operating the Dress Form

The Dritz Sew You Dress Form offers 12 multi-point body adjustments to match specific measurements.

3.1. Body Adjustments

• Bust, Waist, Hips: Use the 9 smooth-rolling adjustment wheels located at the sides and back of the form. Turn these wheels to expand or contract the form in ½-inch increments to match your bust, waist, and hip measurements.
• Neck Adjustment: A dedicated dial on the neck allows for adjustment to match neck circumference.
• Torso Length: The torso can be unlocked and extended by up to 2 inches to match your back waist length.
• Height Adjustment: The center pole allows the form's height to be adjusted up to 63 inches to align with your shoulder-to-floor measurement.

Image: Visual guide to the adjustable measurements including neck, bust, waist, back waist length, and hips.

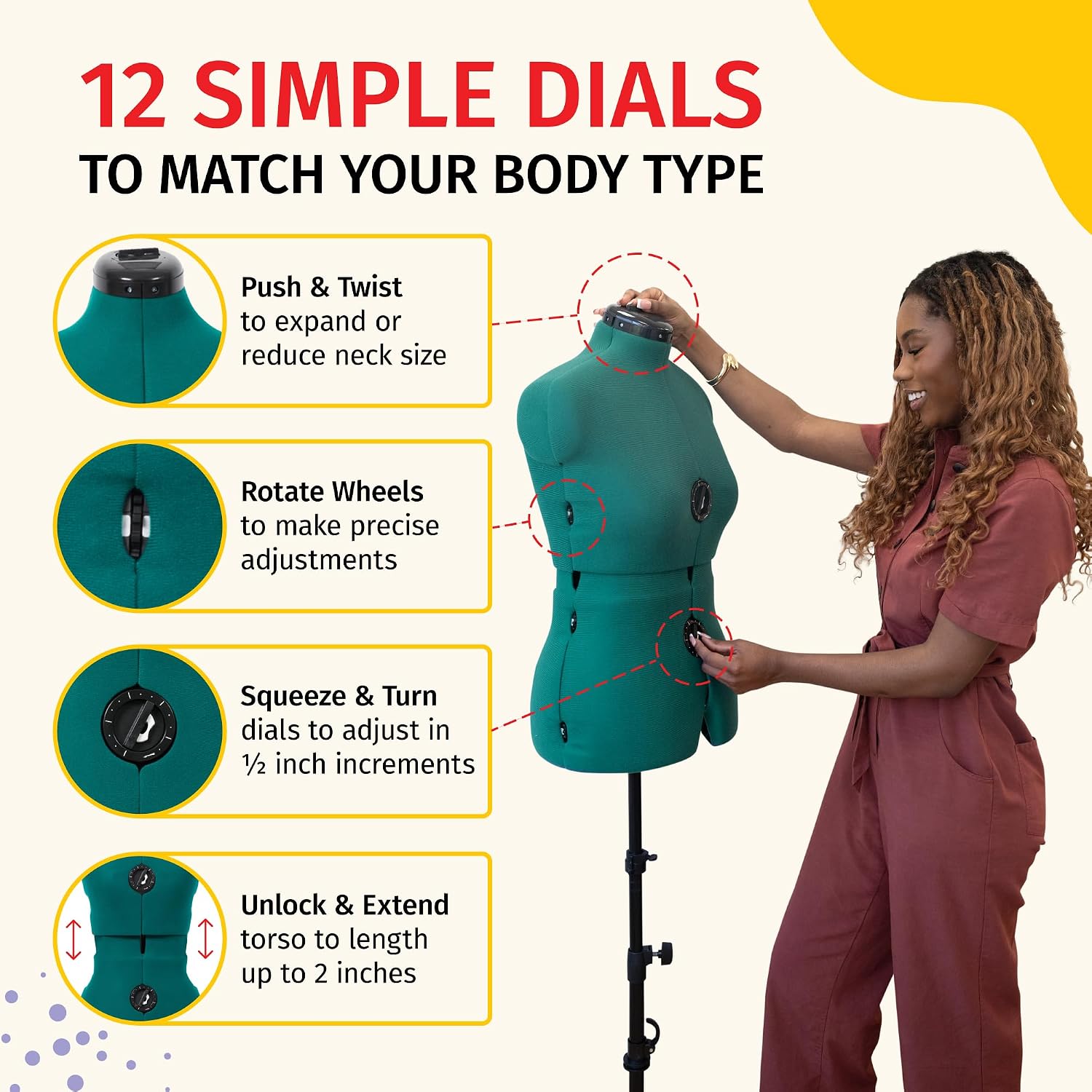

Image: Detailed view of the push & twist neck dial, rotate wheels for precise adjustments, squeeze & turn dials for ½-inch increments, and unlock & extend torso mechanism.

3.2. Pinning and Draping

The dress form features a foam-backed surface that allows for secure pinning of fabrics. Pins should be inserted at an angle to ensure stability and prevent damage to the form.

• Secure Pinning: Insert pins at an angle into the foam-backed surface to hold fabric securely for draping, fitting, and styling.
• Built-in Pin Cushion: A pin cushion is integrated into the neck cap for convenient storage and access to pins.

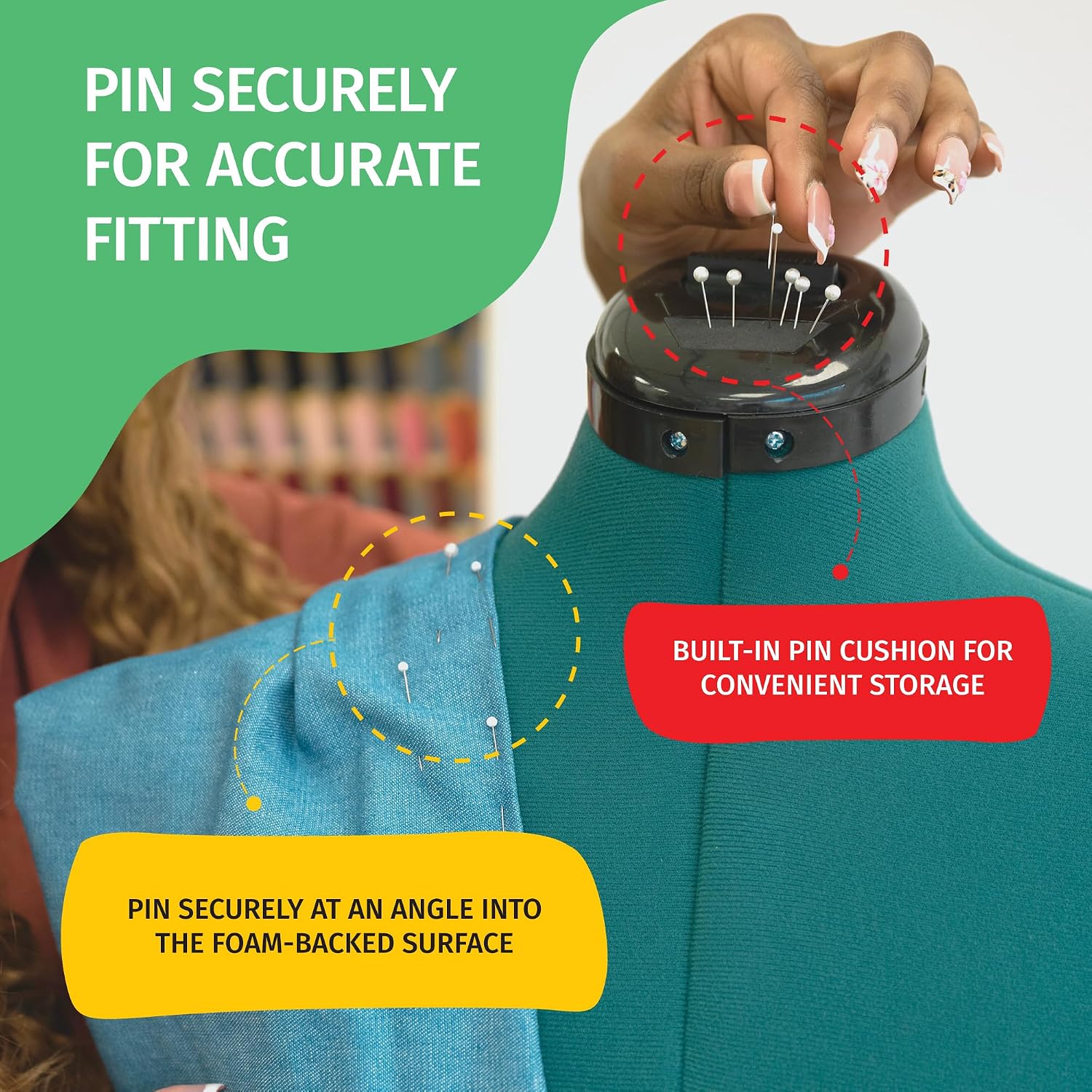

Image: Demonstration of pinning fabric securely at an angle into the foam-backed surface, highlighting the built-in pin cushion.

3.3. Hem Marking

The adjustable hem marker facilitates accurate and even hemming.

• Adjust Hem Marker: Position the 360-degree hem marker at the desired height on the center pole.
• Mark Hem: Rotate the dress form to mark an even hemline around the garment.

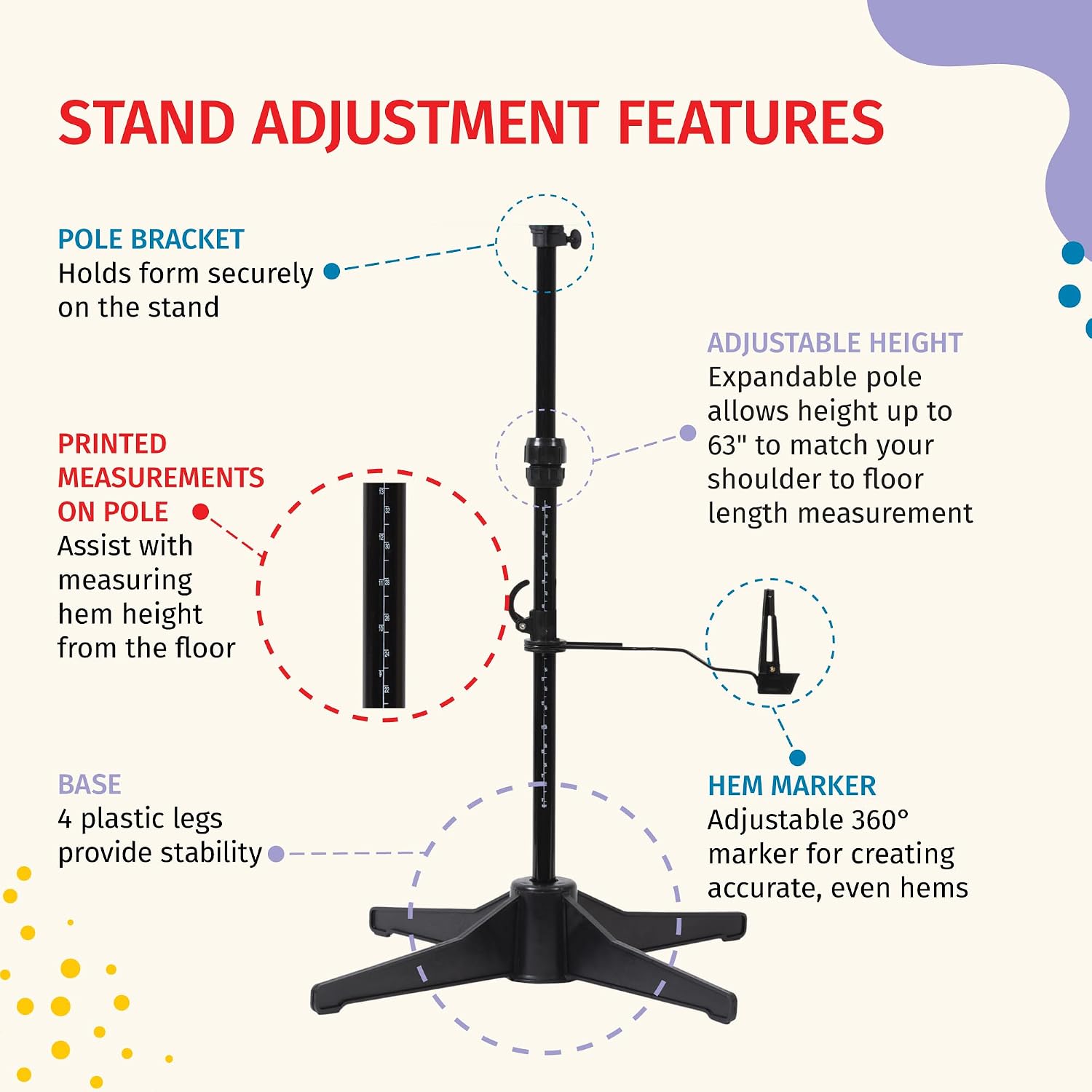

Image: Illustration of the stand adjustment features, including the pole bracket, adjustable height, printed measurements on the pole, base, and the 360-degree adjustable hem marker.

4. Sizing and Measurements

The Dritz Sew You Adjustable Dress Form (Model 20421) is designed for Medium/Large sizes, corresponding to US women's approximate sizes 12-18. Accurate body measurements are crucial for optimal use.

4.1. Measurement Ranges

For best results, measure your body accurately and adjust the dress form to match these measurements. You can record your measurements directly on the white tab areas of the adjustment wheels using a fine-tip marker for easy recall.

Image: Dritz Sew You Adjustable Dress Form, Small size, in Opal Green. This image shows a different size variant but illustrates the product design.

5. Maintenance

To ensure the longevity and optimal performance of your Dritz Sew You Adjustable Dress Form, consider the following maintenance guidelines:

• Cleaning: Wipe the fabric surface with a damp cloth as needed. Avoid harsh chemicals that may damage the fabric or plastic components.
• Storage: Store the dress form in a dry environment away from direct sunlight to prevent material degradation.
• Adjustment Mechanisms: Periodically check the adjustment wheels and knobs for smooth operation. If they become stiff, a small amount of silicone lubricant can be applied, avoiding contact with the fabric.

6. Troubleshooting

This section addresses common issues you might encounter with your Dritz Sew You Adjustable Dress Form.

• Difficulty Adjusting Dials: If the adjustment wheels are hard to turn, ensure no fabric or debris is obstructing the mechanism. Apply gentle, even pressure. If persistent, a small amount of lubricant may help.
• Form Not Stable: Verify that the base legs are fully extended and securely locked. Ensure the torso is tightly fastened to the center pole using the screw underneath.
• Pins Not Holding: Ensure pins are inserted at an angle into the foam-backed surface. Straight insertion may not provide sufficient grip.

7. Specifications

8. Warranty and Support

For warranty information or product support, please refer to the official Dritz website or contact their customer service. Specific warranty details are not provided in this manual.

Official Dritz Website: www.dritz.com
