1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Century C033 Electric Motor. Please read this manual thoroughly before attempting to install or operate the motor. Retain this manual for future reference.
2. Safety Information
WARNING: Risk of electric shock and injury. Always disconnect power before installing, servicing, or cleaning the motor.
- Ensure all electrical connections comply with local and national electrical codes.
- Installation and servicing should only be performed by qualified personnel.
- Do not operate the motor in wet or damp conditions unless specifically rated for such environments.
- Keep hands, clothing, and tools clear of rotating parts.
- Ensure proper grounding to prevent electrical hazards.
3. Product Overview
The Century C033 is a 1/6 HP electric motor designed as an OEM direct replacement for various HVAC wall and ceiling units. It features a single speed, reversible rotation, and a keyed shaft for secure attachment.

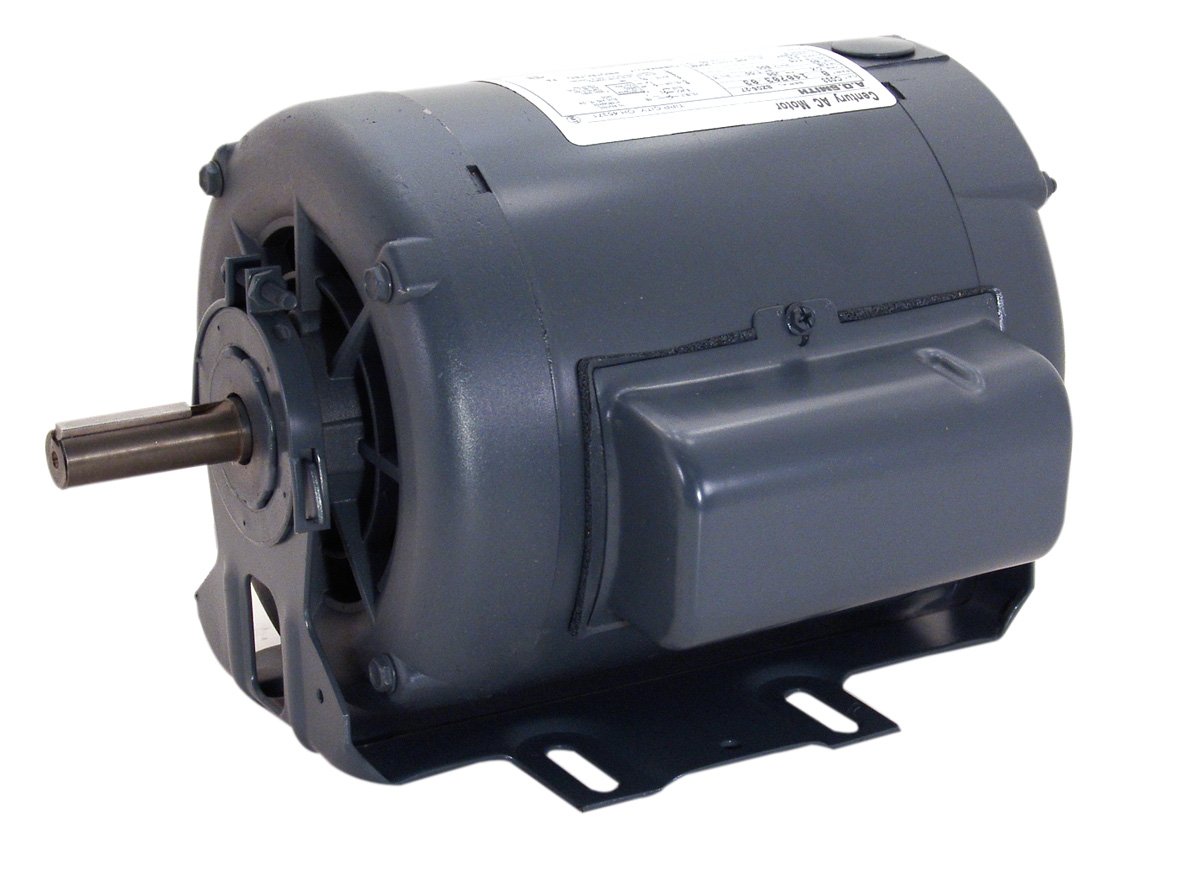

Image 1: Century C033 Electric Motor. This image displays the general appearance of the Century C033 electric motor, highlighting its compact design and shaft.
Key Features:
- Horsepower: 1/6 HP
- RPM: 800 RPM
- Speed: 1 Speed
- Voltage: 115 volts
- Frame: 56 Frame
- Shaft: 5/8-Inch x 2-Inch Keyed Shaft
- Rotation: Reversible
4. Setup and Installation
Proper installation is crucial for the motor's performance and longevity. It is highly recommended that installation be performed by a certified electrician or HVAC technician.
Installation Steps:
- Disconnect Power: Ensure all power to the equipment where the motor will be installed is completely disconnected at the main breaker.
- Remove Old Motor: Carefully remove the existing motor, noting all wiring connections and mounting positions.
- Mounting: Securely mount the Century C033 motor using appropriate fasteners. Ensure the motor is stable and aligned correctly with the driven component (e.g., fan blade).
- Wiring: Connect the motor's electrical leads according to the wiring diagram provided with your specific HVAC unit or the motor's label. Pay close attention to voltage and grounding requirements.
- Shaft Connection: Attach the driven component to the 5/8-inch keyed shaft, ensuring it is properly seated and secured with a key and set screw.
- Verify Connections: Double-check all electrical and mechanical connections for tightness and correctness.
- Restore Power: Once installation is complete and verified, restore power to the equipment.
5. Operating Instructions
The Century C033 motor is designed for continuous operation within its specified ratings.
Starting the Motor:
After proper installation and power connection, the motor will start when the associated HVAC unit or control system initiates operation. Ensure the motor runs smoothly without excessive noise or vibration.
Reversible Rotation:
This motor features reversible rotation. The direction of rotation is typically determined by the wiring configuration. Refer to the motor's wiring diagram or the HVAC unit's manual for instructions on how to change the rotation direction if necessary.
6. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your motor. Always disconnect power before performing any maintenance.
- Cleaning: Periodically clean the exterior of the motor to prevent dust and debris buildup, which can impede cooling. Use a soft, dry cloth or compressed air.
- Inspection: Regularly inspect the motor for any signs of wear, damage, or loose connections. Check for unusual noises or vibrations during operation.
- Lubrication: This motor is typically designed with permanently lubricated bearings and generally does not require additional lubrication. Refer to the motor's label or specific documentation for any lubrication requirements.
- Ventilation: Ensure the motor's ventilation openings are clear and unobstructed to prevent overheating.
7. Troubleshooting
If you encounter issues with your Century C033 motor, refer to the following common troubleshooting steps. For complex issues, contact a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not start | No power, incorrect wiring, seized bearings, faulty capacitor (if applicable) | Check power supply and circuit breaker. Verify wiring connections. Inspect for obstructions. Consult a technician. |
| Motor overheats | Poor ventilation, excessive load, incorrect voltage, bearing issues | Ensure clear airflow. Reduce load if possible. Verify correct voltage supply. Inspect bearings. |
| Excessive noise or vibration | Loose mounting, unbalanced load, worn bearings | Tighten mounting bolts. Check for balanced fan blade/load. Inspect and replace worn bearings if necessary. |
8. Specifications
| Specification | Value |
|---|---|
| Brand | Century |
| Model | C033 |
| Horsepower (HP) | 1/6 HP |
| Revolutions Per Minute (RPM) | 800 RPM |
| Speed | 1 Speed |
| Voltage | 115 volts |
| Frame | 56 Frame |
| Shaft Dimensions | 5/8-Inch x 2-Inch Keyed |
| Rotation | Reversible |
| Material | Copper |
| Manufacturer | Century Electric/AO Smith Motors Co |
9. Warranty and Support
For warranty information and technical support, please refer to the documentation provided with your purchase or contact Century customer service. Keep your proof of purchase for warranty claims.
Customer Support: Please visit the official Century website or contact your authorized dealer for assistance.
