1. Introduction
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your new Rotary Deck Belt. This belt is designed as a replacement for Husqvarna part number 532-408381 and is compatible with 38-inch side discharge lawn mower models LTH2038 and LT19538. Please read this manual thoroughly before attempting any installation or maintenance procedures to ensure safety and optimal performance.
2. Safety Information
Always prioritize safety when working with machinery. Failure to follow safety instructions can result in serious injury.
- Disconnect Power: Before beginning any work on the lawn mower, ensure the engine is turned off, the spark plug wire is disconnected, and the key is removed to prevent accidental starting.
- Wear Protective Gear: Always wear appropriate personal protective equipment, including safety glasses and gloves, to protect against sharp edges and moving parts.
- Allow Cooling: If the mower has been recently operated, allow the engine and deck components to cool down before handling to avoid burns.
- Secure Equipment: When lifting or tilting the mower deck, ensure it is securely supported to prevent it from falling.
- Read Mower Manual: Refer to your lawn mower's original owner's manual for specific safety precautions and deck removal procedures.
3. Setup and Installation
This section outlines the general steps for replacing the deck belt. Specific procedures may vary slightly depending on your exact mower model. Always consult your mower's owner's manual for detailed instructions.
3.1 Tools Required
- Socket wrench set
- Pliers
- Gloves
- Safety glasses
3.2 Installation Steps
- Prepare the Mower: Park the lawn mower on a flat, level surface. Turn off the engine, remove the ignition key, and disconnect the spark plug wire. Engage the parking brake.
- Lower the Deck: Lower the mower deck to its lowest cutting position.
- Remove Old Belt: Carefully locate the existing deck belt. You may need to release tension from idler pulleys or remove guards to access the belt. Note the routing of the old belt around all pulleys before removal. A diagram in your mower's manual can be very helpful.
- Inspect Pulleys: While the belt is off, inspect all pulleys for wear, damage, or excessive play. Replace any worn components.
- Install New Belt: Route the new Rotary Deck Belt (part number 532-408381) around the engine pulley, deck pulleys, and idler pulleys, following the exact path of the old belt. Ensure the belt is seated correctly in all pulley grooves.
- Tension the Belt: Re-engage any tensioning mechanisms or springs that were released. Ensure the belt has proper tension as specified in your mower's manual.
- Reassemble: Reinstall any guards or covers that were removed.
- Reconnect Power: Reconnect the spark plug wire.

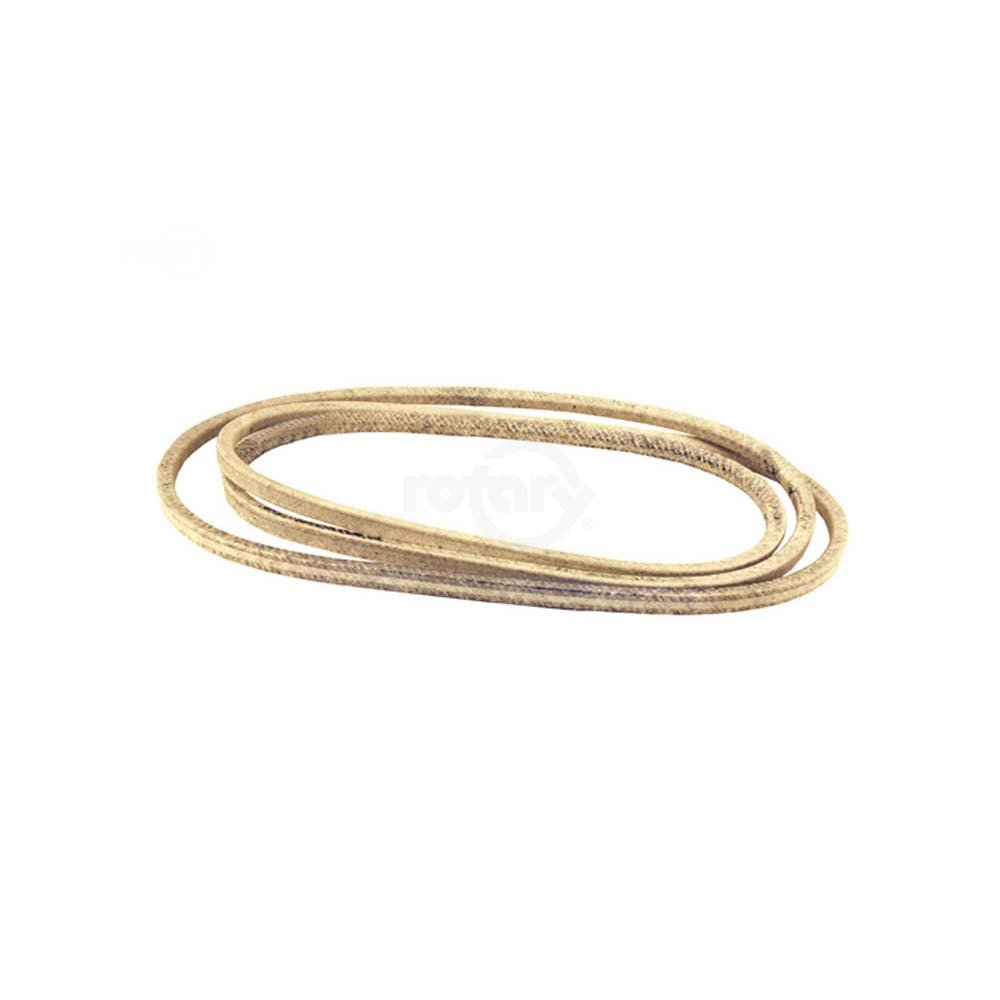

Figure 1: Rotary Deck Belt (1/2" x 96.4"). This image shows the replacement deck belt, which is crucial for power transmission in compatible Husqvarna lawn mowers.
4. Post-Installation Check
After installing the new deck belt, perform the following checks before operating the mower:
- Visual Inspection: Ensure the belt is correctly seated on all pulleys and there are no twists or kinks.
- Test Engagement: With the engine running (and blades disengaged), slowly engage the mower deck to ensure the belt engages smoothly and the blades spin correctly. Listen for any unusual noises.
- Initial Operation: Operate the mower in a clear area for a short period to confirm proper function before resuming normal mowing tasks.
5. Maintenance
Regular maintenance of your deck belt can significantly extend its lifespan and ensure consistent mower performance.
- Regular Inspection: Periodically inspect the belt for signs of wear, cracking, fraying, glazing, or stretching. Replace the belt if any significant wear is observed.
- Keep Clean: Keep the belt and pulleys free from grass clippings, dirt, and debris. Accumulation can cause slippage and premature wear.
- Proper Tension: Ensure the belt maintains proper tension. An overly tight belt can strain pulleys and bearings, while a loose belt can slip and cause inefficient cutting.
- Avoid Obstacles: Minimize impact with obstacles during mowing, as this can shock the belt and cause damage.
6. Troubleshooting
This section addresses common issues you might encounter with your deck belt.
| Problem | Possible Cause | Solution |
|---|---|---|
| Belt slips or squeals | Incorrect tension, worn belt, glazed pulleys, debris on belt/pulleys | Adjust tension, replace belt, clean pulleys, remove debris |
| Belt comes off pulleys | Incorrect routing, worn pulleys, bent pulley brackets, incorrect belt size | Verify routing, inspect/replace pulleys/brackets, ensure correct belt size |
| Premature belt wear | Misaligned pulleys, excessive tension, operating in heavy conditions, worn bearings | Check pulley alignment, adjust tension, avoid overloading mower, inspect/replace bearings |
| Mower blades not engaging | Broken belt, dislodged belt, engagement mechanism fault | Inspect and replace/re-route belt, check engagement lever/cable |
7. Specifications
Key specifications for the Rotary Deck Belt (Replaces Husqvarna 532-408381):
- Part Number: Replaces Husqvarna 532-408381
- Dimensions: 1/2" (12.7 mm) width x 96.4" (2448.56 mm) length
- Material: Aramid cord construction
- Style: Wrapped molded HA, double cover, clutching-white color
- Compatible Models: Husqvarna LTH2038, LT19538 (38" side discharge models)
- Brand: Rotary
8. Warranty Information
For specific warranty terms and conditions related to this Rotary Deck Belt, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty coverage typically addresses manufacturing defects.
9. Customer Support
If you have any questions regarding the installation, operation, or maintenance of your Rotary Deck Belt, or if you require technical assistance, please contact the retailer from whom you purchased the product. You may also refer to the official Rotary website for general product information.
