Nordlux Vejers Wall Light with Motion Sensor

Introduction

Thank you for choosing the Nordlux Vejers Wall Light. This outdoor luminaire is designed to provide reliable illumination with the added convenience of an integrated motion sensor. Crafted from durable galvanized metal and glass, it is built to withstand outdoor conditions and offers a modern aesthetic. This manual provides essential information for safe installation, operation, and maintenance of your new wall light.

Image: The Nordlux Vejers Wall Light, showcasing its galvanized finish and classic design with a clear glass shade and integrated motion sensor.

Safety Information

• Always disconnect power at the main fuse box before installation, maintenance, or bulb replacement.
• Installation must be performed by a qualified electrician in accordance with local wiring regulations.
• This product is designed for outdoor use only (IP54 rated). Ensure all connections are properly sealed against moisture.
• Do not exceed the maximum wattage of 60W for the E27 bulb.
• Ensure the mounting surface is stable and can support the weight of the fixture (approximately 1.56 kg).
• Keep packaging materials out of reach of children.

Package Contents

Verify that all components are present before beginning installation:

• Nordlux Vejers Wall Light fixture (galvanized metal and glass)
• Mounting hardware (screws, wall plugs)
• Instruction manual

Note: Bulb (E27, max. 60W) is not included and must be purchased separately.

Setup

1. Choosing a Location

Select a suitable outdoor wall location that provides adequate coverage for the motion sensor. Consider the light's dimensions (9.5 x 9.5 x 23.01 cm) and the desired illumination area.

Image: Technical drawing illustrating the dimensions of the Nordlux Vejers Wall Light: 9.5 cm (depth from wall), 22 cm (width), 23 cm (height), and 26 cm (total height including mounting arm).

2. Mounting the Fixture

1. Turn off power at the circuit breaker before starting.
2. Mark the drilling points on the wall using the fixture's mounting plate as a template.
3. Drill holes and insert appropriate wall plugs.
4. Secure the mounting plate to the wall using the provided screws.

3. Electrical Connection

1. Connect the household wiring to the fixture's terminals according to local electrical codes (Live, Neutral, Earth). Ensure all connections are secure and insulated.
2. Carefully tuck wires into the junction box or mounting area.

4. Installing the Bulb

1. Unscrew the glass shade or access panel.
2. Screw an E27 bulb (max. 60W) into the lamp holder.
3. Replace the glass shade or access panel, ensuring it is securely fastened and sealed for IP54 protection.

Image: The Nordlux Vejers Wall Light mounted on an exterior wall, demonstrating its appearance when installed and illuminated.

Operating Instructions

Motion Sensor Functionality

The Nordlux Vejers Wall Light features an integrated motion sensor that automatically turns the light on when motion is detected within its range and off after a set period of no motion.

• Detection Range: The sensor typically detects motion up to 8 meters, with a wide angle of coverage.
• Adjustments: The motion sensor may have adjustable settings for sensitivity (how easily it triggers) and time duration (how long the light stays on after detection). Refer to the small dial or switch on the sensor unit, usually located at the bottom of the fixture, for these adjustments.

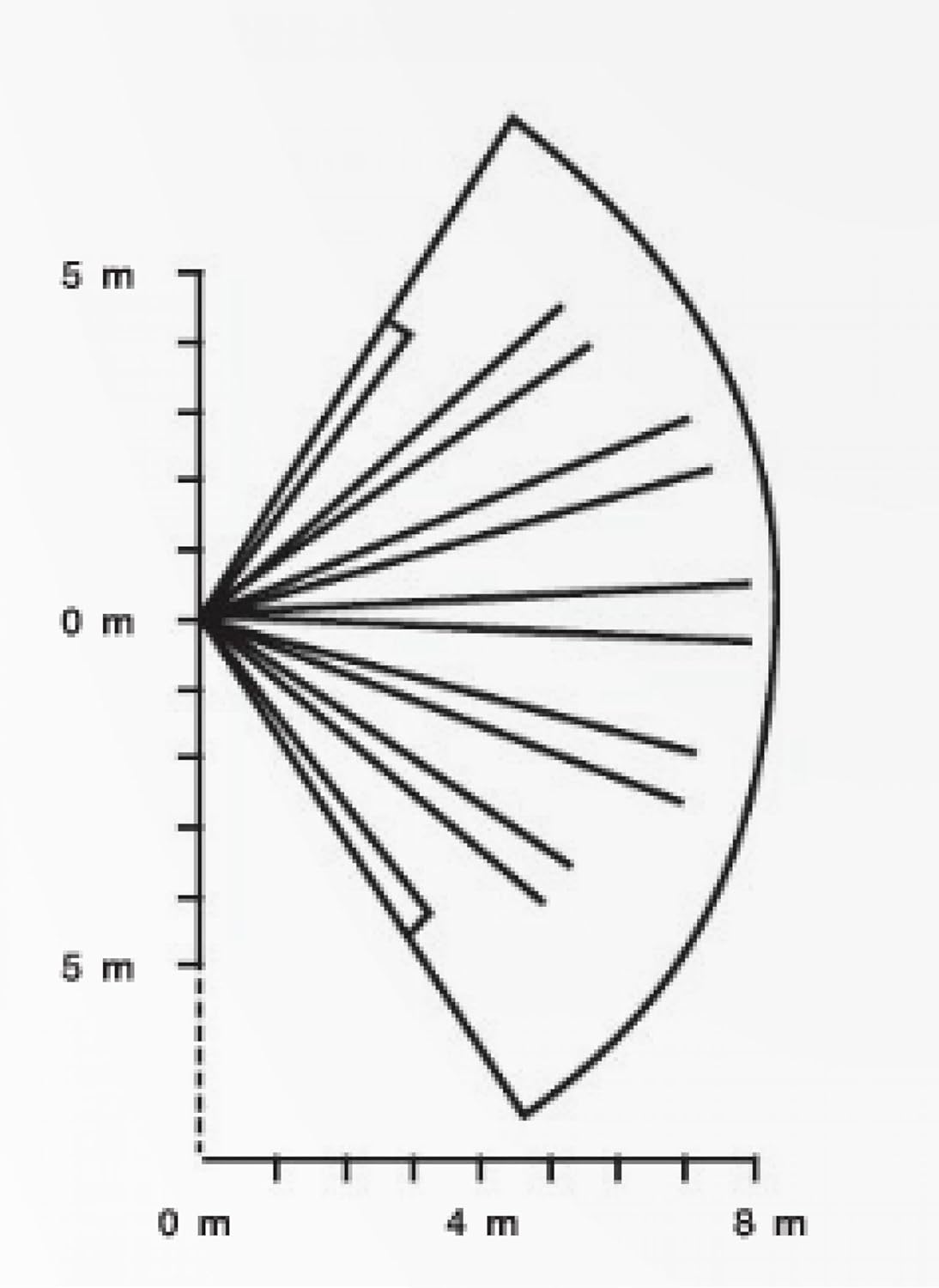

Image: Diagram illustrating the typical detection range and angle of the motion sensor, showing a maximum range of 8 meters and a wide arc of detection.

Image: The Nordlux Vejers Wall Light shown illuminated at night, demonstrating its effective lighting for outdoor spaces.

Maintenance

Cleaning

To maintain the appearance and functionality of your wall light:

• Ensure power is off before cleaning.
• Wipe the galvanized metal and glass surfaces with a soft, damp cloth.
• Do not use abrasive cleaners or solvents, as these can damage the finish.
• Regularly remove any debris or dust from the motion sensor lens to ensure optimal performance.

Bulb Replacement

When the bulb needs replacing:

• Turn off power at the circuit breaker.
• Allow the old bulb to cool completely before handling.
• Unscrew the glass shade or access panel.
• Carefully unscrew the old E27 bulb and screw in a new one (max. 60W).
• Replace the glass shade or access panel securely.

Galvanized Finish Care

The galvanized finish is designed to mature beautifully over time, developing a matte patina. This is a natural process and does not affect the product's durability or corrosion resistance.

Image: Illustration showing the transformation of galvanized steel from a shiny finish to a matte patina as it matures, highlighting its suitability for seaside environments and corrosion resistance.

Troubleshooting

Specifications

Warranty & Support

Nordlux products are designed for durability and quality. This product comes with a 15-year guarantee against corrosion, reflecting the high quality of the galvanized materials used.

For technical support, spare parts, or warranty claims, please contact your retailer or visit the official Nordlux website. Keep your proof of purchase for warranty purposes.

Nordlux is committed to providing timeless and innovative lighting solutions. For more information about Nordlux and their product range, please visit their official brand store or website.
