Eldom 10L Pressure-Resistant Hot Water Tank/Boiler

Introduction

Thank you for choosing the Eldom 72325NMP 10-liter electric hot water boiler. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read it thoroughly before use and keep it for future reference.

Safety Instructions

Always adhere to the following safety guidelines to prevent injury or damage to the appliance:

• Ensure the appliance is properly grounded.
• Do not operate the boiler if the power cord or plug is damaged.
• Installation must be performed by a qualified professional in accordance with local regulations.
• Do not block the pressure relief valve.
• Keep children and pets away from the appliance during operation.
• Disconnect power before performing any maintenance or cleaning.
• This appliance is designed for domestic use only.

Product Overview

The Eldom 72325NMP is a compact and efficient hot water tank. Its design allows for versatile installation, either above a sink or within a suspended cabinet. The front panel features an intuitive control dial for temperature adjustment and an illuminated power switch.

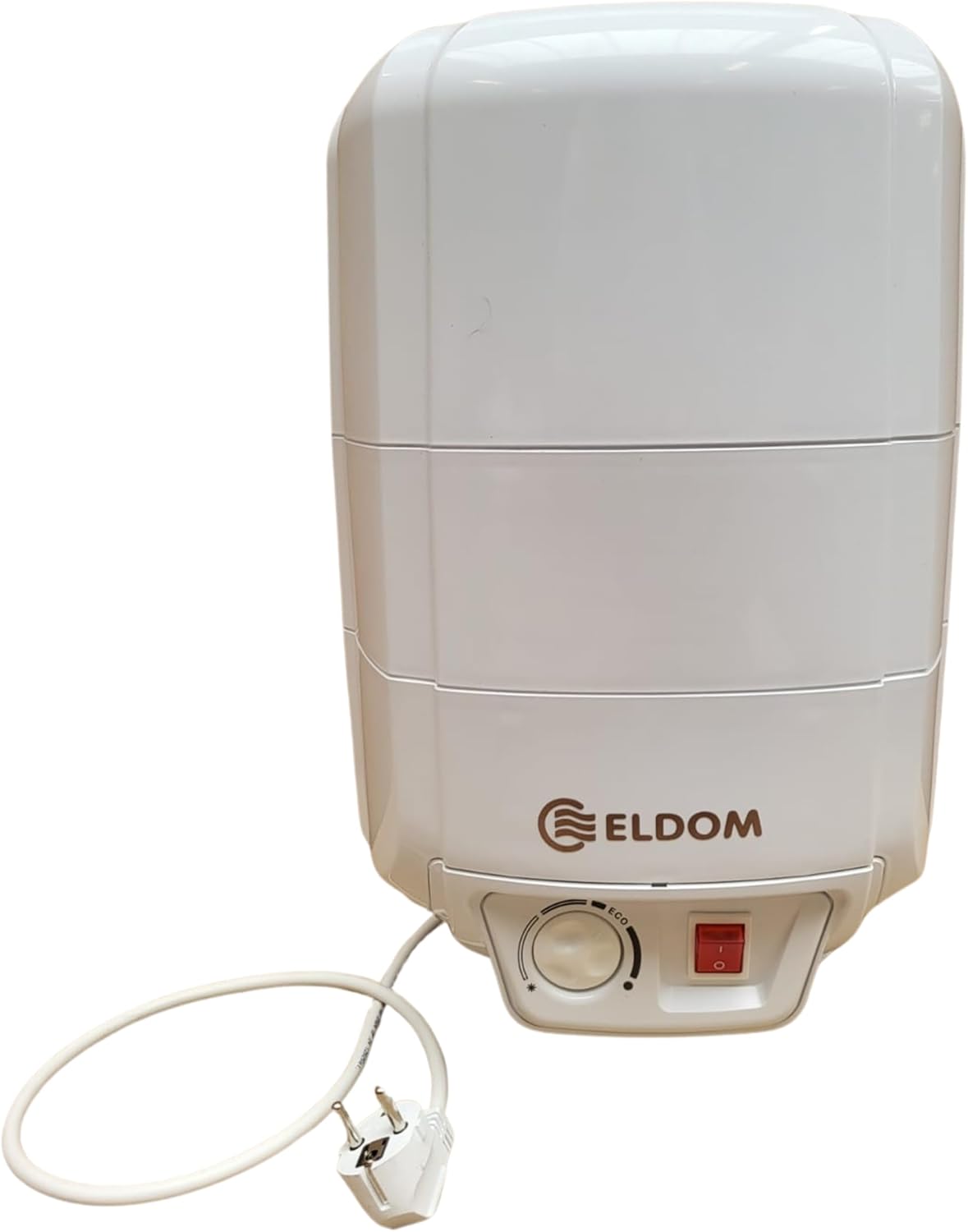

Front view of the Eldom 10L hot water tank, showing its compact white casing, the Eldom logo, and the control panel at the bottom with a temperature dial and a red power switch. A power cord with a European plug is visible.

Setup

The Eldom 72325NMP boiler is designed for pressure-resistant operation and comes with an installation package. Professional installation is recommended.

Installation Steps:

1. Mounting: Securely mount the boiler in the desired location (above sink or in cabinet) using appropriate fasteners. Ensure the mounting surface can support the weight of the boiler when full.
2. Water Connection: Connect the 1/2 inch cold water inlet and hot water outlet. The boiler includes an inlet with a combined safety valve; ensure this is correctly installed on the cold water supply line.
3. Electrical Connection: Connect the power cord to a suitable 230V electrical outlet. Ensure the outlet is properly grounded and rated for 2000W.
4. Filling the Tank: Before powering on, open a hot water tap to allow the tank to fill completely and air to escape. Close the tap once water flows steadily.

Operating Instructions

Operating your Eldom hot water boiler is straightforward:

1. Power On: Press the illuminated red power switch located on the front panel to turn on the boiler. The light will indicate that the unit is receiving power.
2. Set Temperature: Use the external mechanical thermostat dial to set your desired water temperature. The dial typically ranges from a minimum setting to a maximum, often with an 'ECO' mark for energy-efficient operation.
3. Heating Cycle: The boiler will begin heating the water to the set temperature. The heating time from 120C to 650C is approximately 19 minutes.
4. Water Delivery: Once the water reaches the set temperature, it is ready for use. Open any hot water tap to dispense heated water.
5. Power Off: To turn off the boiler, press the illuminated power switch again.

Maintenance

Regular maintenance ensures the longevity and efficiency of your Eldom hot water boiler:

• Cleaning: Periodically wipe the exterior of the boiler with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Anode Protection: The boiler features an anode for corrosion protection. It is recommended to have this anode checked and replaced by a qualified technician every 1-2 years, depending on water quality.
• Safety Valve Check: Annually check the safety valve by briefly opening it to ensure it is not blocked and can release pressure. Follow manufacturer guidelines for this procedure.
• Descaling: In areas with hard water, limescale buildup can occur. Descaling should be performed by a qualified technician when necessary to maintain heating efficiency.

Troubleshooting

If you encounter issues with your boiler, refer to the following common problems and solutions:

• No Hot Water:
  • Check if the power switch is on and the indicator light is illuminated.
  • Verify that the circuit breaker has not tripped.
  • Ensure the thermostat is set to a desired temperature.
• Water Not Hot Enough:
  • Increase the temperature setting on the thermostat.
  • Allow sufficient time for the water to heat up.
• Water Leaking:
  • Check all water connections for tightness.
  • If leaking from the safety valve, this may indicate excessive pressure; consult a professional.
• Unusual Noises:
  • Gurgling or popping sounds may indicate limescale buildup. Professional descaling may be required.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact qualified service personnel.

Specifications

Warranty and Support

The Eldom 72325NMP hot water boiler comes with a comprehensive warranty:

• Boiler Tank: 3 years warranty.
• Electrical Components: 2 years warranty.

For technical support, warranty claims, or service inquiries, please contact your retailer or the Eldom customer service department. Keep your proof of purchase for warranty validation.
