tectake® Travel Cot Instruction Manual

1. Product Overview

The tectake® travel cot is designed for ease of use and portability, making it perfect for both travel and home use. It features a practical folding mechanism for quick setup and disassembly. The cot includes a height-adjustable sleeping position, a changing mat, and a play arch with colorful plush toys to engage your child.

Key Features:

• Quick and easy setup/fold-down via folding mechanism.
• Suitable for travel or home.
• Side mesh panels with dog print for visibility and ventilation.
• Changing mat for infants - easily attached with clip mechanism.
• Baby bed insert with zipper system for an elevated sleeping position.
• Two wheels with integrated brakes for easy movement.
• Play arch with colorful plush toys to stimulate development.
• Easy-care nylon cover for simple cleaning.
• Zipper opening on the front for child entry/exit.
• Practical carry bag for compact storage and transport.

Image 1.1: The tectake travel cot in its complete assembled form, showcasing the changing mat, play arch, and side mesh panels.

2. Safety Information

Please read and understand all safety warnings before using the travel cot. Failure to follow these instructions could result in serious injury.

• WARNING: To prevent possible entanglement injuries, the play arch with hanging colorful plush toys must be removed when the child begins to crawl on all fours.
• Always ensure all locking mechanisms are securely engaged before placing a child in the cot.
• Do not use the changing mat for children weighing more than 11 kg or older than 12 months.
• The elevated sleeping position should only be used for infants who cannot yet crawl or pull themselves up.
• Never leave your child unattended in the travel cot.
• Do not add extra mattresses or padding inside the cot, as this can create a suffocation hazard.

3. Package Contents

Upon unpacking, please verify that all the following components are included:

• tectake® Travel Cot Frame
• Assembly Instructions Manual
• Practical Carry Bag
• Changing Mat
• Baby Bed Insert (for elevated sleeping position)
• Play Arch with colorful plush toys
• Sleeping Pad (base mattress)

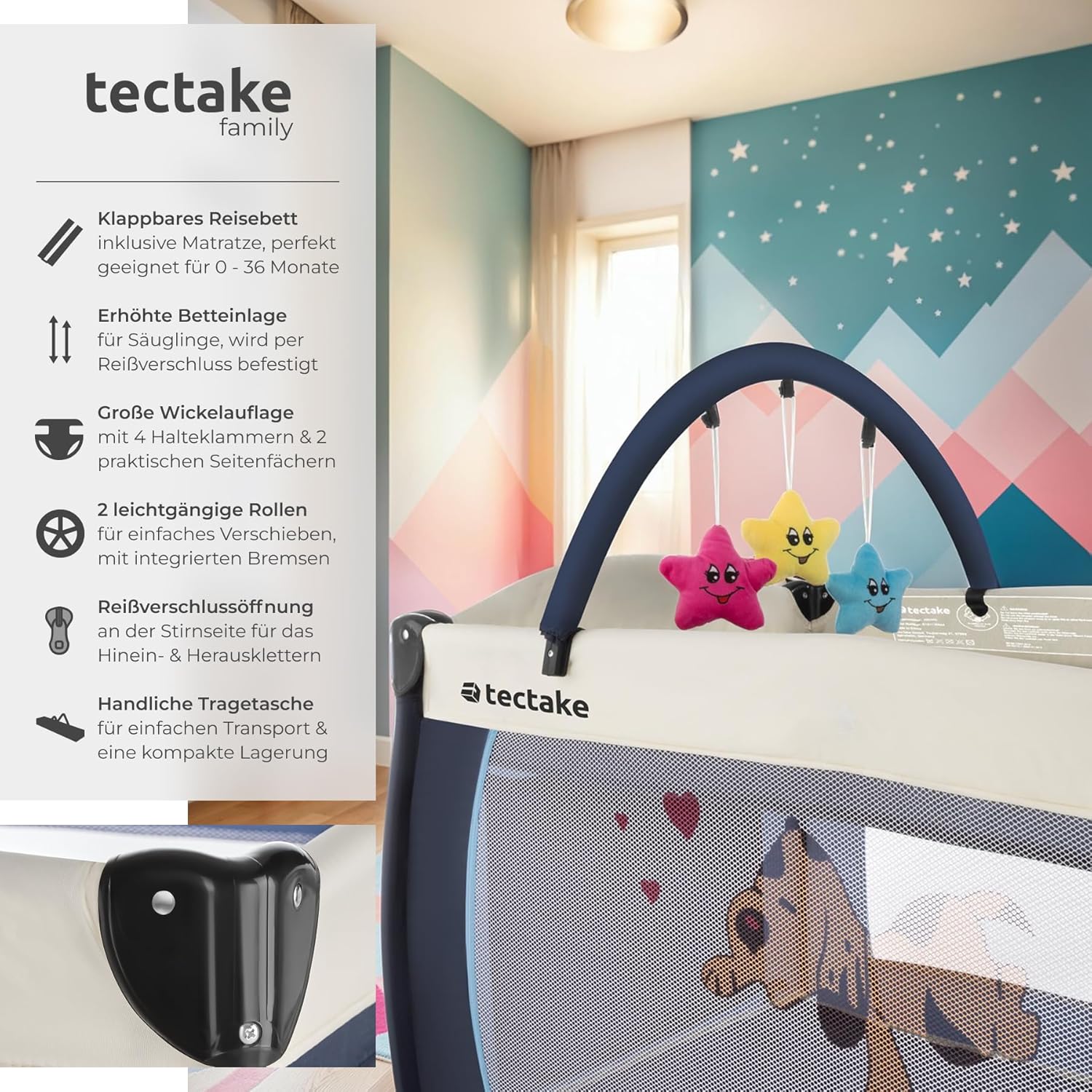

Image 3.1: Overview of key features and included accessories, highlighting the compact folded size and carry bag.

4. Setup Instructions

The tectake® travel cot is designed for quick and easy assembly. Follow these steps for proper setup:

1. Unpack the Carry Bag: Remove the folded travel cot and all accessories from the transport bag.
2. Set Up the Bed Frame: Stand the folded cot upright. Pull the four side rails upwards until they click into place and are fully locked. It is crucial that the side rails are locked before proceeding.
3. Lock the Side Rails: Ensure all four side rails are rigid and securely locked. You should hear an audible click. If they do not lock, slightly lift the center of the base and try again.
4. Push Down the Base: Once all side rails are locked, push down the center of the cot's base firmly until it lies flat and is stable.
5. Insert the Sleeping Pad: Place the provided sleeping pad (base mattress) onto the flattened base of the cot.
6. Attach Accessories (as needed):
   • Baby Bed Insert: For an elevated sleeping position for infants, attach the insert using its zipper system to the upper frame of the cot.
   • Changing Mat: Clip the changing mat securely onto the top rails of the cot.
   • Play Arch: Attach the play arch to the designated slots on the top rails.

Approximate assembly time: 5 minutes.

Image 4.1: Illustration of the height-adjustable sleeping position, allowing for an elevated level for infants.

5. Operating Instructions

Adjusting Sleeping Height:

The tectake® travel cot offers a height-adjustable sleeping position. For newborns and younger infants, the baby bed insert can be easily installed using its zipper system to provide an elevated sleeping surface. This reduces the need to bend down excessively. As your child grows and begins to crawl or pull themselves up, remove the insert to utilize the lower, full depth of the cot for safety.

Using the Changing Mat:

The included changing mat can be attached to the top rails of the cot using its clip mechanism. Ensure it is securely fastened before placing your child on it. This feature provides a convenient and stable surface for diaper changes, especially when traveling. Remember, the changing mat is suitable for infants up to 12 months and 11 kg.

Image 5.1: The changing mat securely attached to the cot, demonstrating its practical use and the breathable mesh sides.

Mobility:

The cot is equipped with two wheels on one side, featuring integrated brakes. To move the cot, simply lift the non-wheeled side slightly and roll it to your desired location. Engage the brakes by pressing down on the brake levers to secure the cot in place and prevent accidental movement.

Child Entry/Exit:

For older toddlers who are able to crawl or walk, the cot features a convenient zipper opening on one of the front mesh panels. This allows your child to independently enter and exit the cot, transforming it into a safe play area. Always ensure the zipper is closed when the cot is used for sleeping or when unsupervised.

6. Maintenance

To ensure the longevity and hygiene of your tectake® travel cot, follow these simple maintenance guidelines:

• Cleaning the Fabric: The nylon cover is easy to clean. Wipe surfaces with a damp cloth and a mild, non-abrasive soap. Do not use harsh chemicals or bleach, as these can damage the fabric and pose a risk to your child. Allow to air dry completely before folding or storing.
• Cleaning the Frame: Wipe the metal and plastic components of the frame with a damp cloth.
• Regular Inspection: Periodically check all parts for signs of wear, tear, or damage. Pay close attention to the locking mechanisms, fabric integrity, and the condition of the wheels and brakes.
• Storage: When not in use, fold the cot compactly and store it in its provided carry bag in a dry, cool place away from direct sunlight.

Image 6.1: Detailed views of the changing mat's storage pockets, the side storage pocket, the play arch attachment, and the rounded plastic corners for enhanced stability and safety.

7. Troubleshooting

If you encounter any issues with your tectake® travel cot, please refer to the following common solutions:

• Cot not locking during setup: Ensure all side rails are fully pulled up and locked into place *before* pushing down the center base. If the base is pushed down first, the side rails will not lock properly. Lift the base slightly and try locking the rails again.
• Difficulty folding the cot: Ensure the center base is pulled up completely before attempting to release the side rail locking mechanisms. The side rails will not release if there is tension from the base.
• Wheels not rolling smoothly: Check for any debris or obstructions around the wheels. Ensure the brakes are fully disengaged.

For any other issues or if the problem persists, please contact tectake customer support for assistance.

8. Specifications

Detailed technical specifications for the tectake® Travel Cot:

Image 8.1: Detailed diagram illustrating the dimensions and technical data of the travel cot.

9. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the documentation provided at the time of purchase. You may also visit the official tectake website or contact their customer service department directly. Please have your model number (800032) and purchase details ready when contacting support.
