Varta Silver Dynamic D21 Car Battery Instruction Manual

Introduction

Varta Silver Dynamic batteries are engineered for vehicles with high energy demands. This reliable battery offers superior cold start power, up to 20% higher than standard batteries, making it ideal for vehicles equipped with numerous electrical consumers. This premium product incorporates Power Frame technology, which contributes to an extended lifespan and enhanced performance.

Safety Information

Important Safety Warnings

Corrosive: Car batteries contain corrosive substances (sulfuric acid). Always wear appropriate personal protective equipment, including eye protection and chemical-resistant gloves, when handling the battery. Avoid contact with skin and eyes. In case of contact, rinse immediately with plenty of water for at least 15 minutes and seek medical attention.

Explosive Gases: Batteries produce explosive hydrogen gas, especially during charging. Ensure adequate ventilation when working with batteries. Keep sparks, open flames, and lit cigarettes away from the battery. Do not short-circuit the battery terminals, as this can cause severe burns or an explosion.

Electrical Shock: The battery provides high voltage and current. Avoid touching both terminals simultaneously with bare hands or metal objects. When disconnecting, always remove the negative (-) terminal first. When installing, always connect the negative (-) terminal last.

Weight: This battery is heavy (approximately 14.8 kg). Use proper lifting techniques or seek assistance to prevent personal injury during handling and installation.

Product Overview

Key Features

• Superior cold start power, up to 20% higher than standard batteries.
• Features Power Frame technology for enhanced performance and extended lifespan.
• Ideal for vehicles with extensive electronic equipment.
• Optimized for diesel engines.

Product Dimensions and Weight

• Dimensions (L x W x H): 242 x 175 x 175 mm
• Weight: 14.8 kg

Front view of the Varta Silver Dynamic D21 car battery, showing the Varta logo, 'Dynamic SLI', and specifications like D21 61Ah 12V 600A.

Setup and Installation

Before Installation

• Ensure the vehicle's ignition is off and all electrical consumers (lights, radio, etc.) are switched off.
• Wear appropriate safety gear, including eye protection and gloves.
• Locate the existing battery in your vehicle. Consult your vehicle's owner's manual for specific instructions.

Removing the Old Battery

1. Using an appropriate wrench, disconnect the negative (-) terminal first to prevent accidental short circuits.
2. Then, disconnect the positive (+) terminal.
3. Remove any battery clamps or hold-downs securing the battery in place.
4. Carefully lift and remove the old battery. Be aware of its weight and handle with care.

Installing the New Varta Silver Dynamic D21 Battery

1. Place the new Varta Silver Dynamic D21 battery securely in the battery tray. Ensure it is stable and properly aligned.
2. Secure the battery with the hold-down clamps or straps to prevent movement during vehicle operation.
3. Connect the positive (+) terminal first. Tighten the connection firmly but do not overtighten.
4. Connect the negative (-) terminal last. Tighten the connection firmly.
5. Apply a thin layer of anti-corrosion grease to the terminals to prevent corrosion and ensure good electrical contact.
6. Ensure all connections are secure and the battery is stable before closing the hood.

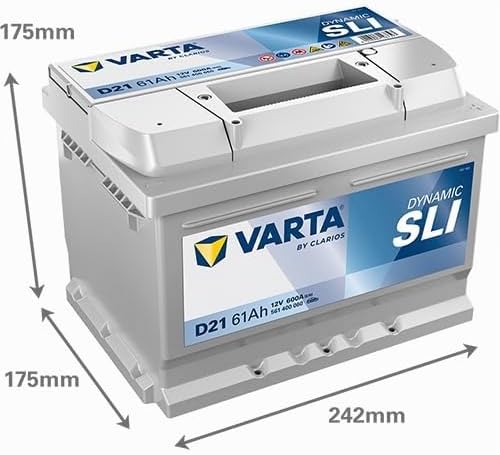

Side view of the Varta Silver Dynamic D21 car battery with dimensions 242mm, 175mm, and 175mm indicated, crucial for fitment.

Operating Instructions

Initial Use

The Varta Silver Dynamic D21 battery is typically supplied charged and ready for immediate use. After installation, start your vehicle to confirm proper operation. The vehicle's charging system will maintain the battery's charge during normal driving.

Normal Operation

The battery provides power for starting the engine and operating the vehicle's electrical systems when the engine is off or at low RPMs. To prolong battery life, avoid prolonged use of electrical accessories (e.g., headlights, radio, interior lights) when the engine is not running, as this can lead to deep discharge.

Maintenance

Regular Checks

• Terminal Cleanliness: Periodically inspect battery terminals for signs of corrosion (white or bluish powdery substance). If corrosion is present, disconnect the battery (negative first, then positive) and clean the terminals and cable clamps with a wire brush and a mixture of baking soda and water. Rinse with clean water and dry thoroughly before reconnecting.
• Battery Housing: Keep the battery housing clean and dry. Remove any dirt, dust, or debris that may accumulate on top of the battery, as this can lead to self-discharge.
• Secure Mounting: Ensure the battery remains securely mounted in its tray to prevent vibration damage, which can shorten battery life.

Charging

If the vehicle is not used for extended periods, or if the battery charge is low, use a suitable automotive battery charger. Always follow the charger manufacturer's instructions. Do not overcharge the battery, as this can cause damage.

Storage

If storing the battery for a long period, ensure it is fully charged and store it in a cool, dry place away from direct sunlight and extreme temperatures. Periodically check the charge level and recharge if necessary to prevent deep discharge.

Troubleshooting

Engine Cranks Slowly or Not at All

• Check Battery Terminals: Ensure terminals are clean, free of corrosion, and tightly connected. Loose or corroded connections can impede current flow.
• Battery Charge: The battery may be discharged. Try jump-starting the vehicle or charging the battery with an external charger.
• Alternator/Charging System: If the battery repeatedly discharges, the vehicle's charging system (alternator) may be faulty. Consult a qualified mechanic for inspection.

Lights Dim or Electrical Components Malfunction

• Low Battery Voltage: This indicates a low battery charge. Charge the battery or have the vehicle's charging system inspected.
• Loose Connections: Check battery terminals and other electrical connections for tightness.

Battery Leaking

If you observe any leakage from the battery, it may indicate damage or overcharging. Disconnect the battery immediately (negative first) while wearing protective gear and seek professional assistance. Do not touch the leaked fluid without appropriate protection.

Specifications

Top view of the Varta Silver Dynamic D21 car battery, showing the terminal layout and various safety symbols.

Warranty and Support

Manufacturer's Warranty

This Varta Silver Dynamic D21 battery comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for any warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please contact Varta customer service or visit the official Varta brand store for more information.
