BAHCO Air Disc Grinder BP823 Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your BAHCO BP823 Air Disc Grinder. The BP823 is a lightweight air-powered disc grinder featuring a safety trigger for secure operation and a swivel mechanism at the coupler connection to prevent hose twisting during use.

Please read this manual thoroughly before using the tool and keep it for future reference.

2. Safety Information

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or property damage.

• Personal Protective Equipment (PPE): Always wear safety glasses or a face shield, hearing protection, and appropriate gloves. A dust mask is recommended when grinding materials that produce fine particles.
• Work Area: Ensure your work area is clean, well-lit, and free from clutter. Keep bystanders, especially children, away from the operating area.
• Air Supply: Use a clean, dry, regulated air supply. Do not exceed the maximum operating pressure specified for the tool.
• Tool Inspection: Before each use, inspect the grinder for any damage, loose parts, or worn accessories. Do not use a damaged tool.
• Disc Selection: Use only grinding discs that are rated for the speed of the grinder and are appropriate for the material being worked on. Ensure the disc is securely mounted.
• Secure Workpiece: Always secure the workpiece firmly to prevent movement during grinding.
• Proper Grip: Maintain a firm grip on the tool with both hands during operation.
• Avoid Overreaching: Maintain proper footing and balance at all times.
• Disconnect Air Supply: Always disconnect the air supply before changing accessories, performing maintenance, or when the tool is not in use.
• Sparks and Debris: Be aware that grinding produces sparks and flying debris. Ensure no flammable materials are nearby.

Image: A worker demonstrating safe operation of a disc grinder, wearing appropriate personal protective equipment including safety glasses and hearing protection, while sparks fly from the workpiece.

3. Setup

1. Unpacking: Carefully remove the grinder and all accessories from the packaging. Inspect for any shipping damage.
2. Air Supply Connection:
   • Ensure your air compressor is capable of providing the required air pressure and volume (refer to specifications).
   • Connect a suitable air hose (minimum 10mm inner diameter) to the grinder's air inlet (PT1/4). The swivel mechanism on the coupler connection helps prevent hose twisting.
   • Install an in-line air filter/lubricator unit close to the tool to ensure clean, lubricated air.
3. Disc Installation:
   • Always disconnect the air supply before installing or changing discs.
   • Select a 5-inch grinding disc appropriate for your application and rated for at least 10,000 RPM.
   • Follow the disc manufacturer's instructions for mounting. Typically, this involves placing the disc onto the spindle and securing it with the provided flange and nut, using a wrench to tighten firmly.
   • Ensure the disc guard is properly positioned to deflect sparks and debris away from the operator.

4. Operating Instructions

1. Pre-Operation Check:
   • Verify all safety precautions are observed.
   • Ensure the air hose is securely connected and free from kinks or damage.
   • Confirm the grinding disc is correctly installed and tightened.
2. Starting the Grinder:
   • Connect the air supply.
   • Hold the grinder firmly with both hands.
   • Engage the safety trigger mechanism and press the trigger to start the grinder.
   • Allow the disc to reach full speed before contacting the workpiece.
3. Grinding:
   • Apply light, even pressure to the workpiece. Avoid excessive force, which can reduce efficiency and damage the disc or tool.
   • Move the grinder smoothly across the surface.
   • Maintain a safe distance from the rotating disc and direct sparks away from yourself and others.
4. Stopping the Grinder:
   • Release the trigger. The disc will slow down and stop.
   • Once the disc has completely stopped, disconnect the air supply.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your BAHCO BP823 Air Disc Grinder. Always disconnect the air supply before performing any maintenance.

• Lubrication: If an in-line lubricator is not used, add a few drops of pneumatic tool oil into the air inlet before and after each use.
• Cleaning: Keep the tool clean and free from dust and debris. Use compressed air to blow out any accumulated dust from the air vents.
• Disc Replacement: Replace grinding discs when they become worn, chipped, or damaged. Follow the disc installation steps outlined in the "Setup" section.
• Air Filter: Regularly check and clean or replace the air filter in your air supply system to ensure clean air reaches the tool.
• Hose Inspection: Inspect the air hose for wear, cuts, or leaks. Replace damaged hoses immediately.

6. Troubleshooting

If you encounter issues with your BAHCO BP823 Air Disc Grinder, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, contact BAHCO customer support or a qualified service technician.

7. Specifications

The following table details the technical specifications for the BAHCO BP823 Air Disc Grinder:

Image: A detailed specification table for various air grinders, including the BP823 model, showing parameters like air consumption, speed, noise level, vibration, length, and weight.

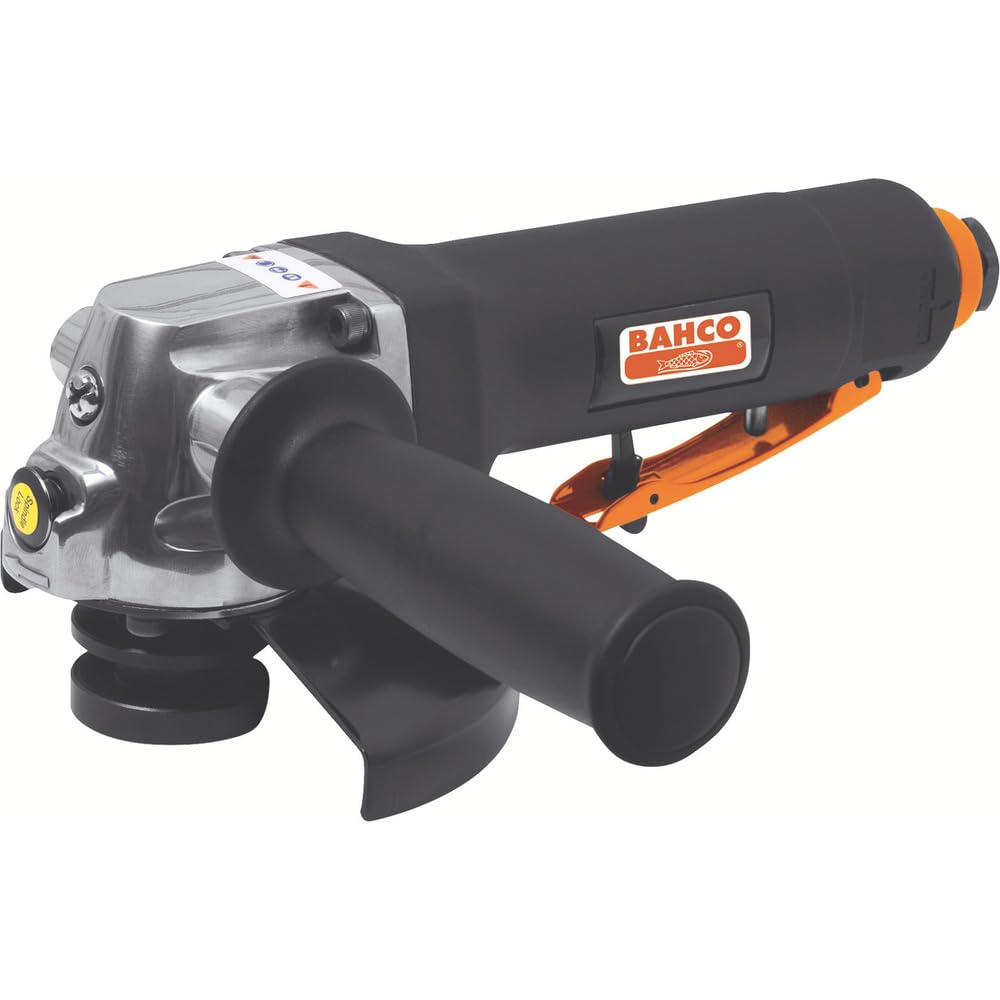

Image: The BAHCO BP823 Air Disc Grinder, showcasing its design and compact form factor.

8. Warranty and Support

For warranty information, please refer to the documentation provided with your purchase or contact your retailer. BAHCO products are designed for durability and performance, and specific warranty terms may vary by region and point of purchase.

For technical support, spare parts, or service inquiries, please contact your local BAHCO distributor or visit the official BAHCO website for contact information.
