Glem GMI203IX Integrated Microwave Oven

1. Important Safety Instructions

Please read these instructions carefully before installing and operating your microwave oven. Keep this manual for future reference.

• Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
• Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
• Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
• Ensure proper ventilation around the appliance.
• This appliance is equipped with a Child Lock System. Keep children away from the appliance during operation and ensure the child lock is activated when not in use.
• Do not heat liquids or other foods in sealed containers since they are liable to explode.
• Only use utensils that are suitable for use in microwave ovens.

2. Product Overview

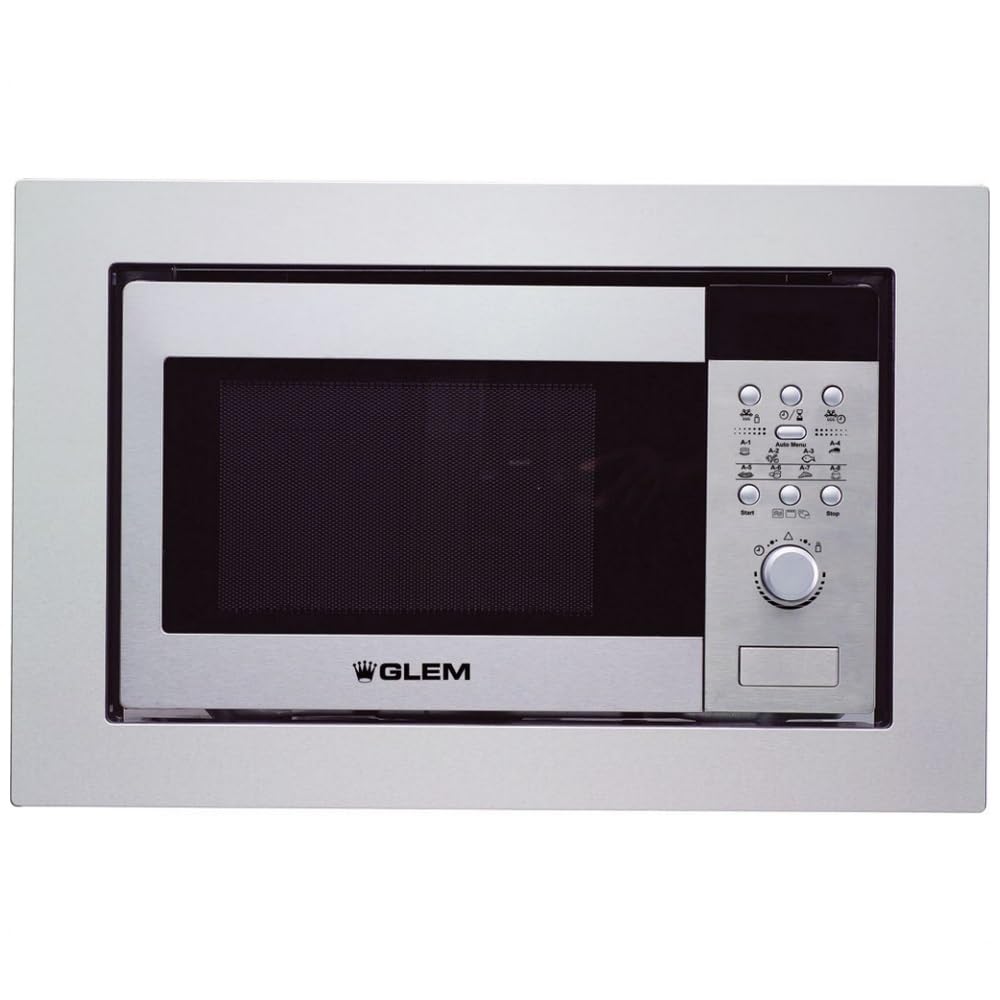

The Glem GMI203IX is an integrated 20-liter microwave oven designed for domestic use. It features an 800W power output and a sleek stainless steel finish. The control panel includes buttons and a rotary knob for easy operation, along with an integrated display and clock.

• Capacity: 20 Liters
• Power Output: 800 Watts
• Material: Stainless Steel
• Control Type: Buttons, Rotary Knob
• Special Features: Integrated Clock, Interior Light, Child Lock System, Built-in Display

3. Installation Instructions

This microwave oven is designed for integrated installation into a kitchen cabinet. Refer to the diagram below for precise dimensions and clearances.

Figure 1: Installation dimensions for Glem GMI203IX microwave oven. This diagram illustrates the required cabinet opening sizes and clearances for both high cabinet and column cabinet installations. Dimensions are provided in millimeters.

3.1 Cabinet Dimensions

• Appliance Dimensions (W x D x H): 595 mm x 320 mm x 385 mm (excluding front panel depth).
• Minimum Cabinet Recess Width: 560 mm.
• Minimum Cabinet Recess Depth:
  • For High Cabinet Installation (*): 340 mm.
  • For Column Cabinet Installation (**): 500 mm.
• Minimum Cabinet Recess Height:
  • For Niche 355: 355 mm.
  • For Niche 365: 365 mm.

3.2 Overhang and Clearances

• Top Overhang:
  • For Niche 355: 17 mm.
  • For Niche 365: 7 mm.
• Bottom Overhang: 13 mm.
• Side Overhang (from cabinet wall): 18 mm to 45 mm, depending on the cabinet type and installation method.

Ensure adequate ventilation space is maintained around the appliance as indicated in the diagram. Connect the appliance to a grounded electrical outlet according to local regulations.

4. Initial Setup

After installation, perform the following initial setup steps:

1. Power Connection: Plug the microwave into a suitable grounded power outlet (230 Volts).
2. Setting the Clock: Upon first power-on or after a power outage, the display will flash. Use the rotary knob or specific buttons (refer to the control panel layout) to set the current time. Press the confirmation button to save.
3. Turntable Installation: Place the turntable ring and glass tray securely inside the oven cavity.

5. Operating Instructions

The GMI203IX offers various functions for heating and cooking.

5.1 Basic Microwave Cooking

1. Place food in a microwave-safe container on the glass tray.
2. Close the oven door securely.
3. Use the rotary knob or power level buttons to select the desired power level (8 levels available).
4. Use the timer function to set the cooking time. The manual timer function allows precise control.
5. Press the Start button to begin cooking.

5.2 Child Lock Activation/Deactivation

To activate the child lock, press and hold the designated child lock button (or a combination of buttons, refer to the control panel) for a few seconds until a lock indicator appears on the display. To deactivate, repeat the process.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your microwave oven.

• Interior Cleaning: Wipe the oven cavity with a damp cloth after each use. For stubborn food splatters, place a bowl of water with lemon slices inside and microwave for 5-10 minutes to loosen residue, then wipe clean.
• Exterior Cleaning: Clean the stainless steel exterior with a soft, damp cloth and a mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the surface.
• Door Seals: Regularly inspect and clean the door seals and sealing surfaces to ensure proper operation and prevent microwave leakage.
• Turntable: The glass tray and turntable ring can be removed and washed in warm soapy water or in a dishwasher.

7. Troubleshooting

If you encounter issues with your Glem GMI203IX microwave, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Glem customer support.

8. Specifications

9. Warranty and Support

For warranty information, service, or technical support, please refer to the warranty card included with your product or visit the official Glem website. Keep your proof of purchase for any warranty claims.
