Standard Motor Products SC326 Transmission Speed Sensor User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Standard Motor Products SC326 Transmission Speed Sensor. Please read these instructions carefully before proceeding with any procedures to ensure correct usage and optimal performance.

2. Product Overview

The Standard Motor Products SC326 is a vehicle speed sensor designed to accurately measure the rotational speed of the transmission. This data is crucial for various vehicle systems, including the speedometer, cruise control, and transmission shift points. The sensor features a durable metal construction with a machined exterior, ensuring reliability and longevity in automotive environments.

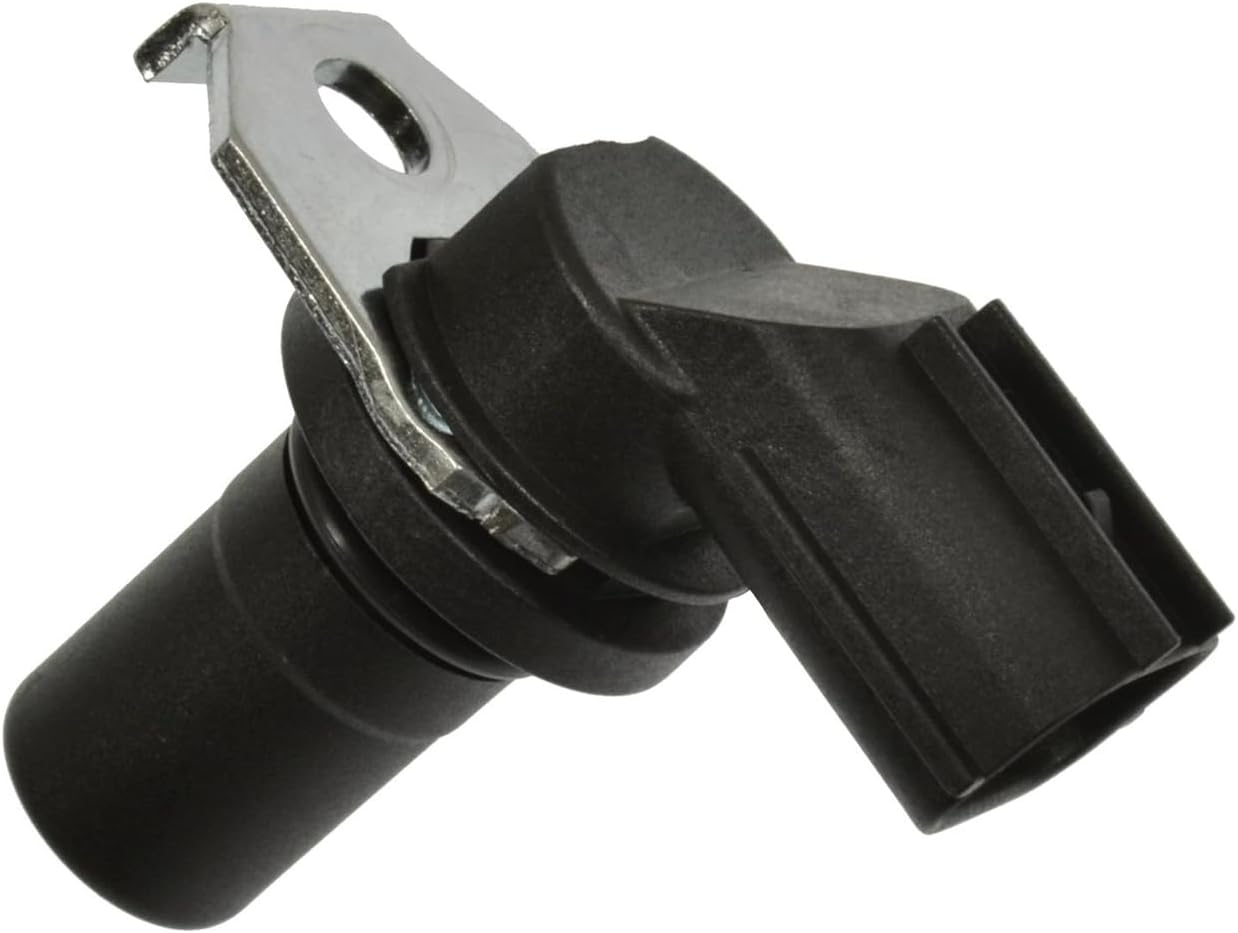

Figure 1: Standard Motor Products SC326 Transmission Speed Sensor. This image displays the sensor unit, featuring its black plastic body, metal mounting bracket, and electrical connector.

3. Setup and Installation

Installation of the SC326 Transmission Speed Sensor typically involves replacing an existing sensor. Due to the complexity of automotive systems, professional installation by a qualified technician is recommended. If performing installation yourself, consult your vehicle's specific service manual for detailed instructions and safety precautions.

General Installation Steps:

1. Safety First: Disconnect the vehicle's battery before beginning any work to prevent electrical shorts or injury.
2. Locate Sensor: Identify the location of the existing transmission speed sensor on your vehicle. This is typically on the transmission housing.
3. Remove Old Sensor: Disconnect the electrical connector from the old sensor. Carefully unbolt or unclip the old sensor from its mounting point.
4. Inspect Area: Clean the mounting surface and inspect for any debris or damage.
5. Install New Sensor: Insert the new SC326 sensor into the mounting hole. Secure it with the appropriate bolts or clips, ensuring a snug fit.
6. Connect Electrical: Reconnect the electrical connector to the new sensor, ensuring it clicks securely into place.
7. Reconnect Battery: Reconnect the vehicle's battery.
8. Test Functionality: Start the vehicle and check for proper operation of the speedometer and other related systems. Clear any diagnostic trouble codes (DTCs) if necessary.

Note: Always refer to your vehicle's specific repair manual for torque specifications and precise installation procedures.

4. Operating Instructions

The Standard Motor Products SC326 Transmission Speed Sensor operates passively once installed. It continuously monitors the transmission's rotational speed and sends electrical signals to the vehicle's Engine Control Unit (ECU) or Transmission Control Unit (TCU). No user interaction is required for its operation. Ensure the sensor is correctly installed and its electrical connection is secure for accurate data transmission.

5. Maintenance

The SC326 Transmission Speed Sensor is designed for long-term reliability with minimal maintenance. Regular inspection during routine vehicle servicing is recommended.

Maintenance Guidelines:

• Visual Inspection: Periodically check the sensor and its wiring for any signs of physical damage, corrosion, or loose connections.
• Cleaning: If accessible, gently clean any accumulated dirt or debris from the sensor's exterior using a soft cloth. Avoid harsh chemicals or abrasive materials.
• Replacement: If the sensor is suspected of malfunctioning, it should be replaced. Do not attempt to repair a faulty sensor.

6. Troubleshooting

If you experience issues related to vehicle speed readings or transmission performance, the speed sensor may be a contributing factor. Common symptoms of a faulty transmission speed sensor include:

• Inaccurate or erratic speedometer readings.
• Malfunctioning cruise control.
• Harsh or incorrect transmission shifting.
• Illumination of the Check Engine Light (CEL) with related diagnostic trouble codes (DTCs).

If any of these symptoms occur, it is recommended to have the vehicle diagnosed by a professional technician. They can use specialized diagnostic tools to confirm if the SC326 sensor is the cause of the problem and recommend appropriate action.

7. Specifications

8. Warranty and Support

For information regarding the warranty coverage for your Standard Motor Products SC326 Transmission Speed Sensor, please refer to the documentation provided with your purchase or contact Standard Motor Products directly through their official website or customer service channels. For technical support or assistance with product-related inquiries, please reach out to Standard Motor Products customer service.
