Introduction
This manual provides instructions for the installation, operation, and maintenance of your FABER TCH04 SS16A 741 under-cabinet cooker hood. Please read this manual carefully before use and retain it for future reference to ensure safe and efficient operation.
Image description: A front-side view of the FABER TCH04 SS16A 741 under-cabinet cooker hood, showing its silver and black finish, control buttons, and the grease filter visible underneath.
Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, observe the following:
- Read all instructions thoroughly before using the appliance.
- Ensure the electrical supply voltage and frequency match the specifications on the rating plate.
- Do not operate the hood without the grease filters properly installed.
- Regular cleaning of grease filters is essential to prevent grease buildup and maintain performance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure they do not play with the appliance.
- When the cooker hood is used simultaneously with other appliances burning gas or other fuels, the room must be adequately ventilated to prevent backflow of combustion gases.
- The air extracted by the hood must not be discharged into a flue that is used for exhausting fumes from other appliances burning gas or other fuels.
- All local regulations concerning the discharge of air must be strictly fulfilled.
Package Contents
Verify that all components are present upon unpacking:
- FABER TCH04 SS16A 741 Cooker Hood
- Integrated LED Lights (pre-installed)
- Metal Anti-Grease Filter (pre-installed)
- Instruction Manual
- Mounting hardware (screws, wall plugs)
Note: Active carbon filters for recirculating mode are not included and must be purchased separately if this mode is desired.
Installation Guide
The FABER TCH04 SS16A 741 cooker hood can be installed in two configurations: ducted (external extraction) or recirculating (internal filtration). Choose the appropriate method for your kitchen setup.
Planning the Installation
- Ensure adequate clearance between the cooking surface and the bottom of the hood. Consult local building codes for minimum height requirements.
- Verify that a suitable electrical outlet is accessible within the installation area.
- For ducted mode, plan the most direct and shortest route for the exhaust duct to an external vent.
Dimensions and Mounting

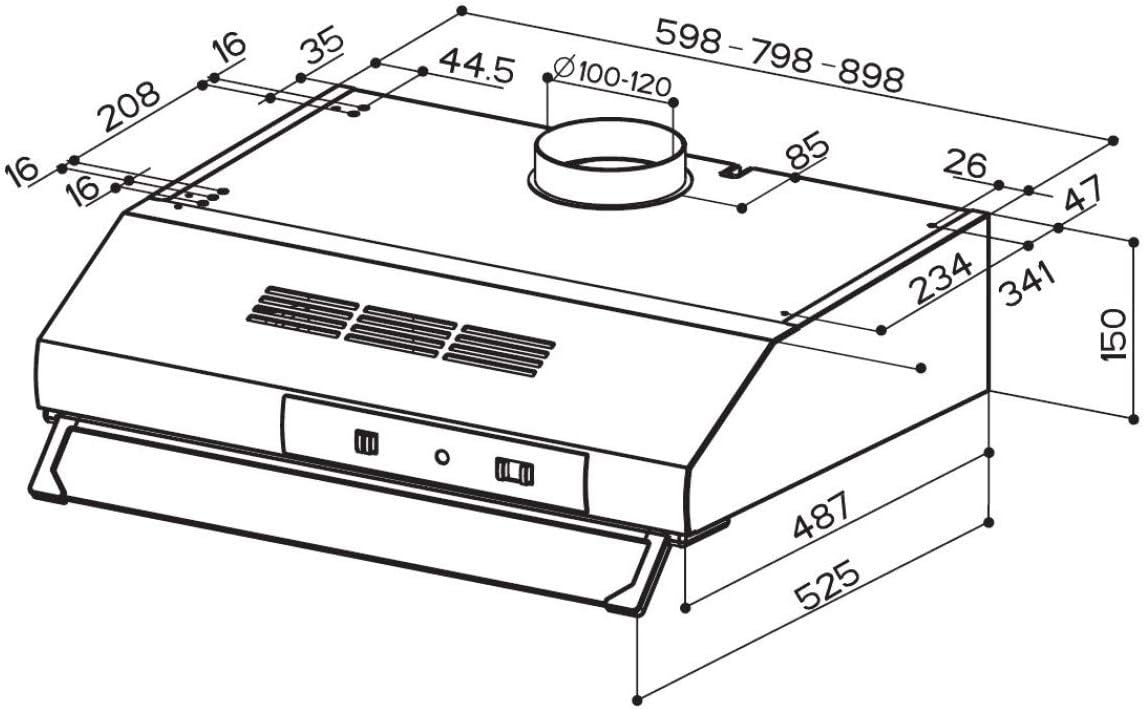

Image description: A technical drawing illustrating the dimensions of the FABER TCH04 SS16A 741 cooker hood in centimeters, including width (60 cm), depth (48.7 cm), and height (15 cm), along with mounting points and ducting diameter.
The hood measures approximately 60 cm in width, 48.7 cm in depth, and 15 cm in height. Refer to the provided dimension diagram for precise measurements and recommended mounting points.
Ducted (Aspirating) Mode Installation
Image description: A simplified diagram showing air being drawn into the hood and expelled upwards through a duct, representing the ducted extraction mode.
- Securely mount the hood under the cabinet using the provided hardware. Ensure it is level and firmly attached.
- Connect a suitable exhaust duct (not included, recommended diameter 100-120mm) to the outlet on top of the hood.
- Route the duct to an external vent. Minimize bends and length to optimize airflow.
- Connect the hood to the electrical supply according to local wiring regulations.
Recirculating (Filtering) Mode Installation
Image description: A simplified diagram showing air being drawn into the hood, filtered, and then recirculated back into the room, representing the filtering mode.
- Securely mount the hood under the cabinet.
- Install active carbon filters (not included) into the hood. Refer to the specific instructions provided with the carbon filters for correct placement.
- Ensure the air outlet on top of the hood is not obstructed, allowing filtered air to return to the kitchen.
- Connect the hood to the electrical supply.
Operation
Your cooker hood features simple push-button controls for fan speed and lighting.
Image description: A close-up view of the control panel on the FABER TCH04 SS16A 741 cooker hood, showing the light switch and the three-speed fan control buttons.
Fan Speed Control
- The hood offers three fan speed settings to suit various cooking needs.
- Press the corresponding button (labeled 1, 2, or 3) to select the desired extraction power.
- Speed 1: Ideal for light cooking, simmering, or minimal steam.
- Speed 2: Suitable for general cooking tasks.
- Speed 3: Recommended for heavy cooking, frying, or when strong odors are present.
- To turn off the fan, press the '0' button or the currently active speed button again.
Lighting Control
- Press the light button (indicated by a light bulb icon) to toggle the LED lights on or off.
- The LED lights provide clear illumination for your cooking area.
Maintenance
Regular care and maintenance are crucial for ensuring optimal performance, efficiency, and longevity of your cooker hood.
Cleaning the Exterior
- Clean the exterior surfaces with a soft cloth and a mild, non-abrasive detergent.
- Avoid using abrasive cleaners, steel wool, or harsh chemical solvents, as these can damage the finish.
- For stainless steel surfaces, use a specialized stainless steel cleaner and wipe in the direction of the grain to prevent streaks.
Metal Anti-Grease Filter Cleaning
Image description: A pair of rectangular metal anti-grease filters, designed to capture grease from cooking vapors.
- The metal anti-grease filters should be cleaned approximately once a month, or more frequently depending on cooking habits.
- To remove, locate the release latches on the filters and carefully pull them down.
- The filters can be washed by hand in hot soapy water or in a dishwasher on a low-temperature cycle.
- Ensure the filters are completely dry before re-installing them into the hood.
Active Carbon Filter Replacement (for Recirculating Mode)
Image description: Two circular active carbon filters, used in recirculating cooker hoods to remove odors from the air.
- Active carbon filters are used exclusively in recirculating mode to absorb cooking odors. They cannot be washed and must be replaced.
- Replace active carbon filters approximately every 3 months, or more frequently with heavy use.
- Use only original FABER replacement filters to ensure proper performance and compatibility.
- Refer to the specific instructions provided with the carbon filters for installation.
LED Light Replacement
- The integrated LED lights are designed for long-lasting performance and typically do not require frequent replacement.
- If a light needs replacement, it is recommended to contact qualified service personnel to avoid damage to the appliance.
Troubleshooting
This section addresses common issues you might encounter with your cooker hood. If the problem persists after attempting these solutions, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on | No power supply | Check power connection, ensure the plug is fully inserted, and verify the circuit breaker has not tripped. |
| Low suction power | Clogged grease filters | Clean or replace the metal anti-grease filters as described in the Maintenance section. |
| Low suction power | Clogged carbon filters (recirculating mode) | Replace the active carbon filters. |
| Low suction power | Obstruction in ducting (ducted mode) | Inspect the exhaust ducting for blockages, kinks, or excessive length. |
| Excessive noise | Loose components or mounting | Check for loose screws or parts within the hood or ensure it is securely mounted. |
| Excessive noise | Obstruction in fan | Turn off power and carefully inspect the fan for any foreign objects. |
| Lights not working | Faulty LED or connection | Contact qualified service personnel for inspection and replacement. |
If problems persist after attempting these solutions, please contact FABER customer support for further assistance.
Technical Specifications
Detailed technical information for the FABER TCH04 SS16A 741 cooker hood:
| Feature | Detail |
|---|---|
| Brand | FABER |
| Model Number | 110.0156.678 |
| Type | Under-Cabinet Cooker Hood |
| Dimensions (W x D x H) | 60 x 48.7 x 15 cm |
| Weight | 5.5 kg (12.13 lbs) |
| Material | Metal |
| Control Type | Push Button |
| Fan Speeds | 3 |
| Maximum Extraction Capacity | 295 m³/h |
| Noise Level (Min/Max) | 56 dB / 67 dB |
| Lighting | LED, 3W |
| Energy Efficiency Class | D |
| Annual Energy Consumption | 56.8 kWh/annum |
| Grease Filtering Efficiency | D (65.1%) |
| Fluid Dynamic Efficiency | F (5.1) |
| Lighting Efficiency | E (11.0 lux/W) |
| Global Trade Identification Number (GTIN) | 08015139029992 |
| Country of Origin | Italy |
Image description: The EU energy label for the FABER TCH04 SS16A 741 cooker hood, displaying its energy efficiency class D, annual energy consumption of 57 kWh/annum, and noise level of 67 dB.
For detailed product information, including the product fiche, refer to the EU EPREL database: https://eprel.ec.europa.eu/qr/111119
Warranty and Customer Support
Warranty Information
This product is covered by a manufacturer's warranty. For specific details regarding warranty terms and conditions, including duration and coverage, please refer to the documentation included with your purchase or contact FABER customer service directly. In case of a defective or damaged product, please consult the seller or FABER customer support for assistance.
Returns Policy
If you wish to return a product within 30 days of receipt because you have changed your mind, please consult the seller's return policy for specific instructions and conditions.
Contact Information
- Manufacturer: FABER S.p.A.
- Address: Viale XIII Luglio 160, 60044 Fabriano (An), Italy
- Customer Service Email: david.caracini@faberspa.com
- Customer Service Phone: (+39) 0732691282
- FABER Official Store (on Amazon): Visit Store
For further assistance or inquiries, please utilize the provided contact channels.
