Behringer FEEDBACK DESTROYER FBQ1000 User Manual

1. Introduction

The Behringer FEEDBACK DESTROYER FBQ1000 is a high-performance 2-channel feedback destroyer and parametric equalizer designed for professional audio applications. This device automatically detects and suppresses acoustic feedback, ensuring clear and stable sound reinforcement.

Key features include:

• Ultra-fast response for immediate feedback suppression.
• Integrated parametric EQ functionality.
• Automatic mode that continuously monitors the audio mix and sets filters.
• Ultra-Narrow FBQ filters for effective feedback suppression while maintaining high sonic quality.

2. Product Overview

Familiarize yourself with the front and rear panels of the FBQ1000.

Figure 1: Front panel view of the Behringer FBQ1000, showing controls and display.

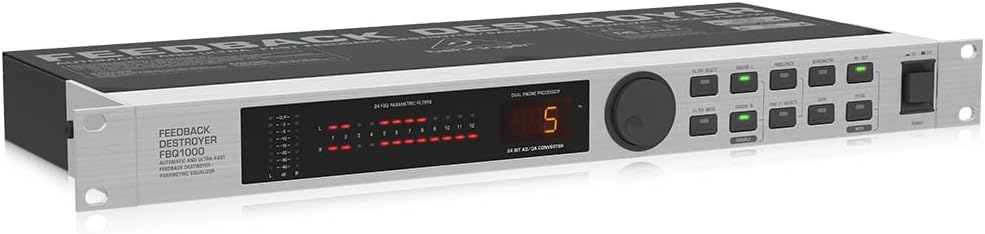

Figure 2: Angled view of the Behringer FBQ1000, illustrating its rack-mountable design.

3. Setup and Connections

Proper setup is crucial for optimal performance of your FBQ1000. Ensure all connections are secure before powering on the device.

1. Power Connection: Connect the supplied power cable to the FBQ1000 and then to a suitable AC power outlet.
2. Audio Input: Connect the audio source (e.g., mixer output, microphone preamplifier) to the FBQ1000's input connectors using balanced XLR or 1/4" TRS cables. The FBQ1000 features two independent channels.
3. Audio Output: Connect the FBQ1000's output connectors to your amplifier, powered speakers, or subsequent audio processing equipment using balanced XLR or 1/4" TRS cables.
4. Placement: Install the FBQ1000 in a standard 19-inch equipment rack or place it on a stable surface, ensuring adequate ventilation.
5. Initial Power On: After all connections are made, power on your audio system components in the correct sequence (source first, then FBQ1000, then amplifiers/speakers).

4. Operating Instructions

The FBQ1000 offers both automatic and manual modes for feedback suppression and parametric equalization.

4.1 Automatic Feedback Suppression

In automatic mode, the FBQ1000 continuously monitors the audio signal and identifies feedback frequencies. It then applies ultra-narrow notch filters to eliminate the feedback without significantly affecting the overall sound quality.

• Engaging Auto Mode: Refer to the device's front panel controls for selecting the automatic operating mode. This typically involves pressing a dedicated 'Auto' button or selecting a preset that utilizes automatic detection.
• Filter Deployment: The unit will automatically detect and apply up to 24 FBQ filters across its two channels. Indicators on the front panel will show which filters are active.
• Continuous Monitoring: The FBQ1000 adapts to changing acoustic environments, ensuring ongoing feedback protection.

4.2 Parametric Equalization

Beyond feedback suppression, the FBQ1000 can function as a parametric equalizer, allowing precise control over frequency, bandwidth, and gain for sound shaping.

• Manual Control: Use the front panel controls (e.g., 'Frequency', 'Bandwidth', 'Gain' knobs/buttons) to manually adjust EQ parameters for specific frequencies.
• Filter Selection: Select the desired filter number to adjust its parameters.
• Storing Settings: Custom EQ settings can often be stored as user presets for recall. Consult the full user manual for detailed instructions on saving and recalling presets.

5. Maintenance

To ensure the longevity and reliable operation of your Behringer FBQ1000, follow these maintenance guidelines:

• Cleaning: Regularly wipe the exterior of the unit with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
• Ventilation: Ensure that the ventilation openings are clear and unobstructed to prevent overheating.
• Storage: When not in use for extended periods, store the unit in a cool, dry place, away from direct sunlight and extreme temperatures.
• Cable Inspection: Periodically check all audio and power cables for signs of wear or damage. Replace any faulty cables immediately.

6. Troubleshooting

If you encounter issues with your FBQ1000, refer to the following common troubleshooting steps:

• No Power:
  • Check if the power cable is securely connected to both the unit and the power outlet.
  • Verify that the power outlet is functional.
  • Ensure the power switch on the FBQ1000 is in the 'ON' position.
• No Audio Output:
  • Confirm that the audio input cables are correctly connected and the source is active.
  • Check the audio output cables connecting the FBQ1000 to your amplifier/speakers.
  • Ensure the FBQ1000 is not in bypass mode (if applicable) and that its output level is appropriately set.
  • Verify that all connected devices (mixer, amplifier) are powered on and functioning correctly.
• Feedback Still Occurs:
  • Ensure the FBQ1000 is in an active feedback suppression mode (e.g., Auto mode).
  • Check the input gain levels to ensure they are not excessively high, which can overwhelm the unit.
  • Verify that the unit's filters are being deployed and indicated on the display.
  • Consider the acoustic environment; extreme conditions may require additional measures.
• Unwanted Sound Alteration:
  • If using manual parametric EQ, review your settings for frequency, bandwidth, and gain.
  • In automatic mode, ensure the unit is not over-filtering. Some modes allow for adjustment of filter aggressiveness.

For more detailed troubleshooting, please refer to the comprehensive user manual available for download from the Behringer website.

7. Specifications

8. Warranty and Support

Behringer products are designed for reliability and performance. For detailed warranty information, please refer to the warranty card included with your product or visit the official Behringer website.

Additional protection plans may be available for purchase, offering extended coverage beyond the standard manufacturer's warranty.

For technical support, service, or to download the complete user manual (PDF), please visit the Behringer support section on their official website. The full user manual provides in-depth information on advanced features, MIDI implementation, and detailed troubleshooting.

You can find the official user manual here.
