Motorcraft KM5076 Hose Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, function, maintenance, and troubleshooting of the Motorcraft KM5076 Hose. Please read these instructions carefully before proceeding with any installation or maintenance to ensure safe and effective use of the product.

2. Product Overview

The Motorcraft KM5076 Hose is a replacement component designed for automotive cooling systems. It is manufactured from durable rubber to withstand the temperatures and pressures within an engine's cooling circuit, facilitating the flow of coolant. This hose is a direct replacement part, ensuring compatibility with specific vehicle applications.

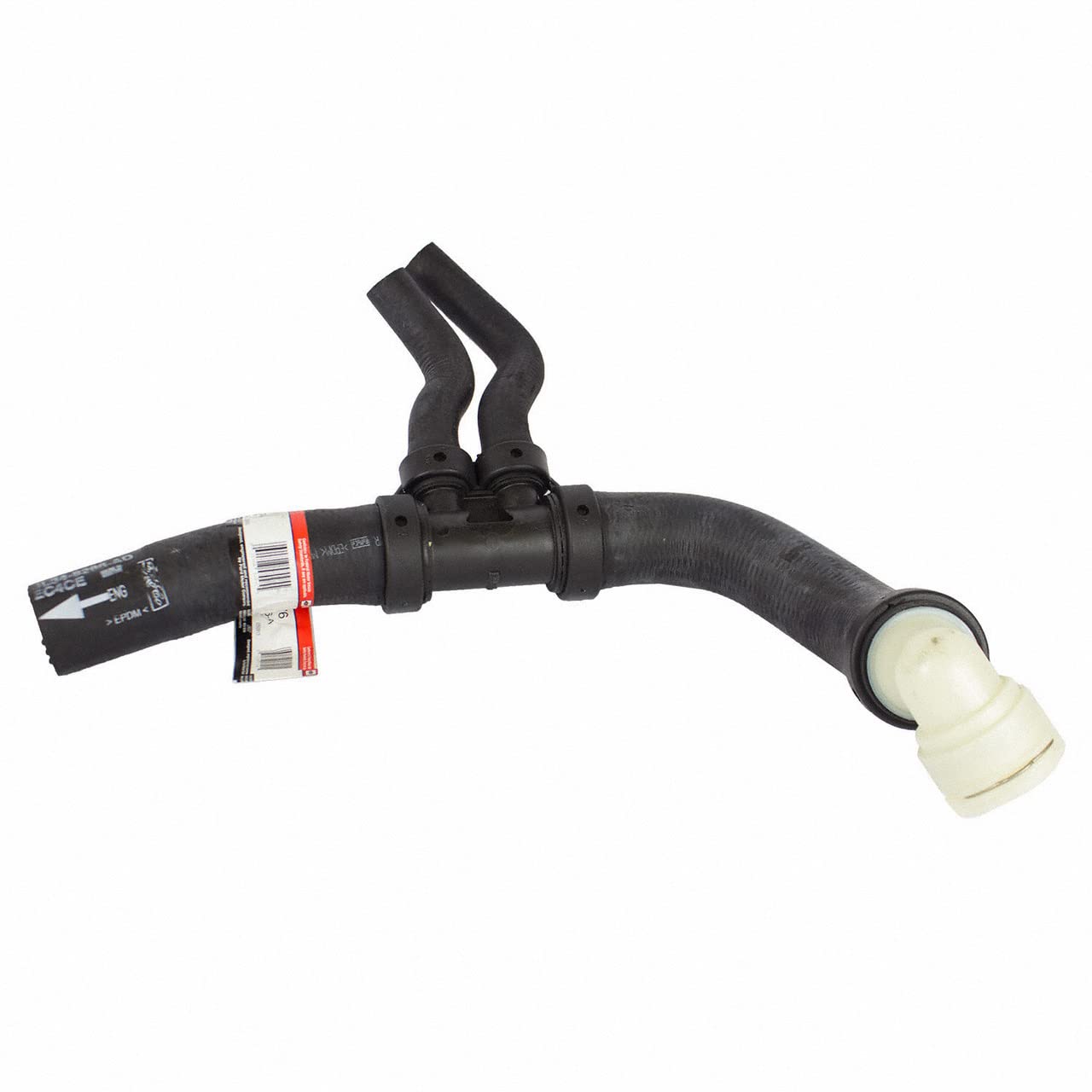

Image 1: Motorcraft KM5076 Hose. This image displays the product, a black rubber hose, typically used in an automotive cooling system.

2.1 What's in the Box

• 1 x Motorcraft KM5076 Hose

3. Safety Information

• Always ensure the engine is completely cool before working on the cooling system to prevent burns from hot coolant or engine components.
• Wear appropriate personal protective equipment, including safety glasses and gloves.
• Coolant is toxic. Handle with care and dispose of used coolant responsibly according to local regulations.
• Ensure the vehicle is securely supported on a level surface if lifting is required.
• Refer to your vehicle's service manual for specific instructions and torque specifications.

4. Installation

The Motorcraft KM5076 Hose is designed for specific vehicle applications. Verify that this part number is correct for your vehicle's make, model, and year before beginning installation. Some users have reported fitment issues with certain vehicle models (e.g., 2017 Ford Expedition), so careful verification is crucial.

4.1 Required Tools

• Pliers or hose clamp removal tool
• Drain pan for coolant
• New coolant (if draining system)
• Rag or shop towels

4.2 Installation Steps

1. Prepare Vehicle: Ensure the engine is cool. Park the vehicle on a level surface and engage the parking brake.
2. Drain Coolant: Place a drain pan under the radiator drain cock or lower radiator hose. Open the drain cock or carefully remove the lower radiator hose to drain the coolant. Collect all coolant for proper disposal.
3. Locate and Remove Old Hose: Identify the hose to be replaced. Use pliers or a hose clamp tool to loosen the clamps securing the old hose to its connections (e.g., radiator, engine block, thermostat housing). Twist and pull the old hose off the fittings.
4. Clean Connections: Inspect the connection points for any debris, corrosion, or old hose residue. Clean them thoroughly to ensure a good seal with the new hose.
5. Install New Hose: Slide new hose clamps onto the new Motorcraft KM5076 Hose. Carefully push the new hose onto the connection points, ensuring it is fully seated. Position the clamps over the connection points and tighten them securely, but do not overtighten.
6. Refill Coolant: Close the radiator drain cock (if opened). Refill the cooling system with the appropriate type and amount of coolant as specified by your vehicle manufacturer.
7. Bleed Air: Start the engine and allow it to reach operating temperature with the heater on full. Monitor the coolant level and add more as needed to remove any trapped air from the system. Look for bubbles in the coolant reservoir.
8. Check for Leaks: After the engine has run for a while and cooled down, inspect all connections for any signs of leaks. Retighten clamps if necessary.

5. Operation and Function

The Motorcraft KM5076 Hose functions as a critical conduit within your vehicle's cooling system. Its purpose is to transport coolant between various engine components, such as the radiator, engine block, and thermostat housing. This continuous circulation of coolant is essential for regulating engine temperature, preventing overheating, and maintaining optimal operating conditions.

Once installed, the hose operates passively, facilitating fluid transfer. No user interaction is required for its daily function beyond proper installation and periodic inspection.

6. Maintenance and Inspection

Regular inspection of your Motorcraft KM5076 Hose, along with other cooling system components, is vital for vehicle reliability and longevity. Perform these checks periodically, ideally during routine oil changes or vehicle inspections:

• Visual Inspection: Look for any signs of wear, such as cracks, bulges, fraying, or hardening of the rubber. A healthy hose should feel firm but pliable.
• Leak Detection: Check for any coolant leaks around the hose connections or along the length of the hose. White or colored residue can indicate a slow leak.
• Clamp Security: Ensure that all hose clamps are tight and secure. Loose clamps can lead to leaks.
• Coolant Level: Regularly check the coolant level in the reservoir and radiator (when cool). A consistently low level without visible leaks may indicate a problem elsewhere in the system.

If any signs of damage or wear are observed, the hose should be replaced immediately to prevent cooling system failure and potential engine damage.

7. Troubleshooting

Issues related to a cooling system hose typically manifest as leaks or symptoms of engine overheating.

7.1 Common Problems and Solutions

8. Specifications

• Brand: Motorcraft
• Model: KM5076
• Material: Rubber
• Color: Black
• Product Dimensions: 18.4 inches (L) x 2.5 inches (W) / 46.74 Centimeters (L)
• Item Weight: 0.01 Ounces
• UPC: 031508570955
• Manufacturer: Motorcraft
• Country of Origin: Mexico

9. Warranty and Support

For warranty information regarding the Motorcraft KM5076 Hose, please refer to the official Motorcraft website or contact your authorized Motorcraft dealer or the original point of purchase. Warranty terms and conditions may vary.

For technical support or further assistance, please contact Motorcraft customer service through their official channels.
