Riobel 401-043 Volume Control Cartridge Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Riobel 401-043 ¾ inch volume control cartridge. This component is designed to regulate water flow in compatible Riobel faucet systems. Please read all instructions carefully before beginning installation to ensure proper function and safety.

Safety Information

Always observe the following safety precautions during installation and maintenance:

• Turn off water supply: Before starting any work, ensure the main water supply to the faucet is completely shut off.
• Wear protective gear: Use appropriate personal protective equipment, such as safety glasses, to prevent injury.
• Depressurize lines: After turning off the water, open the faucet to relieve any remaining water pressure.
• Professional assistance: If you are unsure about any step, consult a qualified plumber.
• Handle with care: The cartridge contains delicate components; avoid dropping or forcing it.

Package Contents

Verify that all components are present before beginning installation:

• One (1) Riobel 401-043 ¾ inch Volume Control Cartridge

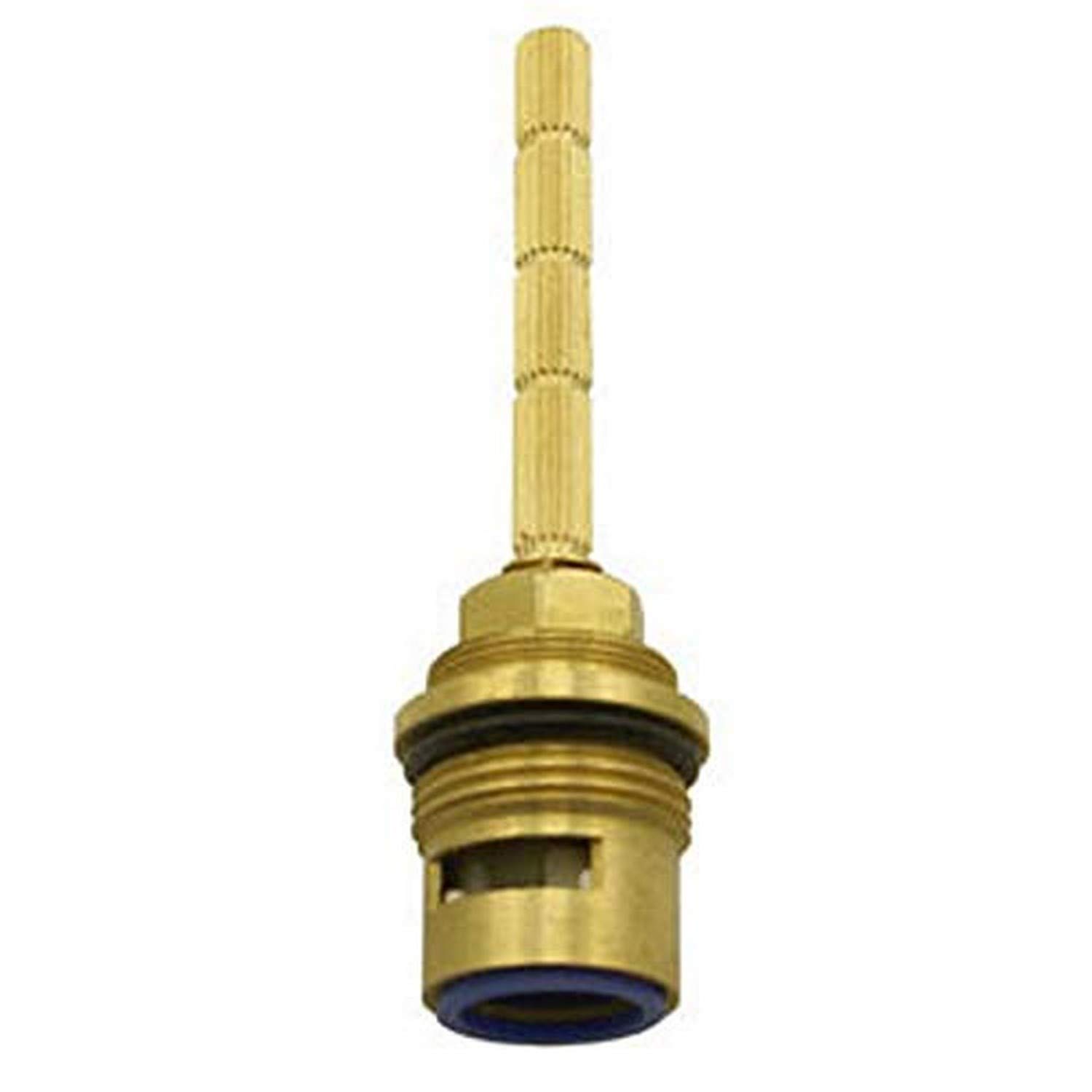

Image: The Riobel 401-043 volume control cartridge, typically gold in color, featuring its cylindrical body and connection points. This image shows the complete unit as it would appear out of the packaging.

Setup and Installation

Follow these steps to replace or install the Riobel 401-043 volume control cartridge:

1. Prepare the Work Area: Ensure the main water supply to the faucet is turned off. Open the faucet handle to drain any remaining water and relieve pressure. Place a towel or cloth in the sink basin to catch any drips and prevent small parts from falling.
2. Remove Faucet Handle: Depending on your specific Riobel faucet model, you may need to remove a decorative cap or screw to access the handle. Use an appropriate screwdriver or Allen key to loosen and remove the handle.
3. Access the Cartridge: Once the handle is removed, you will typically see a retaining nut, collar, or clip holding the existing cartridge in place. Carefully remove this retaining component. Some models may require a wrench or pliers.
4. Remove Old Cartridge: Gently pull the old cartridge straight out of the faucet body. If it is stuck, a slight twisting motion may help, but avoid excessive force. Note the orientation of the old cartridge for reference.
5. Inspect Faucet Body: Clean any debris or mineral deposits from the faucet body where the cartridge sits. Ensure the area is clear for the new cartridge.
6. Install New Cartridge: Insert the new Riobel 401-043 volume control cartridge into the faucet body. Ensure it is seated correctly and aligned with any notches or pins in the faucet body. The cartridge should slide in smoothly without excessive force.
7. Secure Cartridge: Reinstall the retaining nut, collar, or clip that holds the cartridge in place. Tighten it securely, but do not overtighten, as this can damage the cartridge or faucet body.
8. Reinstall Faucet Handle: Place the faucet handle back onto the cartridge stem and secure it with the screw or cap previously removed.
9. Restore Water Supply: Slowly turn the main water supply back on. Check for any leaks around the faucet base and connections.
10. Test Operation: Operate the faucet handle to ensure proper water flow control.

Operation

Once installed, the Riobel 401-043 volume control cartridge functions as the primary mechanism for adjusting the water flow rate through your faucet. The faucet handle, connected to the cartridge, allows you to increase or decrease the volume of water dispensed. Rotate the handle to achieve the desired flow. This cartridge is specifically designed for volume control and does not regulate temperature.

Maintenance

The Riobel 401-043 volume control cartridge is designed for durability and requires minimal maintenance. However, periodic inspection and care can extend its lifespan and ensure optimal performance:

• Regular Cleaning: Clean the exterior of your faucet regularly with a soft cloth and mild soap to prevent mineral buildup that could affect handle operation. Avoid abrasive cleaners.
• Leak Checks: Periodically check for any signs of leaks around the faucet base or handle. Address any leaks promptly to prevent water damage and further issues.
• Cartridge Replacement: If you notice a significant decrease in water flow, difficulty in adjusting volume, or persistent leaks from the handle area, the cartridge may need replacement. Refer to the "Setup and Installation" section for replacement procedures.

Troubleshooting

If you encounter issues with your Riobel 401-043 volume control cartridge, refer to the following common problems and solutions:

Specifications

Warranty and Support

For specific warranty information regarding your Riobel 401-043 volume control cartridge, please refer to the documentation provided with your original faucet purchase or visit the official Riobel website. For technical support, replacement parts, or further assistance, please contact Riobel customer service directly. Contact details can typically be found on the manufacturer's website or in your faucet's original manual.
